Specifications
Rated voltage 220VAC , 50Hzequipment load < 300W
static power <0.5W
Two-way communication up time < 2s
Features:
l Replace conventional switches , replacing mechanical buttons with touch screen , longer life.
l LED backlight touch buttons for switch control,address code of lights is clear to see.
l Assorted many colors available so that to personalized the product.Gorgeously appearance is right down your decoration.
l The words displayed on the panel could be change according to customer’s require.
l Bidirectional communication by power line in high speed with the feedback function
l Can be installed in any 86 -style junction box , socket panel ; ultra-thin design .Dimensions : 86X86X39mm
l Simple setup, six seconds to complete the study; equipped with powerful noise suppression circuit.
l Touch switch control Fluorescent Lamp respond all ON & all OFF;touch switch control appliance only respond all OFF.
Technical Specifications:
l Rated voltage 220VAC ± 10%, 50Hz ;equipment load ≤ 1000W
l static power ≤0.5W ;ambient temperature: -10~50°C
l Two-way communication up time ≤ 2s
Usage: You can control light or appliance through the following control methods after address setup.
1 . After connected to the wires, to realize local control.
(1). Press " ON": the light/appliance will be open.At the same time the LED indicator light of “ON” will lighted and the color of the words displayed on the panel is blue . The LED indicator light will go out of itself without any operation in 10s.
(2)Press “OFF”: the light/appliance will be closed.At the same time the LED indicator light of “OFF” will lighted and the color of the words displayed on the panel is red . The LED indicator light will go out of itself without any operation in 10s.
2. Any high-speed bidirectional power line controller can control the switch, such as : wireless remote control, wall centralized control,telephone controller or intelligent control center etc.

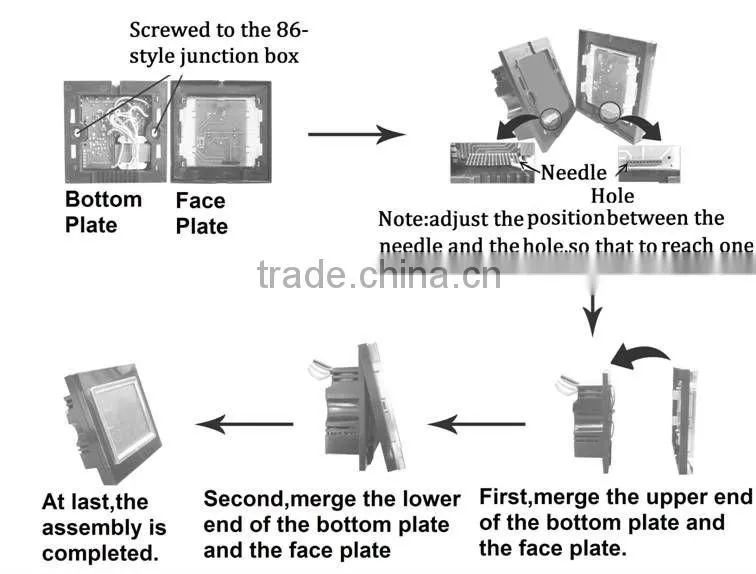

Project Installation:
Connect and install it by the professional persons as the wiring diagram. Avoid injury to people and products.
l Cut off the power before installation ; according to the label for wiring module.
l Touch switch’s "L"connects with Live wire.
Touch switch’s "N" connects with Neutral wire
