YBN PSA Liquid Nitrogen Generator 99.999% Purity

YBN PSA Liquid Nitrogen Generator 99.999% Purity thumbnail-1
YBN PSA Liquid Nitrogen Generator 99.999% Purity thumbnail-2
YBN PSA Liquid Nitrogen Generator 99.999% Purity thumbnail-3
YBN PSA Liquid Nitrogen Generator 99.999% Purity photo-1
YBN PSA Liquid Nitrogen Generator 99.999% Purity photo-2
YBN PSA Liquid Nitrogen Generator 99.999% Purity photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
YONGBANG
Contact Supplier Request Quote Chat Now
Zhejiang Yongbang Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name YONGBANG
Model Number YBN
Usage Nitrogen
Voltage 220V single phase 50HZ
Certification CE,ISO 9001:2008
Warranty 1 year
After-sales Service Provided Overseas third-party support available

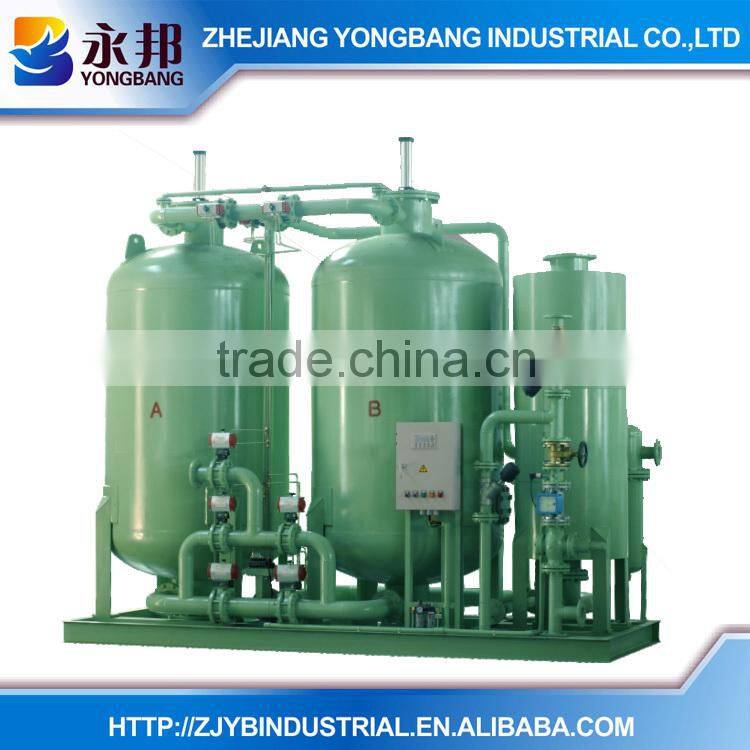

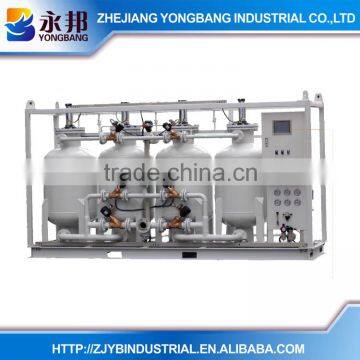

1.Pictures of Industrial PSA Nitrogen Generator



YBN PSA liquid nitrogen generator 99.999% Purity

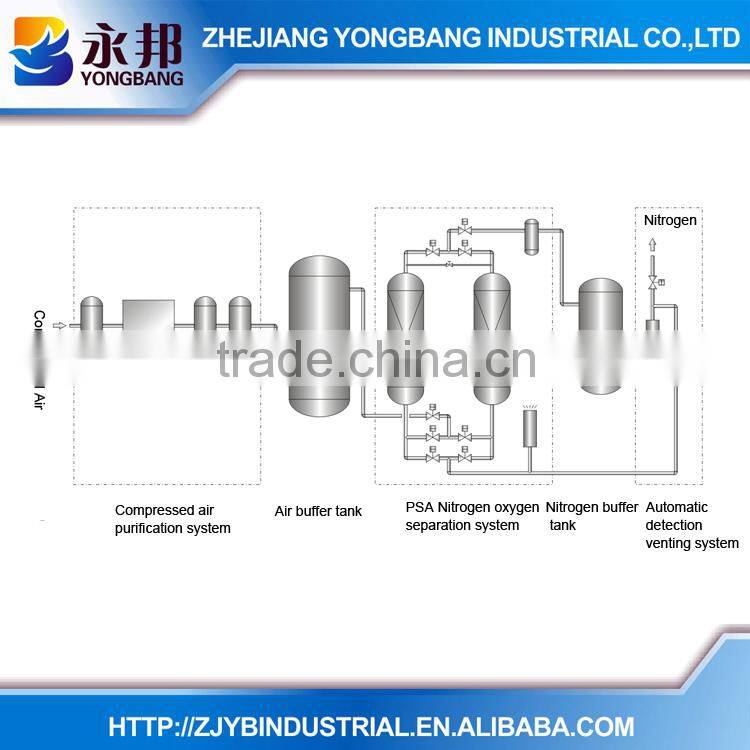

3.Chat Flow of Industrial PSA Nitrogen Generator



YBN PSA liquid nitrogen generator 99.999% Purity

4. Principle of operation of Industrial PSA Nitrogen Generator





YBN PSA nitrogen generating equipment use the high quality carbon molecular sieve as adsorbent, and utilize PSA principle, acquiring nitrogen gas from compressed air directly.
1. Under the pressure of certain. Because of kinetic effect, the spread rate of oxygen and nitrogen on carbon molecular sieve has big differenceses. As a great deal of oxygen molecules is adsorbed by carbon molecular sieve, nitrogen molecules enrichs at gaseous phase, so nitrogen and oxygen get separated.
2. As the adsorption capacity of carbon molecular sieve on oxygen changed with the pressure, different pressures have obvious difference, when reduce pressure, it can desorb the oxygen molecule adsorption on carbon molecular sieve, making carbon molecular sieve regeneration, like this make it recycling use.
3. Choose two adsorption tower processes, one tower adsorption then produce nitrogen, the other desorption regeneration, the two circulation alternate, continuously output high quality of nitrogen.

5.Technical characteristics of Industrial PSA Nitrogen Generator

1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out, it can not cause of molecular sieve pulverization phenomenon. Equipped with the limit settlement alarm system, when it reach the floor level of journey, the equipment will sound and light alarm by itself.
3. Configureed DCS remote control system interface, it can monitor the system operate condition through the computer.
4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6. Reasonable structure design make the transportation, sling and installation very convenient.
7. Selecting the safe and reliable control components, so the equipment can run stable and reliable, it also has various fault alarm.
8. It operates easily, runs stably, and has a high degree of automation, can realize no one operates.

6.Technical data of Industrial PSA Oxygen Generator

nitrogen output: 5~200Nm3/h
nitrogenPurity: 95~99.999%
nitrogen Pressure: 0.1~0.7Mpa
Dew point: -40ºC or -60ºC





7.Technical Parameters of Industrial PSA Nitrogen Generator

YBN Standard Nitrogen Equipment(99.5%N2)
Item No N2Output
(Nm³/h)		 Effective Air Consumption
(Nm³/min)		 Air Purification System Inlet&Outlet Drift Diameter(mm) Structure
YBN-5 5 0.24 KJ-0.5 DN15 DN15 A
YBN-10 10 0.47 KJ-0.5 DN15 DN15
YBN-20 20 0.94 KJ-1 DN25 DN25
YBN-30 30 1.41 KJ-1.6 DN25 DN25 B
YBN-40 40 1.88 KJ-3 DN32 DN25
YBN-60 60 2082 KJ-3 DN32 DN40
YBN-80 80 3.76 KJ-6 DN40 DN40
YBN-100 100 4.7 KJ-6 DN40 DN40
YBN-120 120 5.64 KJ-6 DN40 DN50
YBN-150 150 7.05 KJ-10 DN50 DN50
YBN-200 200 9.4 KJ-10 DN50 DN50
YBN-300 300 14.1 KJ-20 DN65 DN50
YBN-400 400 18.8 KJ-20 DN65 DN50
YBN-600 600 28.2 KJ-30 DN80 DN50
YBN-800 800 37.6 KJ-40 DN100 DN30
YBN-1000 1000 47 KJ-50 DN100 DN80 C
YBN-1200 1200 56.4 KJ-60 DN125 DN80
YBN-1500 1500 70.5 KJ-80 DN150 DN80
YBN-2000 2000 94 KJ-100 DN150 DN80
YBN-2500 2500 117.5 KJ-120 DN150 DN100
YBN-D Nitrogen Equipment(98%N2)
YBN-10D 10 0.37 KJ-0.5 DN15 DN15 A
YBN-20D 20 0.74 KJ-1 DN25 DN25
YBN-30D 30 1.1 KJ-1.6 DN25 DN25
YBN-40D 40 1.47 KJ-1.6 DN25 DN25 B
YBN-60D 60 2.2 KJ-3 DN32 DN40
YBN-80D 80 2.93 KJ-3 DN32 DN40
YBN-100D 100 3.67 KJ-6 DN40 DN40
YBN-120D 120 4.4 KJ-6 DN40 DN50
YBN-150D 150 5.5 KJ-6 DN40 DN50
YBN-200D 200 7.3 KJ-10 DN50 DN50
YBN-300D 300 11 KJ-12 DN50 DN50
YBN-400D 400 14.7 KJ-20 DN65 DN50
YBN-600D 600 22 KJ-30 DN80 DN50
YBN-800D 800 29.3 KJ-30 DN80 DN65
YBN-1000D 1000 36.7 KJ-40 DN100 DN80
YBN-1200D 1200 44 KJ-50 DN100 DN80
YBN-1500D 1500 55 KJ-60 DN125 DN80 C
YBN-2000D 2000 73.3 KJ-80 DN150 DN80
YBN-2500D 2500 91.7 KJ-100 DN150 DN100
YBN-C Nitrogen Equipment(99%N2)
YBN-10C 10 0.41 KJ-0.5 DN15 DN15 A
YBN-20C 20 0.83 KJ-1 DN25 DN25
YBN-30C 30 1.24 KJ-1.6 DN25 DN25
YBN-40C 40 1.65 KJ-3 DN32 DN25 B
YBN-50C 50 2.07 KJ-3 DN32 DN40
YBN-80C 80 3.31 KJ-3 DN40 DN40
YBN-100C 100 4.13 KJ-6 DN40 DN40
YBN-120C 120 4.96 KJ-6 DN40 DN50
YBN-150C 150 6.2 KJ-6 DN50 DN50
YBN-200C 200 8.27 KJ-10 DN50 DN50
YBN-300C 300 12.4 KJ-10 DN65 DN50
YBN-400C 400 16.5 KJ-20 DN65 DN50
YBN-600C 600 24.8 KJ-20 DN80 DN50
YBN-800C 800 33.1 KJ-30 DN100 DN65
YBN-1000C 1000 41.3 KJ-40 DN100 DN80
YBN-1200C 1200 49.6 KJ-50 DN125 DN80 C
YBN-1500C 1500 62 KJ-70 DN125 DN80
YBN-2000C 2000 82.7 KJ-90 DN150 DN80
YBN-2500C 2500 103.3 KJ-100 DN150 DN100
YBN-B Nitrogen Equipment(99.9%N2)
YBN-5B 5 0.31 KJ-0.5 DN15 DN15 A
YBN-10B 10 0.62 KJ-1 DN25 DN15
YBN-20B 20 1.24 KJ-1.6 DN25 DN25
YBN-30B 30 1.86 KJ-3 DN32 DN25 B
YBN-40B 40 2.48 KJ-3 DN32 DN25
YBN-60B 60 3.72 KJ-6 DN40 DN40
YBN-80B 80 4.96 KJ-6 DN40 DN40
YBN-100B 100 6.2 KJ-10 DN50 DN40
YBN-120B 120 7.44 KJ-10 DN50 DN50
YBN-150B 150 9.3 KJ-10 DN50 DN50
YBN-200B 200 12.4 KJ-20 DN65 DN50
YBN-300B 300 18.6 KJ-20 DN65 DN50
YBN-400B 400 24.8 KJ-30 DN80 DN50
YBN-600B 600 37.2 KJ-40 DN100 DN50 C
YBN-800B 800 49.6 KJ-50 DN100 DN65
YBN-1000B 1000 62 KJ-70 DN125 DN80
YBN-1200B 1200 74.4 KJ-80 DN150 DN80
YBN-1500B 1500 93 KJ-100 DN150 DN80
YBN-A Nitrogen Equipment(99.99%N2)
YBN-5A 5 0.39 KJ-0.5 DN15 DN15 A
YBN-8A 8 0.62 KJ-1 DN25 DN15
YBN-12A 12 0.93 KJ-1 DN25 DN25
YBN-20A 20 1.54 KJ-1.6 DN25 DN25 B
YBN-30A 30 2.32 KJ-3 DN32 DN25
YBN-40A 40 3.09 KJ-6 DN40 DN25
YBN-60A 60 4.63 KJ-6 DN40 DN40
YBN-80A 80 6.17 KJ-10 DN50 DN40
YBN-100A 100 7.72 KJ-10 DN50 DN40
YBN-120A 120 9.26 KJ-10 DN50 DN50
YBN-140A 140 10.8 KJ-12 DN50 DN50
YBN-160A 160 12.3 KJ-20 DN65 DN50
YBN-180A 180 13.9 KJ-20 DN65 DN50
YBN-200A 200 15.4 KJ-20 DN65 DN50
YBN-250A 250 19.3 KJ-20 DN65 DN50
YBN-300A 300 23.2 KJ-30 DN80 DN50 C
YBN-350A 350 27 KJ-30 DN80 DN50
YBN-400A 400 30.9 KJ-40 DN100 DN50
YBN-450A 450 34.7 KJ-40 DN100 DN50
YBN-500A 500 38.6 KJ-40 DN100 DN50
YBN-550A 550 42.4 KJ-50 DN100 DN50
YBN-600A 600 46.3 KJ-50 DN100 DN50
YBN-650A 650 50.2 KJ-60 DN125 DN50
YBN-700A 700 54 KJ-60 DN125 DN65
YBN-H Nitrogen Equipment(99.999%N2)
YBN-5H 5 0.69 KJ-1 DN25 DN15 A
YBN-10H 10 1.39 KJ-1.6 DN25 DN15
YBN-20H 20 2.78 KJ-3 DN32 DN25 B
YBN-30H 30 4.17 KJ-6 DN40 DN25
YBN-40H 40 5.55 KJ-6 DN40 DN25
YBN-50H 50 6.9 KJ-10 DN50 DN40
YBN-60H 60 8.3 KJ-10 DN50 DN40
YBN-80H 80 11.1 KJ-12 DN50 DN40
YBN-100H 100 13.9 KJ-20 DN65 DN40
YBN-150H 150 20.8 KJ-30 DN80 DN50
YBN-200H 200 27.8 KJ-30 DN80 DN50 C
YBN-300H 300 41.7 KJ-50 DN100 DN50







Packaging & Shipping

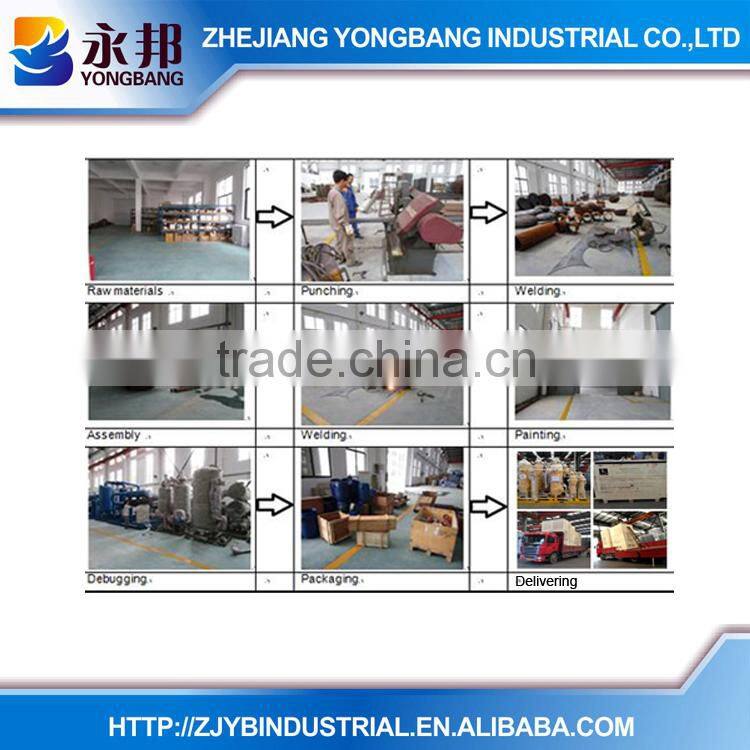

  1.Production Flow



2.Inspection





3.Warehouse

Company Information

1.Company Induction

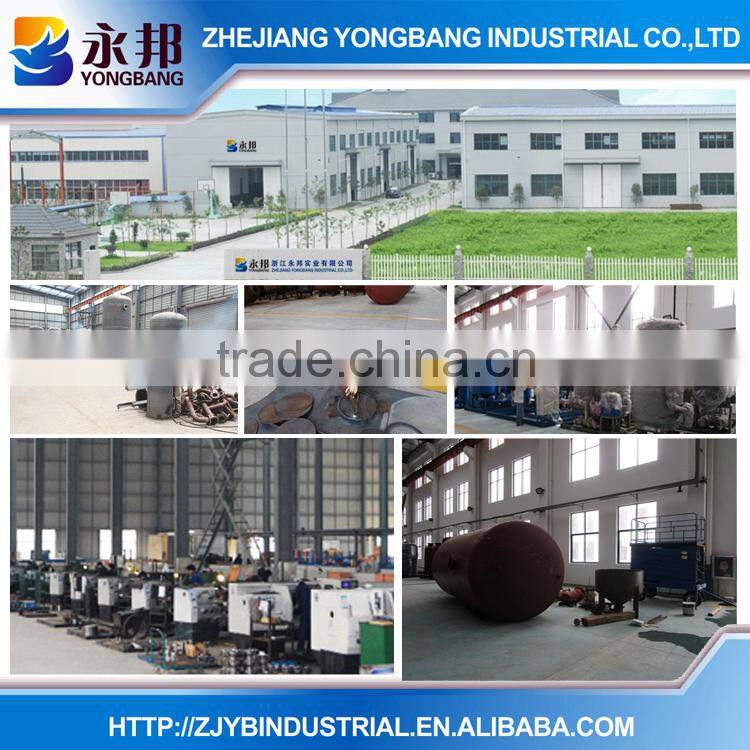

2.Company View

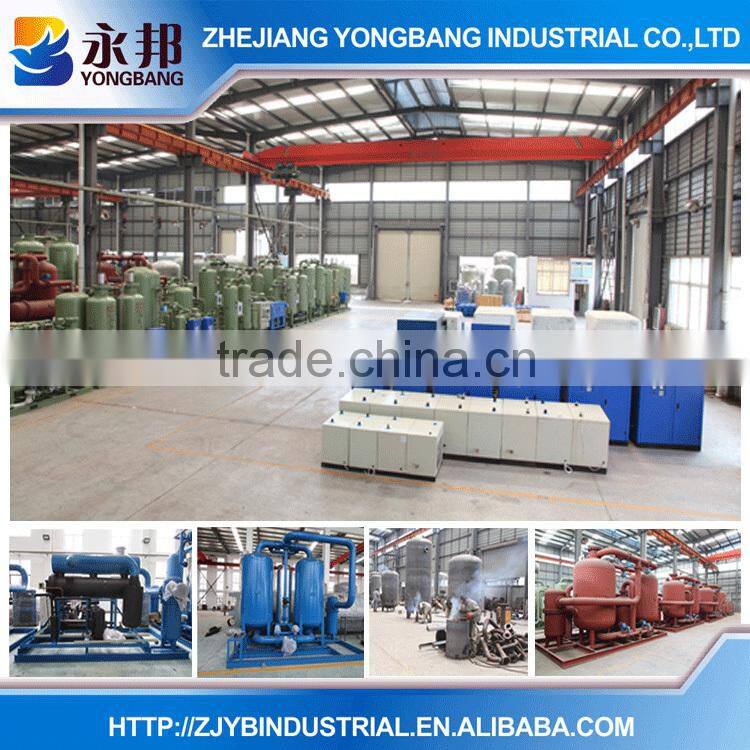

3.Factory View

4.Our Team



FAQ

 YBN PSA liquid nitrogen generator 99.999% Purity
