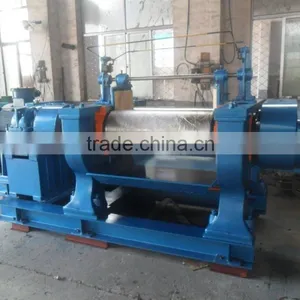

1.Application Of The Equipment
It mainly used for thermal refining ,sheeting ,plasticating and mixing of the rubber.
2.Structure Features
1. The roller is made of alloy chilled cast iron, which the surface stiffness and abrasion resistance is higher than general chilled iron roller, two roller hollow inner cavity spray type, roll surface temperature uniformity.
2. For nylon watts or ball bearing, roller bearing structure of dry oil or thin oil lubrication.
3. Roller adjusting device USES the worm gear and worm drive respectively, options electric adjustment mode, easy operation.
4. The emergency stop device to ensure safe operation.
5. This machine can deserve to glue device, to form a complete set, the user request should be in order.
6.The machine for the whole chassis structure, convenient installation.
3.Main Technical Parameters
Type |
XK-560A |
XK-560B |
XK-560C |
XK-560D |
Working diameter of roller (Front roller) |
φ560mm |
φ550mm |
φ560mm |
φ560mm |
Working diameter of roller(Rear roller) |
φ510mm |
φ550mm |
φ510mm |
φ510mm |
Working length of roller |
1530mm |
1500mm |
1530mm |
1530mm |
Velocity ratio of roller |
1:1.2 |
1:1.22 |
1:1.2 |
1:1.2 |
Front roller Working speed |
27.7m/min |
27.94m/min |
27.87m/min |
27.87m/min |
Rollnip adjustment range |
1~15mm |
1~15mm |
1~15mm |
1~15mm |
Adding rubber once (figuring) |
50~60kg |
50~60kg |
50~60kg |
50~60kg |
|
Reducer Type |
Cylindrical gear reducer ZQ85 |
XK-550B-18100 |
Planetary gear reducer of hard-toothed surface NGW122 |
Reducer of hard-tooth face box ZSY-400 |
Main electric motor Type |
Y315L1-6 |
Y315L2-8 |
Y315L1-8 |
Y315L2-8 |
Power (KW) |
90KW |
110KW |
90KW |
90KW |
Voltage |
440V/60HZ |
440V/60HZ |
440V/60HZ |
440V/60HZ |
Total weight |
About 19.5t |
27t |
About 19.5t |
21t |
|
Dimension (L*W*H) |
6500*2300*2000 |
6500*2300*2000 |
6500*2300*2000 |
6500*2300*2000 |
Price(RMB) |
285000 |
375000 |
295000 |
295000 |
The above price including VAT Qingdao F.O.B.
4.Our Service
The guarantee period is one year;
24 hours technical support;
Offer lifetime service and spare parts;
Technique training is free of charge
5. Our advantages
We are very near from Qingdao Port and the transportation cost can be greatly reduced.
We can design and manufacture standard and non-standard machinery according to your demand.
We have our own factory and you can visit our factory at any time.
Our quotes are vrey objective and have no price difference.
6.Our company
Qingdao Bojia Machinery Manufacturing Co.,Ltd is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group,often communicate with the customers and technology authority departments of rubber industry,constantly to improve and update our products which can meet the requirements of customers:Our company guarantee to provide you excellent pre-market sale and after sale service,timely technology information consulting,accessories and consumable parts supply etc,also can design and manufacture various non-standard products according to users requirements.
Our main products are:Conveying belt molding machine series:Batch off cooling machine series:Cushion cloth renovating machine series:open mixing mill series:Vulcanizing press series:Rubber cutting machine series:Rubber slitting machine series:Logitudinal cutting machine series:Conveyor belt machine series:Other rubber machines:Design and manufacturing of automatic production line.
Bojia machinery company always pursue”quality first,customer first”principle to offer high-quality products and excellent service,welcome new and old customers to visit our company.
If you have any questions,please contact me and welcome to visit our factory.
