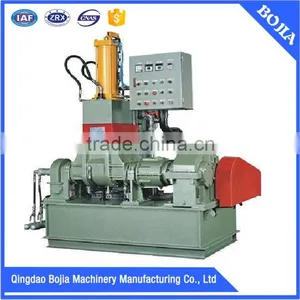

Help CenterPressurized Kneader / Dispersion Kneader / Rubber Kneader
Related Products
-
Latest Technology Banbury Mixer / Internal Mixer / Rubber KneaderUS$ 9,500 - 40,000MOQ: 1 Set -
55L High-tech Internal Mixing Mill / Banbury Mixing MachineUS$ 9,900 - 38,000MOQ: 1 Set
-
High Efficiency Internal Mixing Machine With ISO9000 CertificateUS$ 9,900 - 38,000MOQ: 1 Set
-
Rubber Banbury Mixing Mill / Internal Mixing MachineUS$ 10,000 - 38,000MOQ: 1 Set
-
Complete Rubber Mix Equipments for BanburyUS$ 40,000 - 80,000MOQ: 1 Set
specification
We provide different volume rubber kneader and cooperate with many famous institure such as Qingdao S&T University and Mesnac group.
technical parameter
Internal mixer Model No. |
X(s)N-5L |
X(s)N-20L |
X(s)N-35L |
X(s)N-55L |
X(s)N-75L |
X(s)N-110L
|
Knead total volume(L) |
15 |
45 |
75 |
125 |
180 |
250 |
Working volume(L) |
5 |
20 |
35 |
55 |
75 |
110 |
Front rotor speed( r/min) |
36 |
36 |
36 |
36 |
36 |
30 |
Rear rotor friction r/min |
30 |
30 |
30 |
30 |
30 |
24.5 |
Drive motor Power( KW) |
11 |
37 |
55 |
75 |
110 |
185 |
Turn angle |
110 |
110 |
110 |
110 |
110 |
110 |
Turn motor power (KW) |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
5.5 |
Voltage (V) |
380 |
380 |
380 |
380 |
380 |
380 |
Weight (KG) |
~2100 |
~4500 |
~6300 |
~7100 |
~9500 |
~14200 |
Dimension(M) |
|
|
3150×1900×2880 |
3280×2120×3090 |
3250×2120×3250 |
4075×2712×3580 |
Usage
for rubber plasticize, mixing and mix with accessory ingredient. This kneader can be used with open rubber mixing mil, ruber sheet cooling machine.
Main components
1 Rubber press device: squeeze the rubber material to the kneader room and keep the presure of mixing.
2 Feeding device: for the operature putting material and ingredient to the mixing room.
3 Sealing device: knead the material in the kneader room.
4 End face seal device: avoid rubber material, carben black and ingredient gaving away.
5 Unload and lock device: lower top peg is part of the seal cavity of mixing room, this device discharges the rubber materials in intermission.
6 Pedestal: the fundamental of the kneader machine, stand the whole weight of the machine.

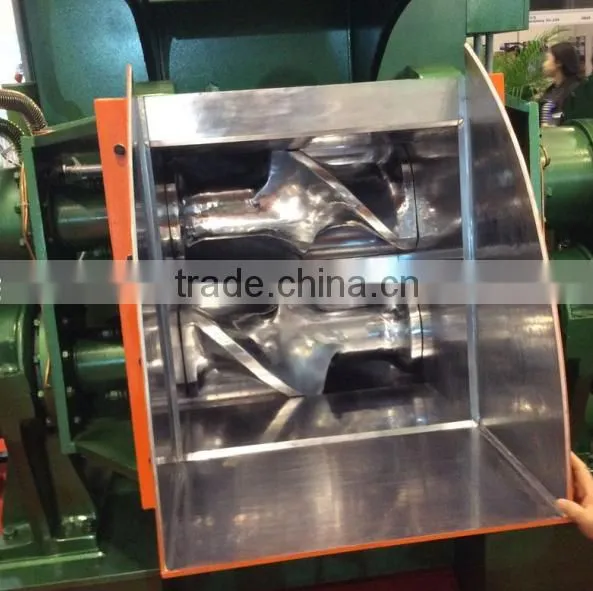

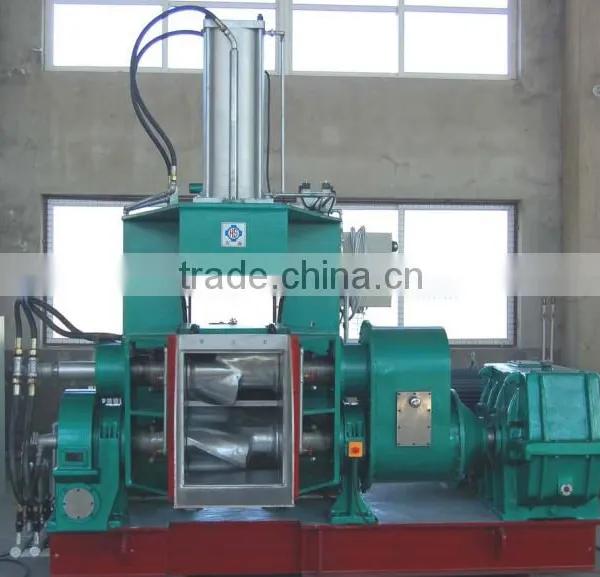

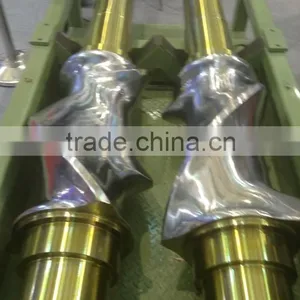

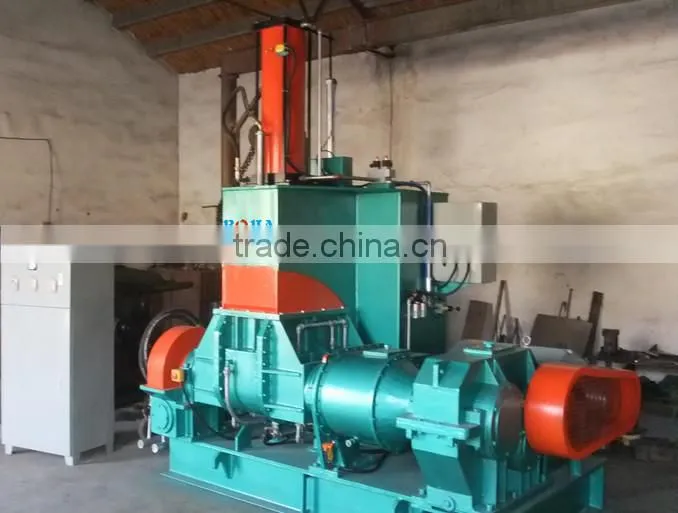

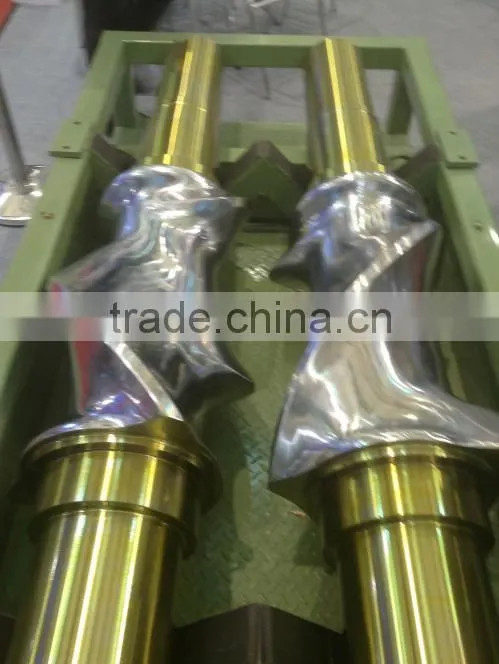

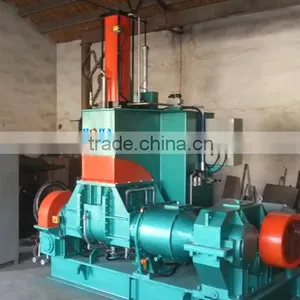

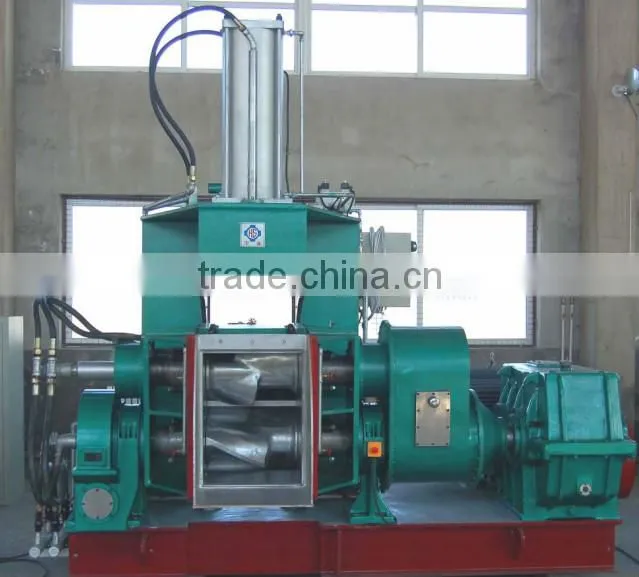

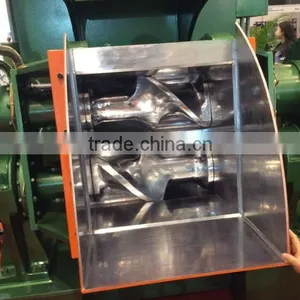

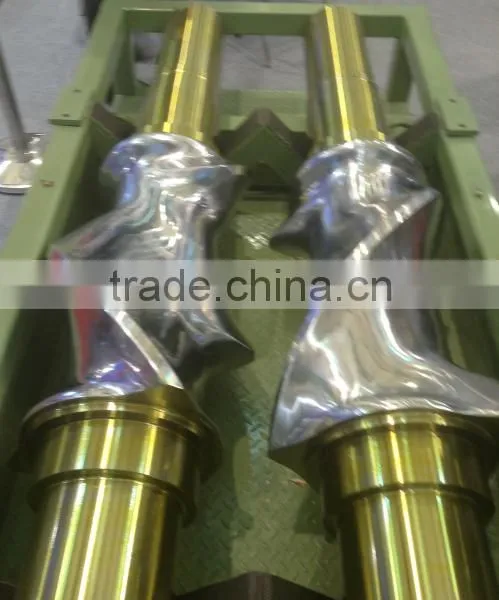

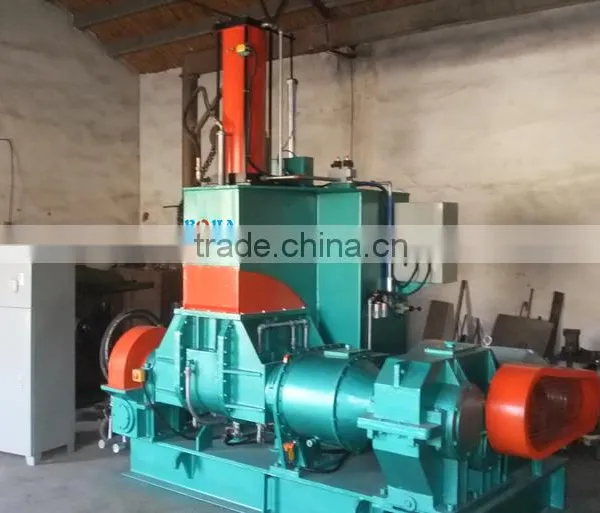

Pictures in details

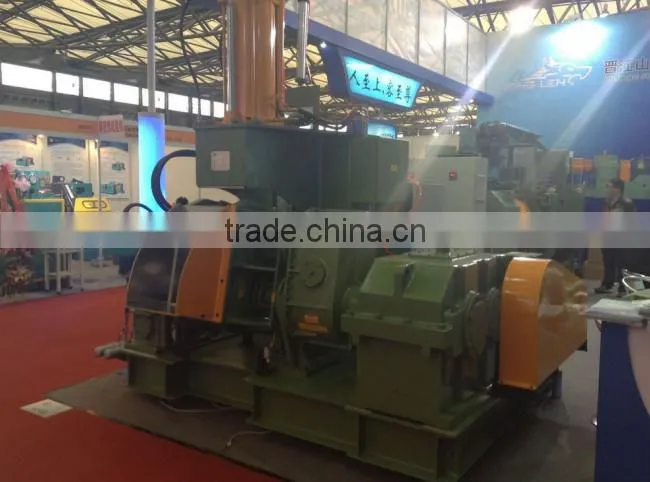

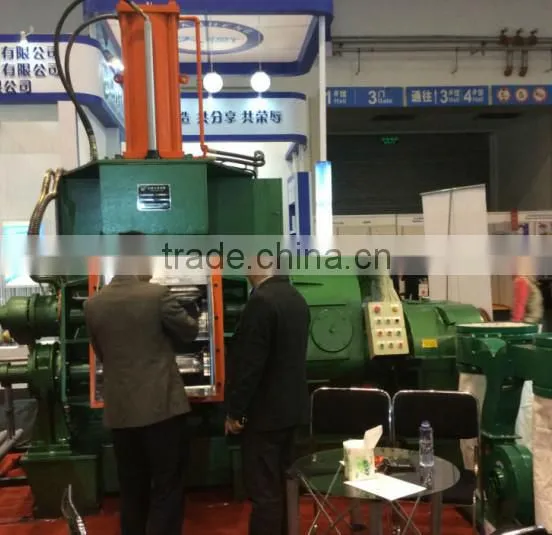

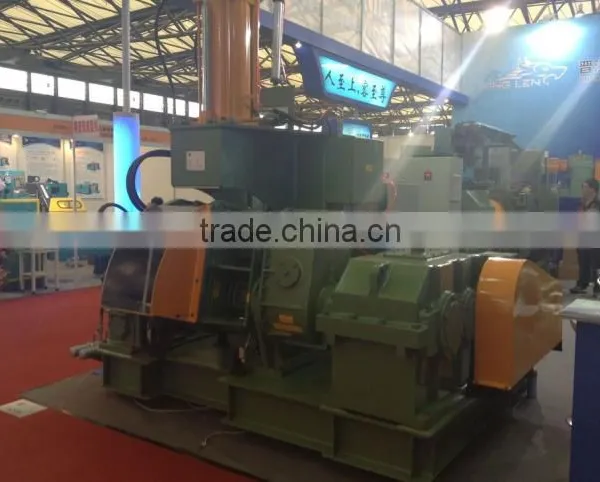

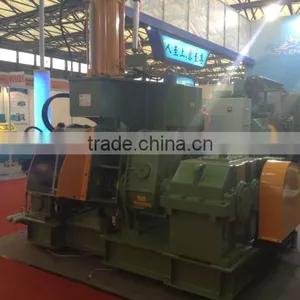

Exhibition
Visitors form all over the world

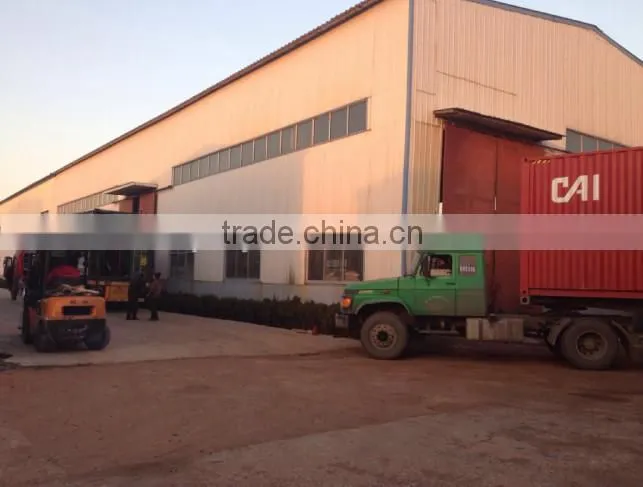

Outside package: wooden cases and standard export container
delivery: 30 days after receiving the deposit. Our company is near Qingdao harbor, so it is very convenient using ecean shipping.
1 Free installation instruction
Customers will enjoy free installation instruction and training for different style. Installation pictures and video will be provided as your requirement freely.
2 24 hour service
You are welcomed to contact us whenever you have a doubt or a question. Our stong technician and engineer team will work out the solution to you within 24 hours.
3 One year warranty
Qingdao Bojia Machinery Manufacturing Co., Ltd changed officially its name from a state-owned machinery company in October 2007, is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group, often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which can meet the requirements of the customers; Our company guarantee to provide you excellent pre-market sale and after-sale service, timely technology information consulting, accessories and consumable parts supply etc, also can design and manufacture various non-standard products according to users’ requirements.
Our main products are: Conveying Belt Molding Machine Series; Batch Off Cooling Machine Series; Cushion Cloth Renovating Machine Series; Open Mixing Mill Series; Vulcanizing Press Series; Rubber Cutting Machine Series; Rubber Slitting Machine Series; Longitudinal Cutting Machine Series; Conveyer Belt Machine Series; Other Rubber Machines; Design and Manufacturing of Automatic Production Line.
Bojia Machinery Company always pursue "quality first, customer first" principle to offer high-quality products and excellent service, welcome new and old customers to visit my company.
