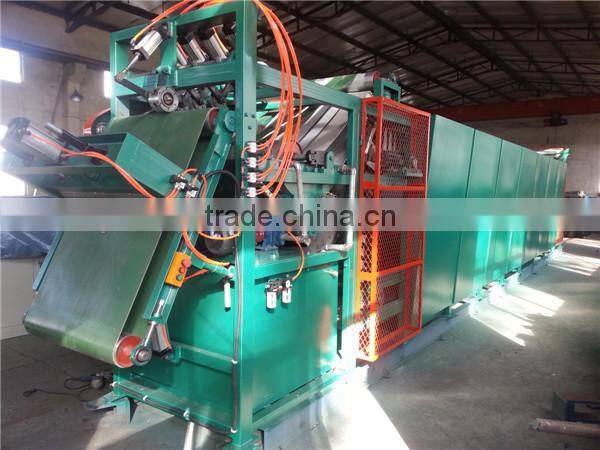

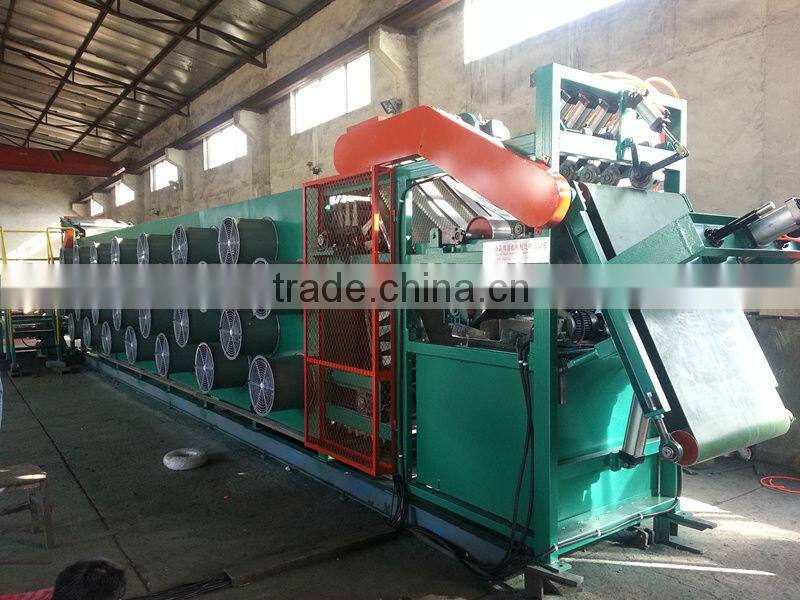

Qingdao Hot Sale Rubber Sheet Cooling Machine With Protection Net

Qingdao hot sale Rubber sheet cooling machine with protection net

Advantage

1. 20 years experience on batch off cooler manufacturing and exporting.
2. Delivery within 40 days.

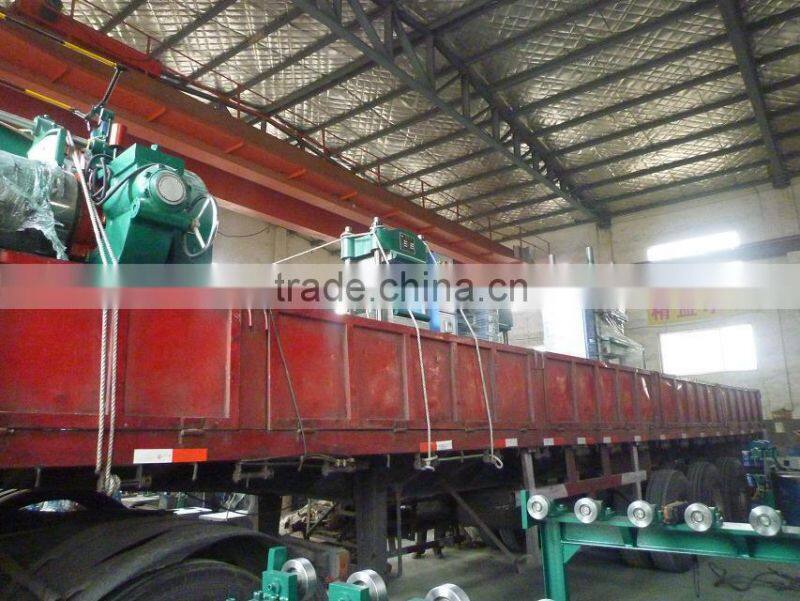

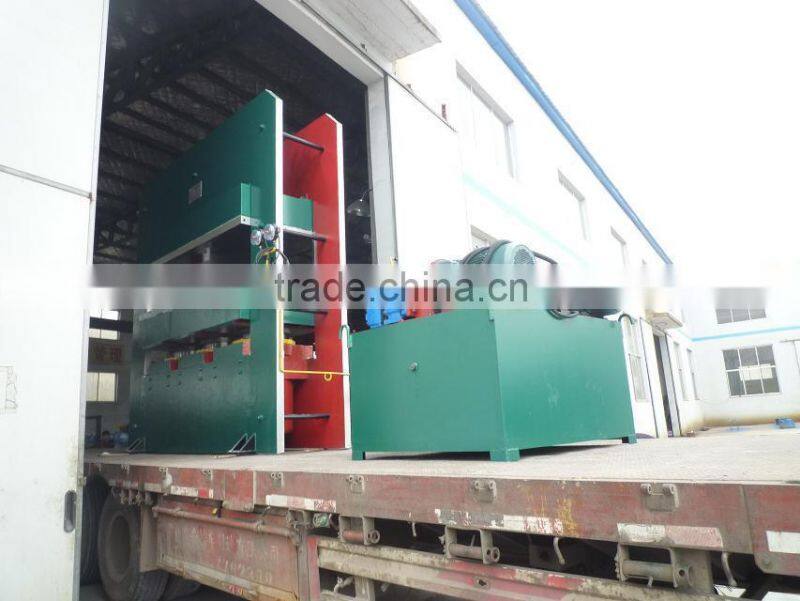

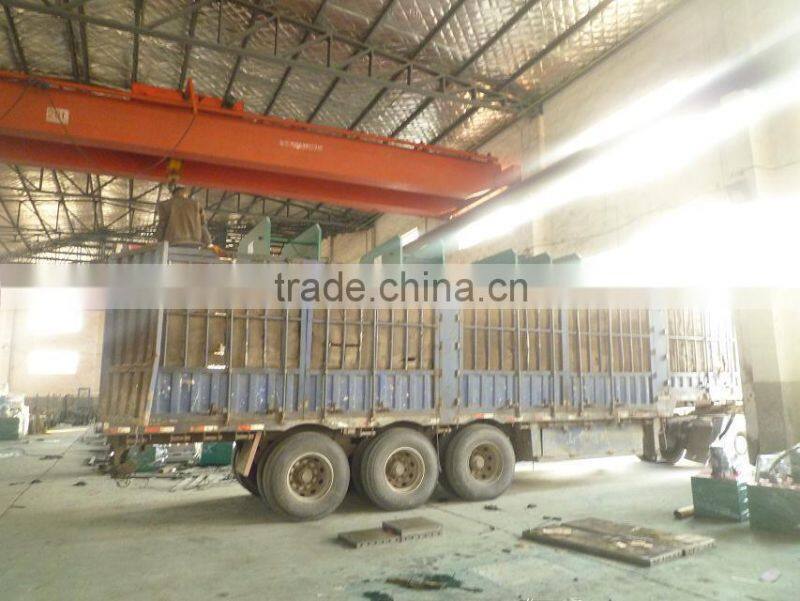

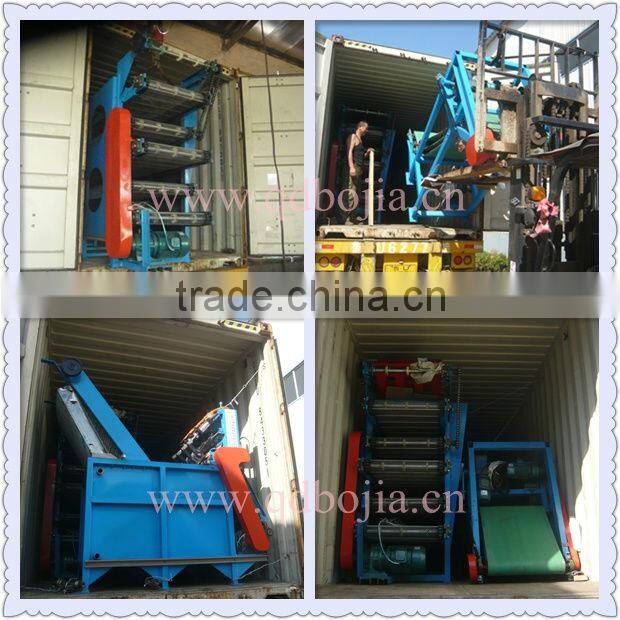

3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 18 continents.
6. One-stop rubber machinery solution in Qingdao BOJIA factory

Technical  parameters

XPGL – 800G

    It can be designed and manufactured non-standard special equipments based on customers’ parameter.

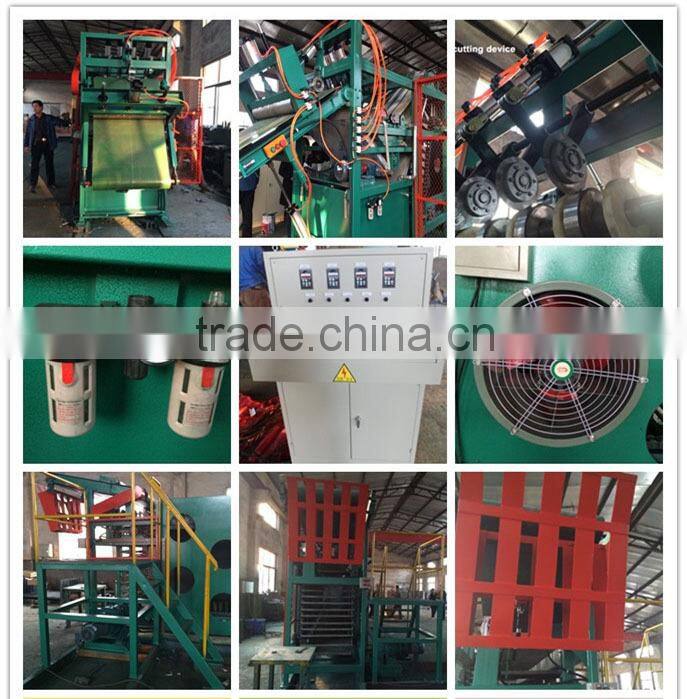

Functions:

1. Front access device control up and down by cylinder, frequency converter to adjust

conveyor belt speed; joint device using a cylinder driven nip roller compression fitting structure, printing device can be replaced any six letters in the 26 letters.

2. The longitudinal cutting device adopts pneumatic control the rise and fall of circular cutting knife, cutting knife under the pressure of cylinder on the cutting roller directly, as the cutting roller rotation form to cut; Cutter with interval gap, in order to make the rubber sheet with connection when cutting; Strip width can be adjustment by cutter spacing.

3. Isolation leaching liquid tank made by 201 stainless steel plate with isolation agent cooling pipes,

4. Front lifting device adopts two non-joint ring conveyor mesh belt gripping delivery way, to convey rubber sheet to hanging rod, won’t decline if with steep rubber sheet; using module can make isolation agent liquid flow back to the isolation box, to prevent the rubber sheet taking much isolating agent to the bellows and affect the cooling effect; The inverter to adjust conveyor belt speed.

5. Propulsion mode of hanging rubber rod driven by the motor reducer; material is 304 stainless steel pipe; Conveyor speed controlled by frequency converter; the bottom of the rubber bellows equipped with water pans, material is 201 stainless steel.

6. Back access device adopts non-joint ring conveyor mesh belt; The inverter to adjust conveyor belt speed.

7. Swing rubber device adopts CAM method, driven by motor through the swing arm with swing box to swing rubber sheet and laminate rubber sheet.

8. According to user’s requirements to choose automatic swing and laminating device. This device with automatic lift, automatic swing, automatic laminating, automatic pressing, automatic weighing, automatic cutting, automatic transmission function, without manual operation. No workers needed to control batch off machine if equipping with this device, only by mixing mill operator to put rubber sheet and forklift worker to replace rubber tray.

9. The full set with one main electrical box to adjust all motors’ speed, with sing button for single motor’s forward and reversing rotation. Front and back operating position equipped with one main control box separately. Low voltage electrical parts using SHINAIDE which is famous Chinese brand, Mitsubishi inverter, Domestic Siemens motor, voltage according to customers’ requirements.
