XGPL-G Hanging Rod Type Rubber Sheet Cooling Machine / Floor Standing Type Batch off Cooler
- Qingdao China
- T/T
You May Like
-
XGPL-G Hanging Rod Type Rubber Cooling Line / Floor Standing Type Batch Off Cooler
-
Qingdao Professional Factory Mesh Belt Type Rubber Cooling Machine Batch-off Cooler
-
Hanging Rod Type Rubber Sheet Cooling Machine Bath off Cooler
-
Hot-sale Full Automatic Bath off Cooler for Rubber Sheet With High Quality Made in China
-
Professional Factory New Condition Full Automatic Bath off Cooler for Rubber Sheet
-
High-efficiency Full Automatic Rubber Sheet Bath off Cooler
Product Details
| Condition | New | Type | Other, Rubber cooling machine/Rubber sheet cooling machine/Batch off cooler | |
| Place of Origin | Shandong, China | Brand Name | Bojia | |
| Model Number | XGP-600/XGP-700/XGP-800/XGP-900/XGP-1000 | Voltage | 380V Or depend on your counry | |
| Power(W) | 7-11KW | Dimension(L*W*H) | According to your request | |
| Weight | 4.5-6T | Certification | CE/SGS/ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Rubber sheet cooling machine
1. CE,SGS,ISO cetification.
2. PLC controll.
3. Low noise high efficiency.
4. Two types of structure.
XGP-700 Rubber Sheet Cooling Machine/Batch Off Cooler With Good Quality
1. Usage
The Batch-off cooler is used for cooling,folding and depositing the rubber which comes from the opening mill or twin screw extruder.
2. Features
There are two tyes structure of the batch-off cooler:Overhead and Fioor-standing,whose hanging racks vertically turning with compulsive cooling.
The hanging tubber rod is drived by step cylinder or the motor reducer.
3. Structure
1) It is mainly consisted of main engine and electrical control system.
2) The main engine is consisted of joint,printer,longitudinal cutting device,insulator cooling,lifting device,hanging sheet cooling,automatic swing device,weighing,the rail,platform and the supporting frame,etc.Electrical control system is made up of main-control box,which sets up emergency device at the key point.
3) Rubber sheet collection contains:rubber sheet folding and unfolding, rubber sheet cutting and automatic display,rubber winding type.
4. Advantage
Customer can choose high configuration or low configyration according to the actual needs.The high configuration rubber sheet cooling line is equiped with hydraulic automatic folding and unfolding device,whose the rubber stack is tidy and the tidy rate ≤
100mm.The material tray can automatically
input and output three working device,automatic rubber picking,automatic measuring and cutting device and automatic measuring and winding device.Unmanned operation can be realized and it is a high degree of automation.
5. Our Service
1) One year warranty.
2) 24 hours technical support;
3) Offer lifetime service and spare parts;
4) Technique training is free of charge
6. About Batch-off Cooler Unit Price
The price basis on the following factors
1) Type:Overhead or floor-standing.
2) Length:the suitable length for your plant.
3) Fan's quantity:the suitable quantity of fans you need.
4) Automatic device:suitable selection of automatic device.
7. Technical Parameter
Model Main Parameter | XPG-600~700 | XPG-800~1000 |
Suitable sheet specification | (4-12)x600~700 | (4-12)x 800~1000 |
Max linear speed(front conveyor belt) | 40m/min | 40m/min |
Hanging rail moving speed | 0.117-2.2m/min | 0.117-2.2m/min |
Axial flow fan | 0.37KW 5760m3/h | 0.37KW 5760m3/h |
Amplitude and frequency of the rubber | 1.3m 10-16times/min | 1.3m 10-16times/min |
Rubber temperature after cooling | ≤Room temperature+5℃ | ≤Room temperature+5℃ |
Variable motor of lifting device | XWD1.5-3-1/11 | XWD7.5-7-1/43 |
Variable motor of folding device | XWD1.1-5-1/87 | XWD1.1-5-1/87 |
Hanging rubber rail distance | 160 or 101.6 | 160 or 101.6 |
Max height of rubber hanging | 1400mm | 1400mm |
We can design and manufacture all kinds of Standard and Non-satandard rubber machine according to your demand.

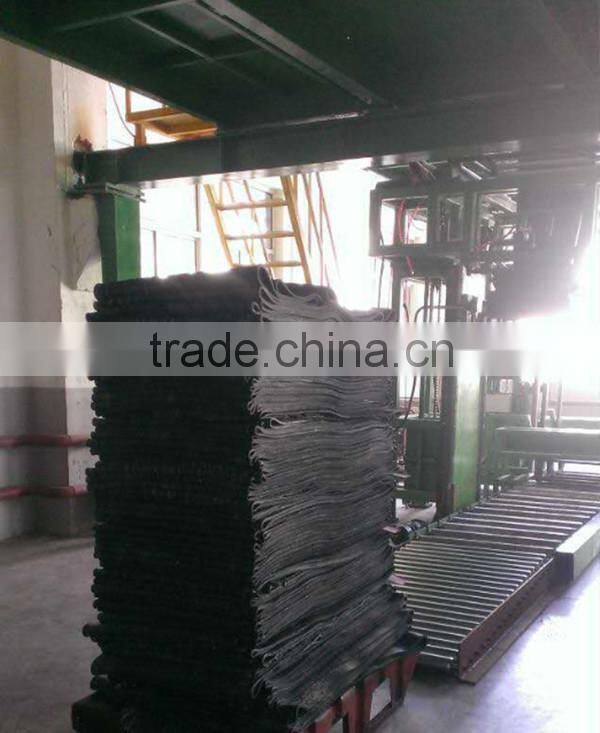

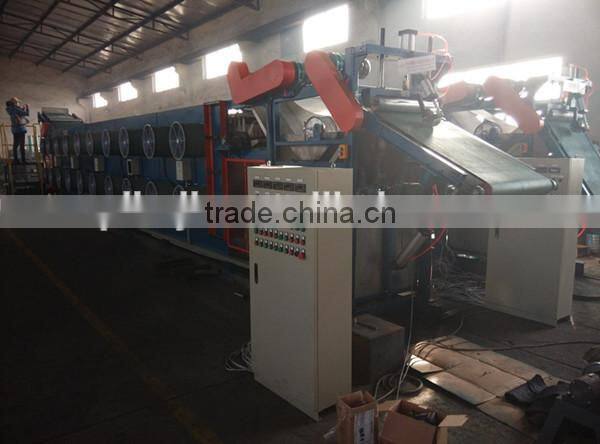

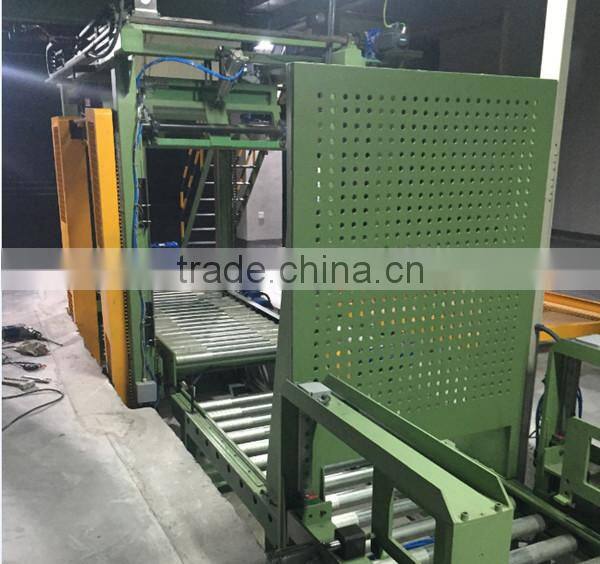

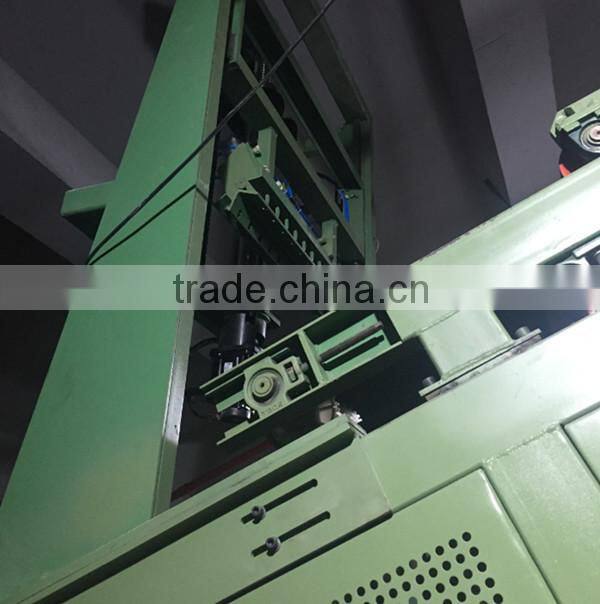

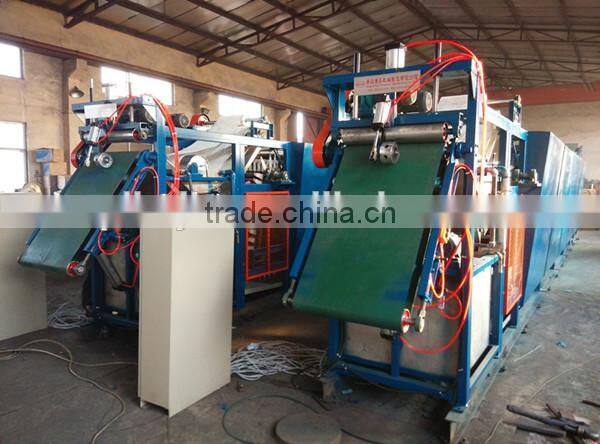

8. Picture Show
Packaging details
Standard export wooden packaging 20G/40G container or according to your request.
Delivery time and Shipping
Within 50 working days after receiving the deposit.
Qingdao Bojia Machinery Manufacturing Co.,Ltd is one professional machinery manufacturer. Our main products are:Conveying belt molding machine series,Batch off cooling machine series,
Cushion cloth renovating machine series,open mixing mill series,Vulcanizing press series,
Rubber cutting machine series,Rubber slitting machine series,Logitudinal cutting machine series,
Conveyor belt machine series,Other rubber machines,Design and manufacturing of automatic production
line.
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Huangdao,Qingdao, China. You can fly to Qingdao Liuting airport directly.
All customers are warmly welcome to visit our factory!
3. Q: How does your factory do regarding quality control?
A: "Quality is priority. BOJIA people always attach great importance to quality controlling from the
beginning to end.
