TDXE4202 X10 Smart Home Electric Appliance Module(Accept OEM&ODM)

TDXE4202 X10 Smart Home Electric Appliance Module(Accept OEM&ODM) thumbnail-1
TDXE4202 X10 Smart Home Electric Appliance Module(Accept OEM&ODM) photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TAIYITO
Model Number:
TDXE4202
Use:
Universal
Contact Supplier Request Quote Chat Now
Tianjin Taiyito Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TAIYITO
Model Number TDXE4202
Use Universal
Place of Origin Tianjin, China

Specifications

TDXE4202 x10 smart home electric appliance module
-bidirectional communication,work status checkable
--220V,50 hz
-2200w
-CE





         TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)



TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)

 TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)





Main used and control function:

It used in bidirectional PLC system can receive the PLC control signal and transmit related signal, it is controlled product, main used for big lamps more than 1000W, include of the big ceiling lamp, main lamp in the living room (for example a big ceiling lamp from upstairs to downstairs) etc.
Compatible with X10 protocol, accept  and transmit X10 signal.







 It should work with the remote controller like TDXE6648+ 48key Multi-function LCD Remote Controller, TDXE6671 touch-screen colorful remote controller and TDXE6438+ Transmitter together to realize the remote control; if it work with telephone controller and web controller can realize the long distance control etc.

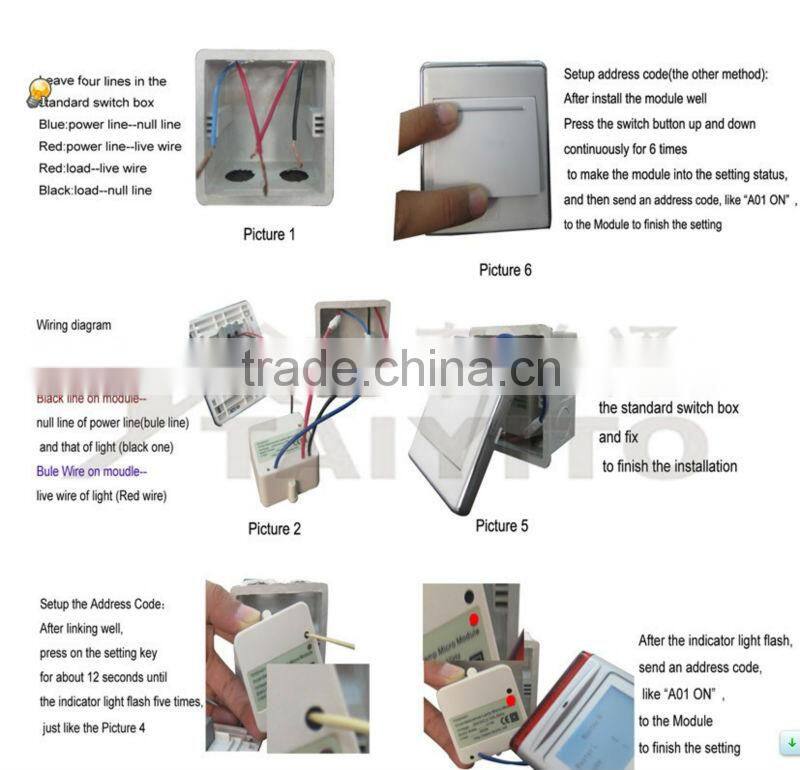

  Installation:

For the lamp which you want to control, only need to put the module inside the standard 86 type switch box, the switch box should have the naught wire, if you don’t have the naught wire just put it on the

 TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)





Function description:

1.     You can use the remote controller to turn on/off the lamp which you put this kind of module in any direction at home, also can check the working status.
2.     When you in front of the lamp switch, you also can control it just like a normal local switch to turn on/off it.
3.     When you are on the way home, you can make a call first to turn on the light in your hallway.
4.     When you are in another province for business, you can through web controller to turn on/off your lamp-a very popular and modern way to control your home lights.
5.     This module also controlled by Scene, for example, in the evening you want to your bathroom, just press scene key, you can open the way to your bathroom all the lights one by one, when you return back, just press Scene off key is ok.
6.     Also have the timing control function.

Features:
1. The Max power is about 1500W, if the lamps have this module then can control by the system many commands.
2. Very easy for installation, no never it is a new or old house, can put it inside the wall switchbox or put it on the lamp.
3. Have the function for all on/off, for example, you can turn on all the lamps in the bedroom or turn it all off.
4. It is very stable and reliable, bidirectional communication with feedback.

Parameter:

Rated voltage&Frequency 220VAC ±10%,50Hz
Maximum Load : ≤2200W
Static Power <0.5W
Operating Temperature: -10~50°C
Response Time for bidirectional signals ≤ 2s

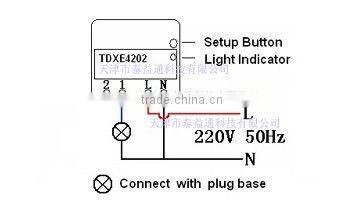

Connection drawing:



TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)

TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)









Aplication:

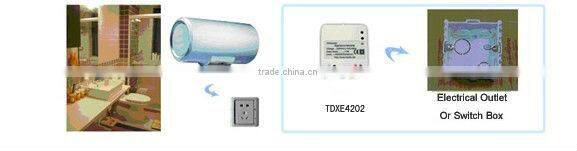

The module can be use for controlling lamp/electric appliance/electric curtain/fingerprinter door on/off in the X10 PLC home autoamtion system.It is putted into the 86-type switch box and connected with Naught wire and Live wire,,

 TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)

Terms&Warranty

1.We provide 1 years warranty.

2.If the item is defective use by technical reason,you could sent back to us for New one.

3.All items must be returned in their original condition.In order to qualify for a refund or exchange of goods.

4.Items returned after 7 days of delivery are only eligible for repair.

5.The buyer is responsible for all shipping costs incurred.

6.No refund accepted after 30 Days of receipt.

7. After receipt of the goods found any questions, please contact us solve the problem



Shipment:

1.Items are only shipped after payment is received.

2.We provide DNJ,EMS,DHL ,TNT for shipping method.

3.Delivery time:

EMS,UPS,DHL,Fedex and TNT express shipping usually take 3-7 working days depends on the country delivered to.In rare cases,the strict custom clearances will make the delivery time a bit longer,please be patient.

4.We are not responsible for any accidents,delays or other issues which are the responsibility of the shipping service.

5.Any import charges or fees are the buyer’s responsibility.

6.Please check out your ADDRESS carefully when processing order.

7.Feel free to Contact us with any question,we will offer you satisfying answer.



Payment:

1.Western union

2.T/T

3. Aliexpress on line



Any more details,pls feel free to contact us



TDXE4202 x10 smart home electric appliance module(Accept OEM&ODM)
