Specifications
1.High accuracy and speed2.No consuambles
3.Digital control
4.Double-laser head cutting
laser wood engraving and cutting machineing,laser cnc cutting machine 200w,laser machine cutting engraving
1.Brief introduction:
The machine is used in wood, cloth, paper,leather,pmosite materials,fiber and nonmental material etc.

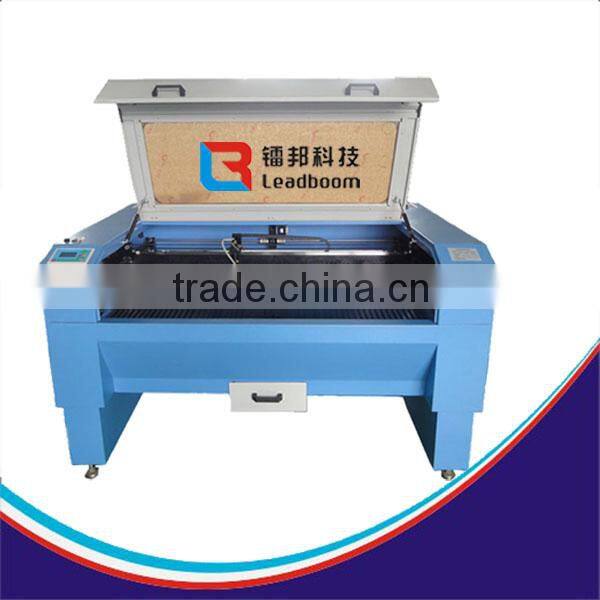

2.Product display
3.Technical parameters
| Type | LB-CE1680 |
| Laser power | 80W/100W(optional) |
| Laser type | CO2 seal from type glass tube laser |
| Working area | 1600mm × 800mm |
| Max. curve speed | 50000mm/min(steping motor) |
| Cutting speed | 0-40000mm/min(steping motor) |
| Engraving sppeed | 0-50000mm/min |
Laser energy control |
1-100%(software Settings) |
| Max. scanning accrancy | 2500DPI |
| Positioning precision | ≤ ±0.01mm |
| Min. carving Charactor | Chinese character 2.0 × 2.0mm, Engsh 1.0 ×1.0mm |
| Dichoic cutting | The color can set a variety of carving parameter |
| Working voltage | 220 ±10%50HZ |
4.Applicable fields:
1.Advertising industry:Acrylic plate color board and other advertising materials engraving and cutting.
2.Leather garment processing industry:Leather,fabric carve orhollow out patterns.
3.Arts and crafts industry:Paper cuting,wood,bamboo,leather,shell and other materials engraving and cutting.
4.Packaging industry:Rubber printing plate engraving cutting,bilayer plate etc.
5.Decoration industries:Electrical and electronic industry materials'engraving and cutting.
5.Samples of laser cutting machine
6.Feateures
1.USB off-line motion control system and interface.
2.Strong and stable mechanical structure,digital control.
3.Focus lamp and bottom of the silicon gilded mirror is imported from America.
4.Double-laser cutting,high efficiency.
7.Package:
If you need more information,please contact Kelly at any time.
Skype:leadbomm2
Cell phone:+86 15918356344
