Specifications
Small Portable Low Cost Plastic Laser Cutting MachineHigh accuracy and speed
No consuambles
Operation convenient

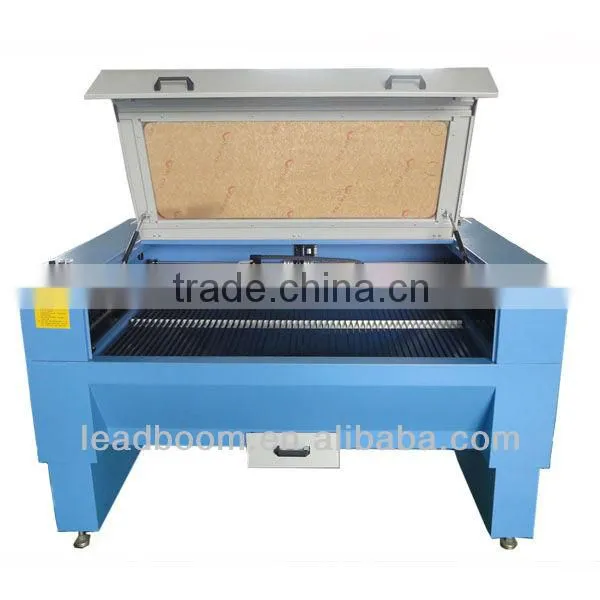

Small Portable Low Cost Plastic Laser Cutting Machine
1.Technical Parameters:
| Type | LB-CE6040 | LB-CE9060 | LB-CE1280 | LB-CE1390 | LB-CE1680 |
| Laser Power | 60W/80W | 60W/80W | 80W/100W | 80W/100W | 80W/100W |
| Working area | 600x400mm | 900x600mm | 1200x800mm | 1300x900mm | 1600x800mm |
| Laser type | CO2 Sealed Glass tube laser | ||||
| Off-line motion control | USB data import | ||||
| Laser wavelength | 10640nm | ||||
| Max.curve movement speed | 50000mm/min Stepping motor | ||||
| Cutting speed | 0-40000mm/min Stepping motor | ||||
| Min. Carving Character | Chinese character 2.0x2.0mm, English 1.0x1.0mm | ||||
| Repeated precision | ±0.001mm | ||||
| Max. scanning accuracy | 2500 DPI | ||||
| Power supply | AC220V/50Hz | ||||
| Coolling system | Water-cooling | ||||
2. Product Overview
CNC Laser Cutting Machine is using the energy released from the workpiece when irradiated by laser beam, to make the workpiece melt and evaporate, so as to cut and engrave. Laser cutting is of high-rate precision and speed, and is not limited by patterns. The automatic composing can save materials largely, and the incision is vey smooth, and also the processing cost is much lower. With those qualities, the laser cutting machine will replace the traditional cutting Equipment.
LB-CE Series Laser Cutting machine are the high-tech product which using the CO2 laser as energy power, and integrating technologies of optics and mechatronics. It is combined organically by the stepping motor driving system, the mechanical system of synchronous belt, wheel adn straight axis, and the new technology of DSP digital control and USB data transmission.
|
|

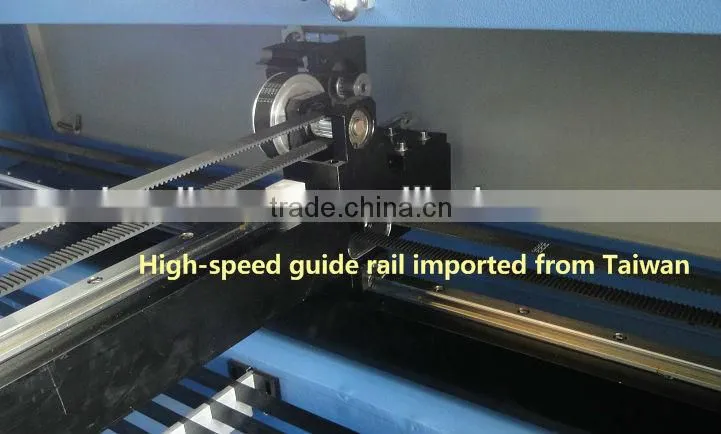

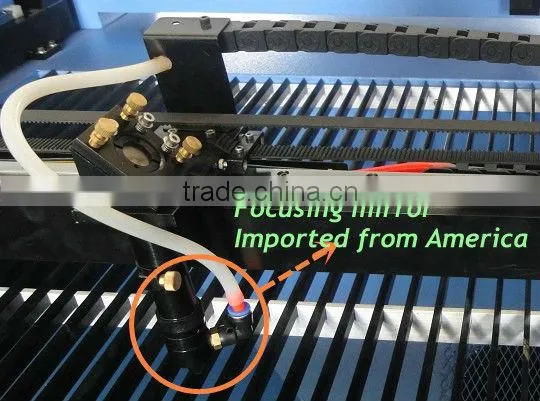

| Adopt focusing mirror imported from America and the iron-blade platform is adjustable and is suitble for cutting acrylic | High-speed guide rail imported from Taiwan |
|

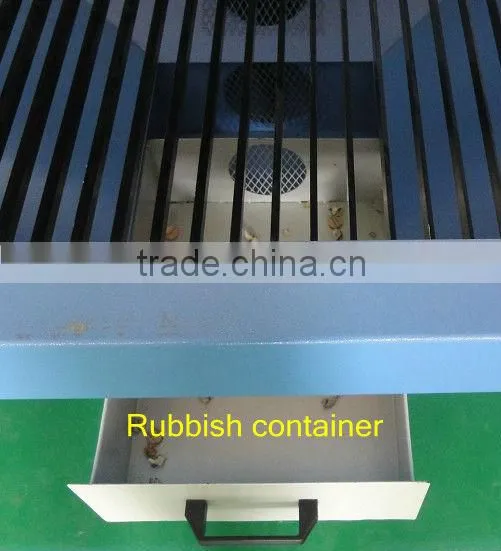

The rubbish container collects wastes efficiently and keep the working space clean. |

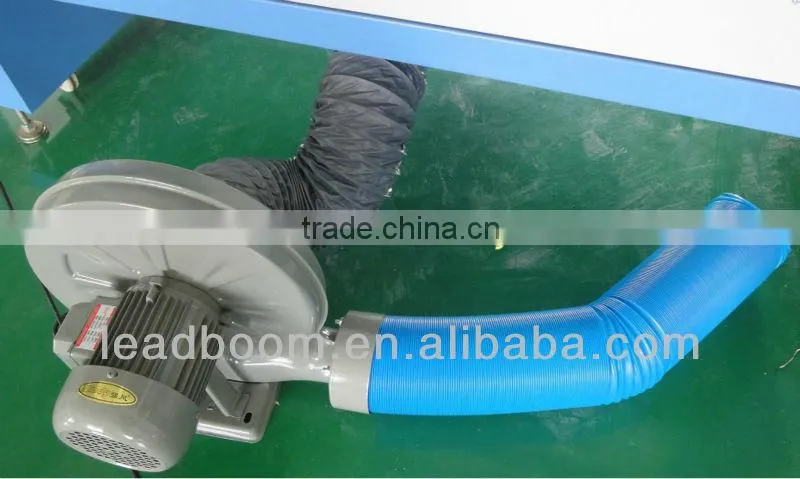

| High-power of exhaust system can pump smoke quickly | |
| |

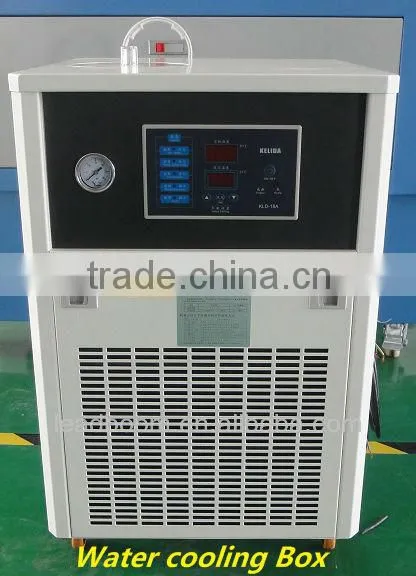

| The water cooling system can control temperature within 0.7degree |
3.Application Materials & fields:
Cloth, tile, cardboard, paper, leather, PU leather, trademark embroider, plastic, rubber, wood products, wood, organic glass, acrylic, jade, leather, shell, horn, animal sebum, double color boards, bamboo and wood products, ABS board, PVC board, fiber and composite materials etc. Nonmetal materials.
Shoes, leather clothing, trademark processing, embroidery, advertisement, decoration, wood processing, packaging and printing, laser knife die, decoration decoration industry, printing tipping template, process gifts industry, electronic industry, model industry (architecture model, aviation and navigation models and wooden toys), etc.
4. Advantages
- Adopt the off-line motion control system which need not be connected to PC operation. Use USB data import, can reserve many processing documents.
- Strong and stable mechanical structure and digital control.
- Imported the American focusing mirror and silicon bottom gilded mirror with thin light spot and cutting force.
- Equiped with professional industrial cooling water system, so the continuous work performance is very stable .
- Support AI, BMP, PLT, DXF, DST (tajima embroidery software) image data format import.
- Support TAJIMA embroidery software (TAJIMA), CORELDRAW, PHOTOSHOP, AUTOCAD, all kinds of clothing CAD software.
- Equipment can choose servo drive and imported linear guide, enhance stability, improve accuracy, increase the work efficiency.
- Can adopt double-head laser cutting, with big processing dimension and high processing efficiency.
5.Our company
|
Dongguan Leadboom Photoelectric Technology Co., LTD., is dedicated to researching and developing laser equipments and mass manufacturing for our customers overseas. And we have built long term strategic parterships with the COHERENT, SYNRAD, II VI from the US, and MITSUBISHI, Panasonic from Japan, and Rofin, IPG from Germany,etc. Our main products including CO2 laser wire stripping machine, fiber laser wire stripping machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser cutting machine, laser engraving machine, solid laser welding machine series over 20 sets of laser equipment, etc. Our company takes "quality, innovation, efficiency, service" as business target and is now growing fast with our partner and client together. And we also believe that the basis of a enterprise development is the attitude of pursuing excellence and the support from customers will strengthen our confidence. The only device can no longer stand for our technology, we are offering the solutions. Let’s cooperate together for the brighter future! |
|
6.Our Workshop
|
|
|
7. Samples:
|
|

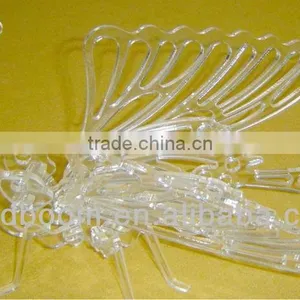

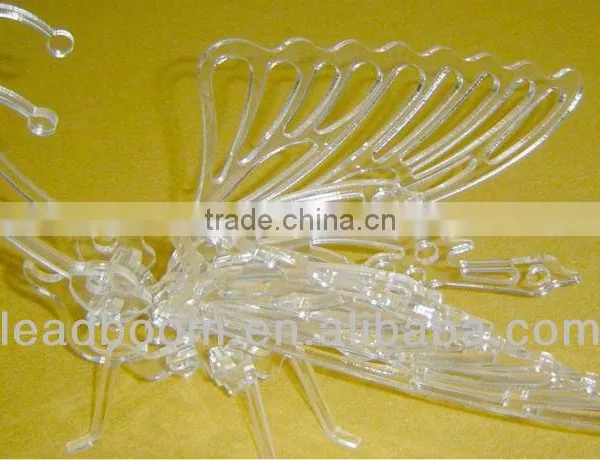

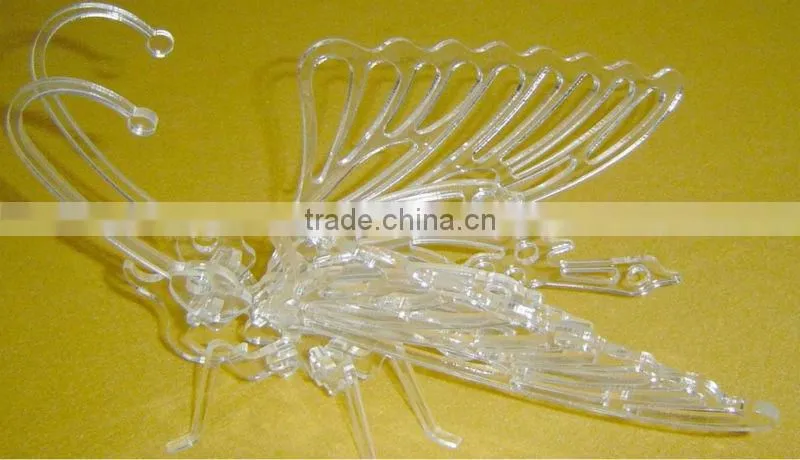

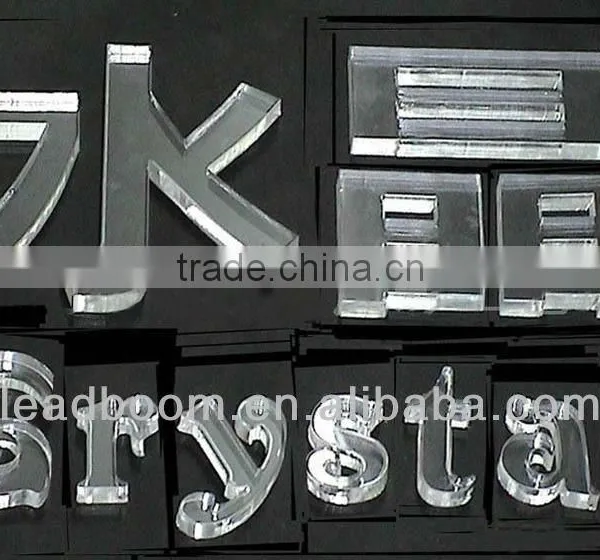

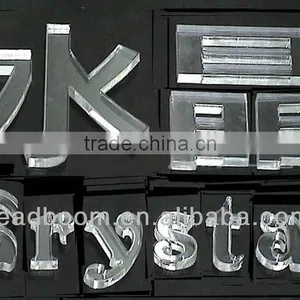

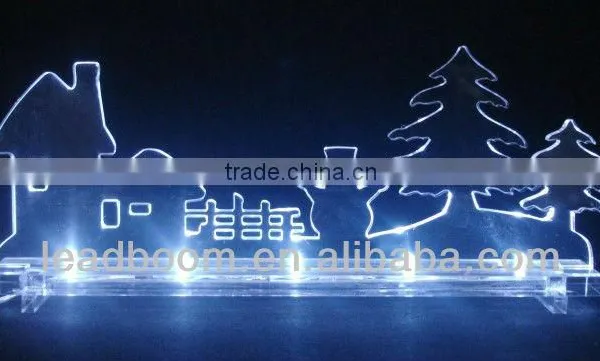

| Cutting work of Acrylic by our laser cutting machine | |
|
|

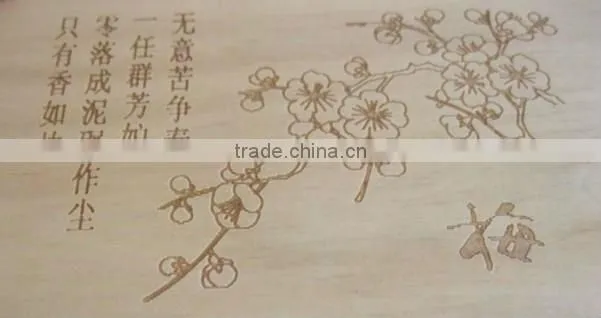

| Drawing art work on wood and bamboo by laser cutting and engraving machine | |
|
|
| The beautiful leather working by laser cutting machine | |
8.Our Commitment
1.Online service.If any technical questions or problems,our engineers will
help to give you solutions on email or some online way.
2. Minimal one year for free warranty (include whole machine and spare parts)
3.Spare parts supplying on time or help fix the old parts.
4.Faster delivery,most of our products have stock and guarantee delivery within short time.
5.Free design and guide for customer6.Free software update
If you have any other question or need please ask me .I am always online for you.
Customers need is our first.We will provide you the product of the best quality and the lowest price!
