Specifications
LB-V30D CO2 laser stripping machineduction's peel location and side can be regulated freely
2.24 hour at full load work
CO2 laser wire stripping machine
LB-V30D CO2 laser wire stripping machine is the professional stripper product mainly focus on the processing of high-end wire.
It adopts imported configuration have stable performance and easy for maintenance, can be continuous operated for 24 hour at full load.
Technical Parameters:
|
Laser Power |
30W×2 |
|
Laser wavelength |
10640nm |
|
Work wide |
300mm×100mm |
|
Cutting speed |
0~6000mm/min |
|
Positioning precision |
±0.02mm |
|
Repositioning precision |
±0.02mm |
|
Cooling system |
air-cooled |
Power supply |
AC220V/50HZ |
|
power consumption |
≤1.5KW |
|
Dimension |
1300×600×900mm |
Prodduct application
Materials: Filament, mini-filament coaxial cables, electronic cable industry and HDMI, USB, DVI, DP, SATA, SFP and other aluminum foil and corn wire stripping, ect.
Fields: non- metallic materials, including polyvinyl chloride, glass fiber, polyester, polyester film, nylon, polyethylene, fluoride, silion resin, other different hardness high temperature resistant insulating materials.
Technical Advantage
1. Adopt double tube double light road design, processing efficiency was one times faster than normal laser wire stripper machine.
2.import lasers, more filament , low power more stable, 6 times of service life time than domestic laser.
3.movable X-axis and Y-axis distance, production's peel location and
side can be regulated freely, can produce more than one line in a single time.
4.PLC controller and touch screen, complete function, simple and convenient for operation , can set and retain several processing files.
5.Precision linear motion module, high precision, low noise, fast speed.
6.mini coaxial cable and aluminum foil below AWG#52.
7.the tension resistance of laser strip cable wires better than the heat stripper.
8.strip the shield without deforming and hurting insulation and conductors, the port without change after insulation performance.
9.strip the cable insulation performance without change.
10.Precision control of strip location, size and depth, consistency and reliability of cable end processing quality can reach 100%.

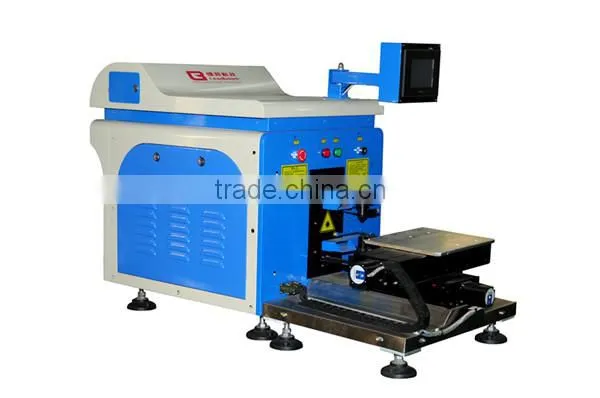

LB-V30D CO2 laser stripping machine

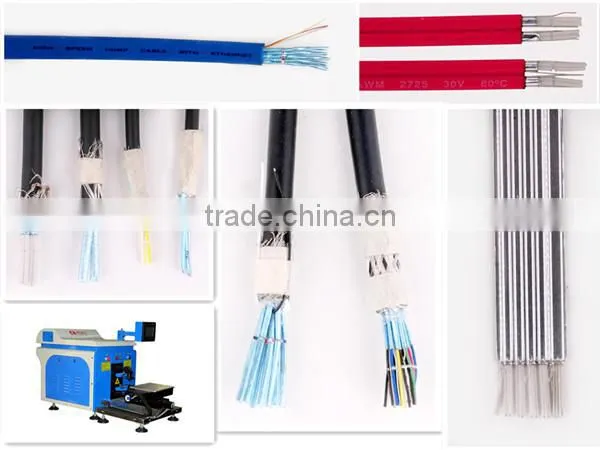

Working sample
Our company and workshop
