Specifications
CO2 laser stripping machine1.efficient strip line products
2.stable performance and long time work
3.linear motion module.
CO2 laser stripping machine
LB-V30S Carbon dioxide laser wire stripping machine is the professional stripper product mainly focus on
the processing of high-end wire. It adopts imported configuration have stable performance and easy for maintenance, can be continuous operated for 24 hour at full load.
Technical Advantage
1. The single tube double light road design, guarantee the product quality, reduce the equipment cost.
2. import lasers, more filament , low power more stable, 6 times of service life time than domestic laser.
3.movable X –axis and Y-axis distance , production’s peel location and side can be regulated freely ,can produce more than one line in a single time
4.PLC controller and touch screen, complete function, simple and convenient for operation , can set and retain several processing files.
5.Precision linear motion module, high precision, low noise, fast speed.
6.mini coaxial cable and aluminum foil below AWG#52
7. the tension resistance of laser strip cable wires better than the heat stripper
8.strip the shield without deforming and hurting insulation and conductors, the port without change after insulation performance
9.strip the cable insulation performance without change.
10.Precision control of strip location, size and depth, consistency and reliability of cable end processing quality can reach 100%.
Technical Parameters
|
Laser Power |
30W×1 |
|
Laser wavelength |
10640nm |
|
Work wide |
300mm×100mm |
|
Cutting speed |
0~6000mm/min |
|
Positioning precision |
±0.02mm |
|
Repositioning precision |
±0.02mm |
|
Cooling system |
air-cooled |
Power supply |
AC220V/50HZ |
|
power consumption |
≤1.2KW |
|
Dimension |
1300×600×900mm |

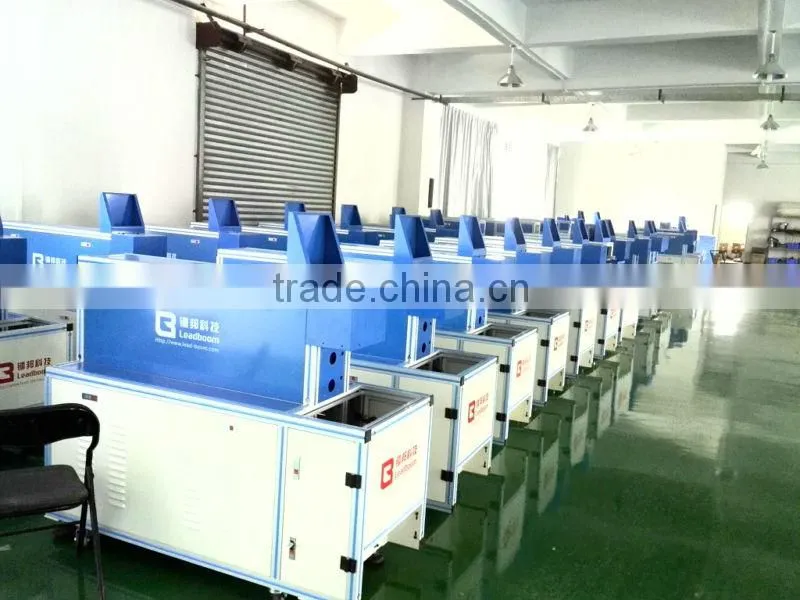

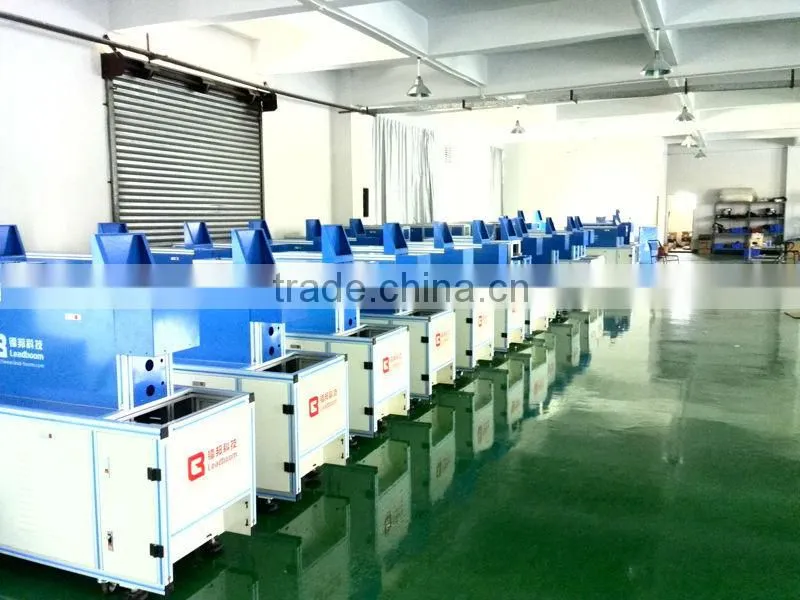

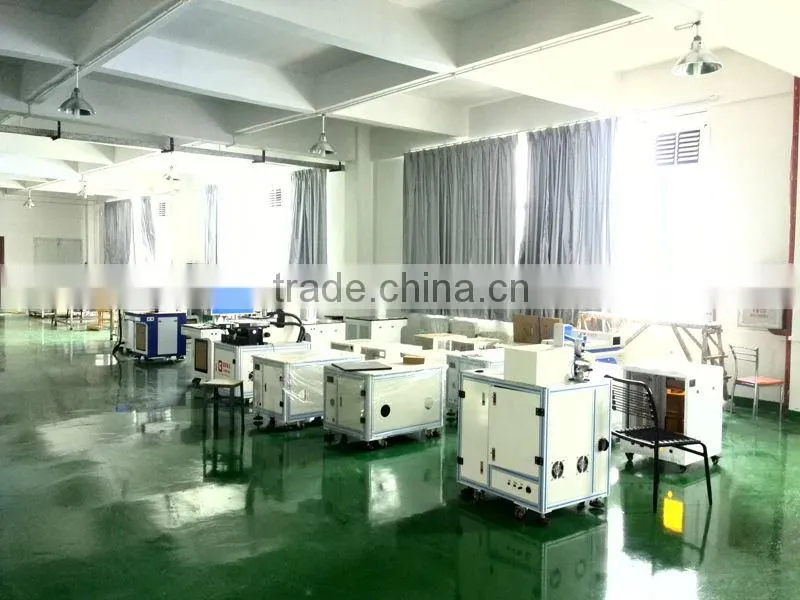

workshop:

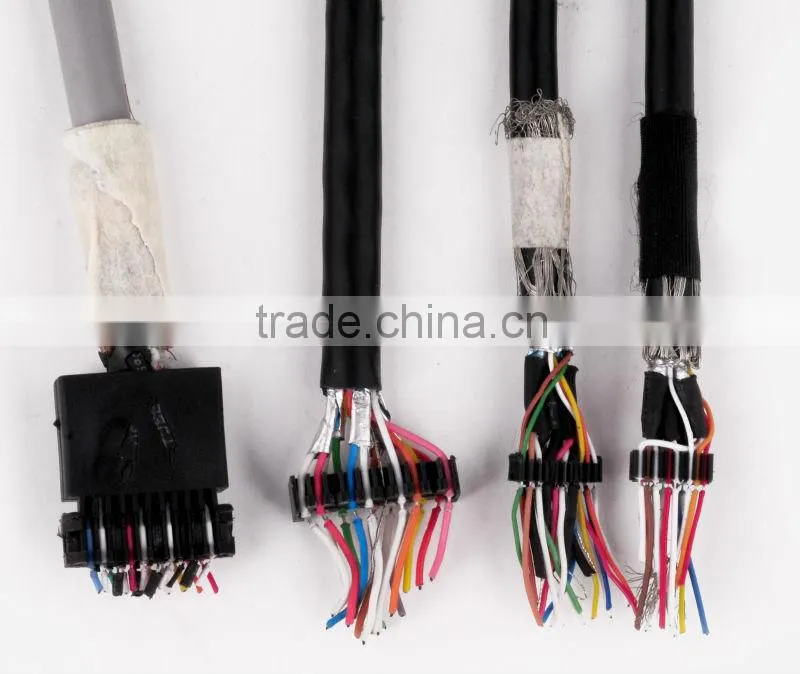

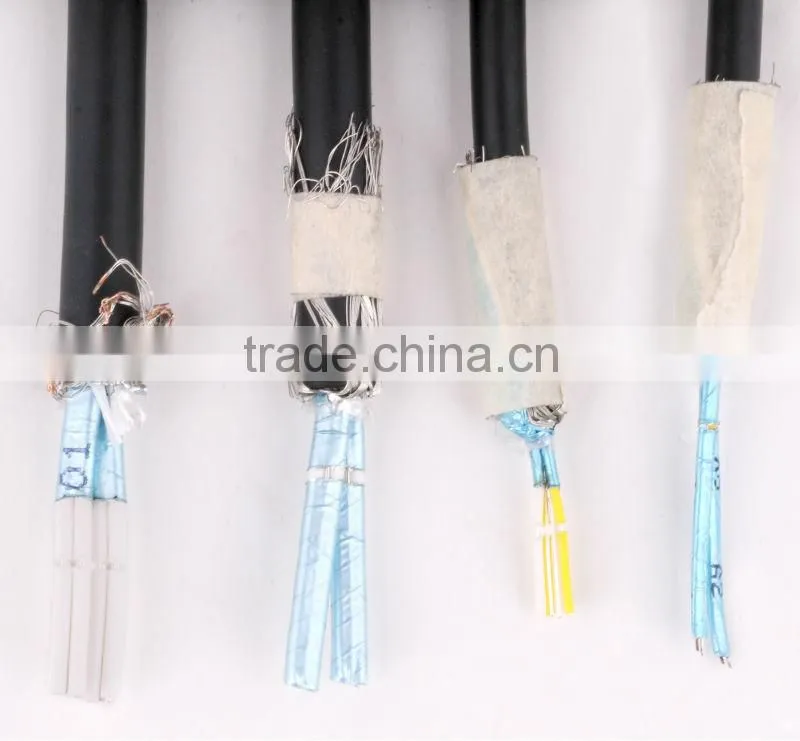

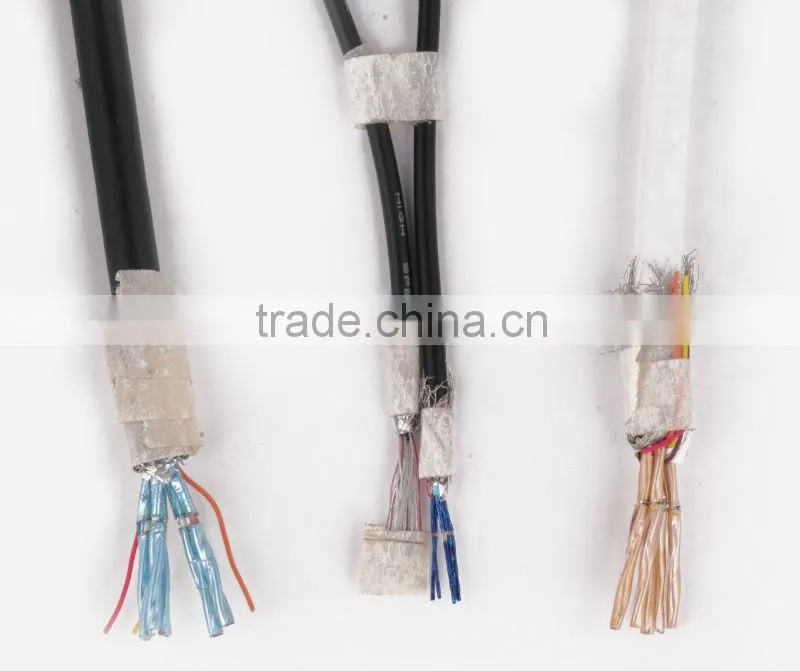

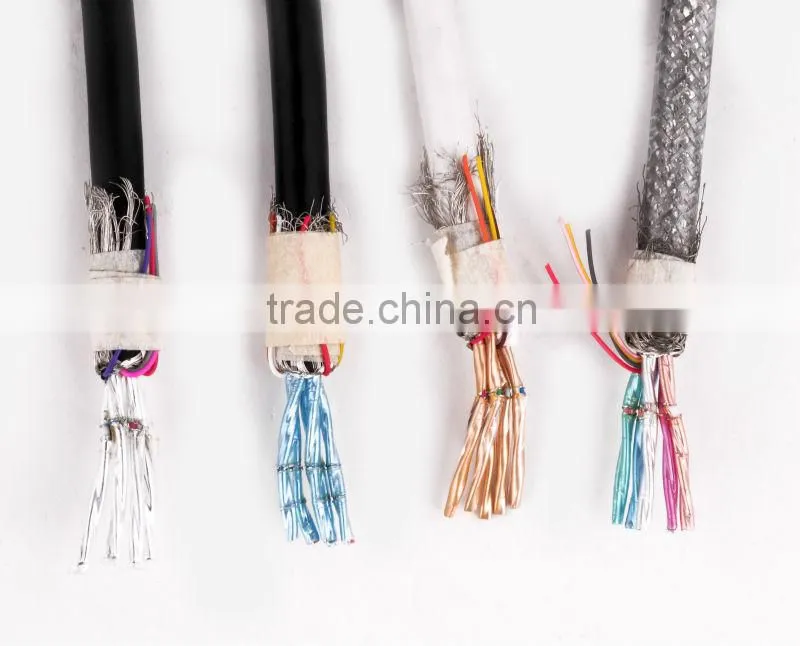

sample:
