QT10-15 Automatic Block Machine manfacturer
- 100 Set / Sets per Month
- Qingdao
- T/T D/P D/A Credit Card
-
China pe200x300 smallest jaw crusher
-
Popular compound pendulum jaw crusher price
-
2016 china products stone coated steel roofing tile ,shingle steel roof tile
-
2016 china products lightweight roof tile,blue glazed roof tile
-
colored metal roofing prices,sand coated metal roofing tiles
-
roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 16,000 hollow bricks/day | Place of Origin: | Shandong, China | Brand Name: | FULANG |
Model Number: | QT10-15 | Voltage: | 220/240/380/440v | Power: | 47.55kw |
Dimension(L*W*H): | 3500*2300*2930mm | Certification: | SGS,CE, ISO9001, | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QT10-15 Automatic Cement block Making Machine
Specifications
2.Moulding period: 15-20S
3. Produces hollow, solid and curbing bricks
4. low cost,and longer using time.
5. Operation is easy
Main technical parameter of QT10-15 Automatic Concrete Brick Making Machine
Detailed specification: | |||
Dimension of host machine | 3500×2220×2850mm | control style | PLC |
forming style | Hydraulic | Vibration force | 100KN |
vibrator style | table and mould vibrate togather | raw material feeding style | 360 degree revole |
forming hight | 40-250mm | moulding period | 15-20S |
moulding aera | 1025×810mm | size of pallet | 1350×900×30mm |
weight of host machine | 14ton | Mixer style | JS750 |
General water Consumption | 12T/day | Voltage | 220/240/380/440V |
Simple block machine line area needed | |||
Workshop | 200m2 | ||
Office | 100m2 | ||
Total area | About 2000m2 | ||
Worker arrangement | |||
operate | 1 | Material loader | 1 |
Drive forklift | 1 | Feeding pallets | 1 |
Maintain | 1 | Total | 5 |
Production capacity | |||
Size(L x W x H) | Pcs /Mould | Pcs / Hr |
|
400X100X200 | 20 | 3000-3600 |
|
400X150X200 | 14 | 2100-2520 |
|
400X200X200 | 10 | 1500-1800 |
|
400X250X200 | 8 | 1200 |
|

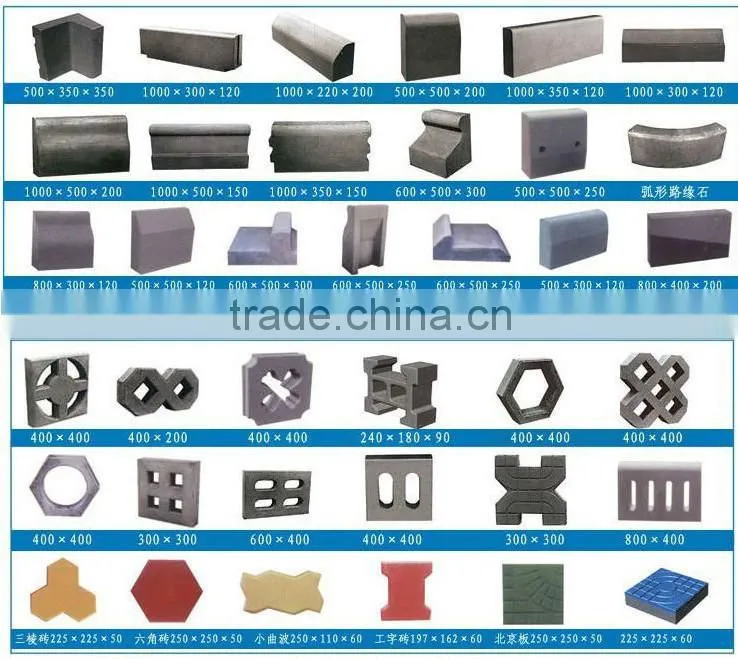

Block samples:
Main Advantages
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
...
