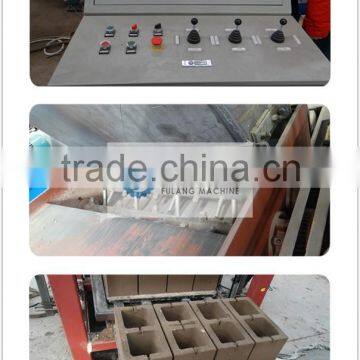

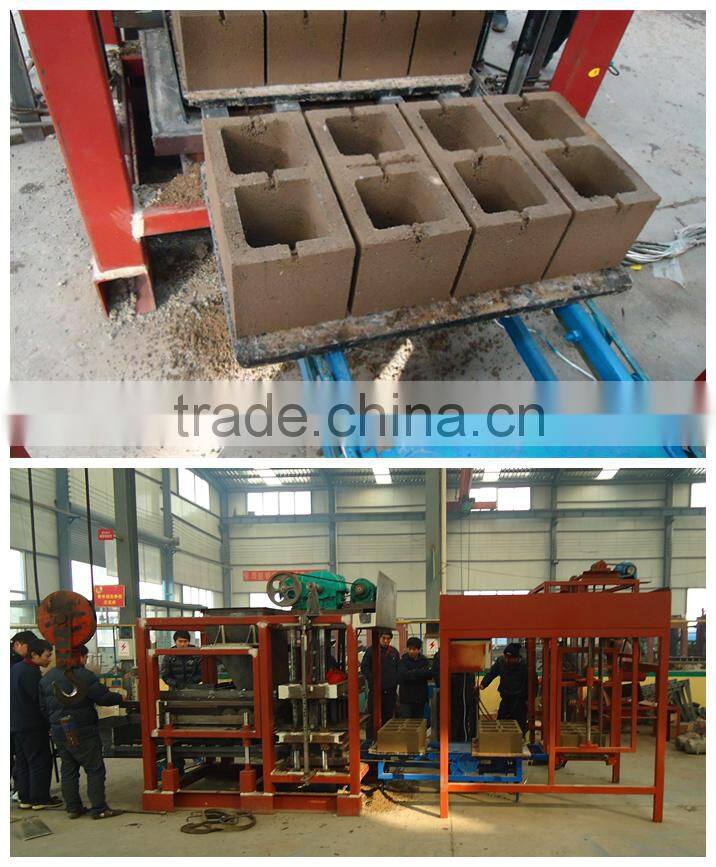

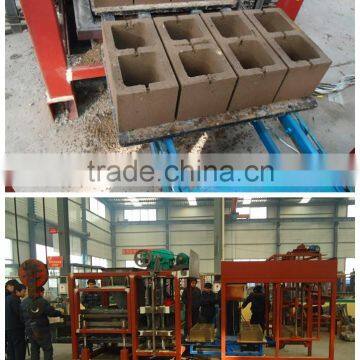

The photo of concrete block making machine with high viberating force /paving block machine QT4-25
The description of concrete block making machine with high viberating force /paving block machine QT4-25
Forming machine theoretical data | |||||||
Dimension of host machine | 4000x1800x2800mm |
|
| ||||
Main vibrator style | lower mould vibration | Number of hydraulic vibrator | 2 | ||||
control style | PLC | forming style | hydraulic | ||||
Number of motor vibrator | 2 | hydraulic cylinders | 2 | ||||
Hopper capacity of concrete | 0.3 M3 | feeding style | 360degree revole | ||||
Moulding area | 1010x600 mm | forming height | 40-250mm | ||||
Moulding period | 15-20 S | vibration force | 40-50 kn | ||||
Forming blocks per mould400x200x200mm | 4 | The size of the pallet | 1010x550 mm | ||||
Weight of the host machine | 5T | Mixer style | JS500 | ||||
Water and Voltage | |||||||
Genetal water Consumption | 5-6 T | Voltage | 220v/380V/420v/440v | ||||
Power | 21.7kw |
|
| ||||
Simple line Uesd Area | |||||||
A.Production area excluding concrete mixing zone | M2 | 300 | |||||
B. Concrete mixing zone area | M2 | 170 | |||||
C.Finished product Warehouse | M2 | 800 | |||||
E.Raw material storage | M2 | 700 | |||||
F.office | M2 | 100 | |||||
G.Total area | M2 | 2070 | |||||
pratical workers arrangement | |||||||
control/operation | 1 | wheel loader | 1 | ||||
Forlift/pallet added | 2 | repaire/maintain | 1 | ||||
sum | 5 |
|
| ||||
Production capacity | |||||||
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/8 Hr | ||||
400X100X200 | 8 | 1440-1680 | 11520-13440 | ||||
400X150X200 | 6 | 1080-1260 | 8640-10080 | ||||
400X200X200 | 4 | 780-840 | 5760-6720 | ||||
One machine with one set free mold, the pattern and design as followed:
We Can supply with differece kinds of mixer for the customers
1) All the mixer are made up of excellent steel.Durable and Strong
2) Easy control everyone can control it without too much training
3) German technology low power consume
4) Competitive price with high quality
5) Optional color
Port: Qingdao
Package: Wooden package
Total area of 1332000 square meters,and over 1500 staff,the Group is a national large-scale designated building materials machinery manufacturer,a coalition of researching,producing and marketing,and services.
...
