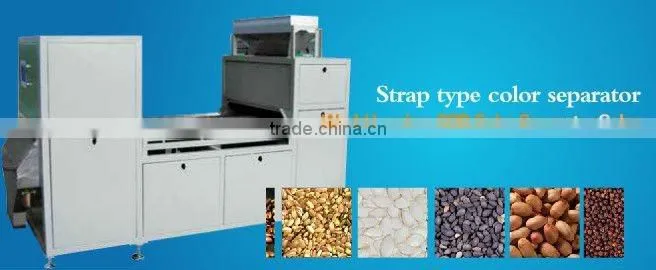

Help CenterBelt-type Tea-leaves Color Sorter/tea Leaves Separator
Related Products
-
Tea Color Sorter With Good Quality and Competitive PriceNegotiableMOQ: 1 Set -
Tea Leaves Processing Machine/color SorterNegotiableMOQ: 1 Set
-
Tea Leaves Separator/color Sorter/stick RemovingNegotiableMOQ: 1 Set
-
Tea Leaf Color Sorter With CCD Belt-type/separation MachineNegotiableMOQ: 1 Set
-
Tea Color Sorting MachineNegotiableMOQ: 1 Set
Specifications
1.CCD full color sensor2.pass ISO9001
3.self-developed computer control
4.durable LED light
Detailed Product Description
1,Full color CCD camera :High resolution with 2048 pixels,within definition up to 0.08mm2.
2,Real time display of actual material image: Real material image can be seen in the surface of the controling computer.
3,Self-designed computer controling systerm:Fully digital processing keeps a high sorting accuracy.
4,LED light source: with uniform color and long life.
5,Advanced high-accuracy valve and nozzle: achieve 1000 shoots per second theoretically .
6.High sorting accuracy with belt-type structure
7.Belt transmission: uniform and stable belt conveyor speed makes small collision and low damage rate for materials than the traditional chute-type color sorter.
Type |
|
AL2K1C8-256 |
Channels |
|
256 |
Output(t/h) |
|
0.5-1.5 ton/hr |
Sorting accuracy (%) |
|
>99.98 |
Optimized carryover(bad :good) |
|
9/1 |
Voltage (V) |
|
~220(50Hz) |
Power of main machine (kW) |
|
2.0 |
Air Pressure (MPa) |
|
0.6~0.8 |
Dimension(L*W*H)(mm) |
|
3080*1820*2150 |
Weight (kg) |
|
1350 |
