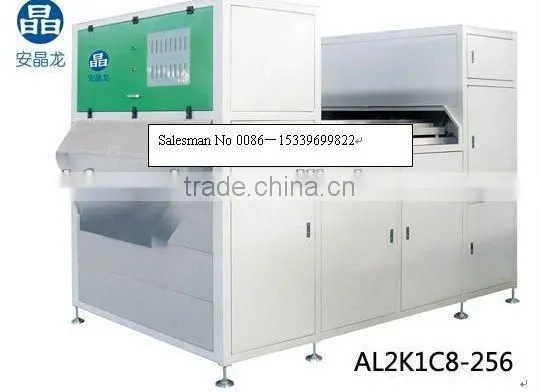

color sorting machines

Specifications

1.Track-type CCD color sorter
2.passed ISO9001.CE, ETL, UL
3.with resort fuction
4.Computer control
5.high production



1. Adopt higher-resolution chromatic CCD sensor, separate red, green, blue, gray and many different colors respectively.
2. Belt type, avoid the jumping in traditional chute-type color sorter, and increase the output.
3. With world-class optics, high-definition within 0.07 mm2, could identify subtle color and minimal defects.
4. Unique double layer belt-type design, increase the accuracy and could finish all the processing procedure at the same time.
5. High-speed parallel data processing chip, real-time and efficient image acquisition and processing system, greatly improving the efficiency of color sorters.
6. Convenient computer operating system could save many different sorting mode for clients in order to suit different materials.





Product features:

• High-Definition and high-sensitivity chromatic CCD image sensor, together with industrial wide-angle lens for accurate recognition;
• Adopt the international first-class optical lens; the articulation up within 0.07 mm2 can recognise a subtle chromatism and tiny flaws.
• By using high-speed parallel data processing chip, real-time efficient image acquisition and processing system, greatly improving the color separator working efficiency.High quality image processing algorithm:
• Adopt international advanced image processing technology, can effectively identify small to 0.1 mm of tiny impurities, color choose higher accuracy, color choose than lower brought out.
• Convenient computer operating system, could save many different sorting mode for clients in order to suit different materials.
• Unique LED lighting system, Equipped with LED light source, and to ensure the high-definition image quality, can meet 1000 kinds of color separation, identify color changes.
• Fan self-adaptive working temperature, ensure color separator in the high temperature environment also can work normally.
• The incomparable eliminate accuracy, more perfectly sorting out finished with a defective; high resolution, big material nozzle; High frequency, long durability and long service life.
• Easy for clients to install in factory. Unique double layer belt-type design could finish all the processing procedure at one time, and only need one elevator.



Type		AL1K1C2-64/128/256
Channels		64 /128/256
Output(t/h)		1-3
Sorting accuracy (%)		>99.98
Optimized carryover(bad :good)		>8/1
Voltage (V)		~220(50Hz)
Power of main machine (kW)		2.0
Air Pressure (MPa)		0.6~0.8
Dimension(L*W*H)(mm)		2730*1820*1800
Weight (kg)		700



Our machines running in indian market for peanuts, the video website: /programs/view/2EJXtCmsFGc/
