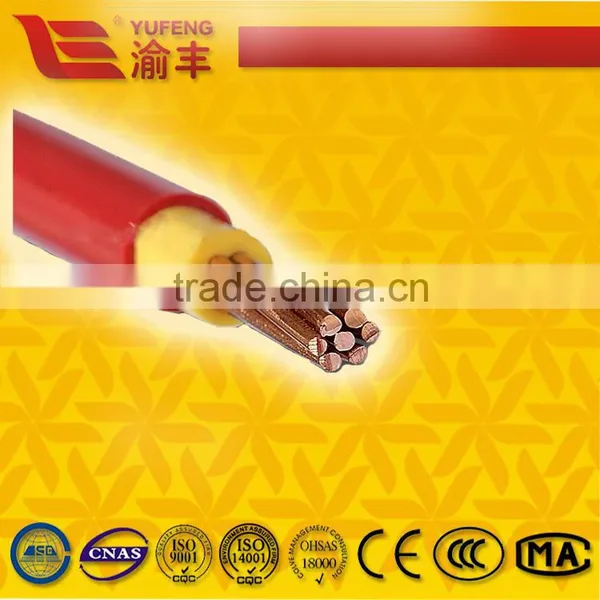

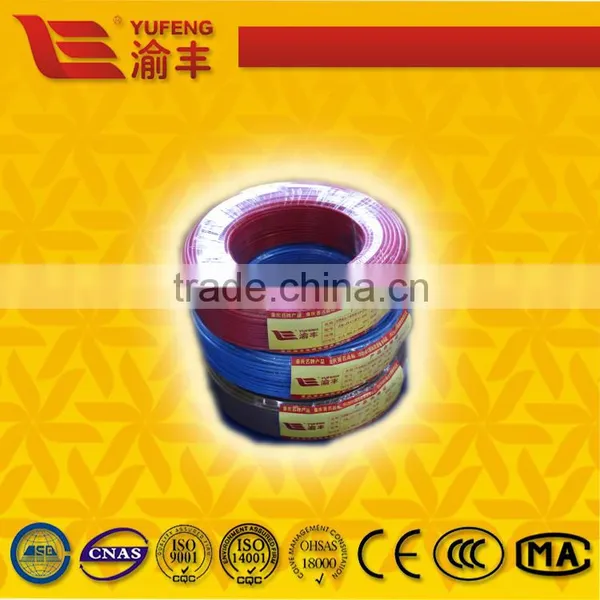

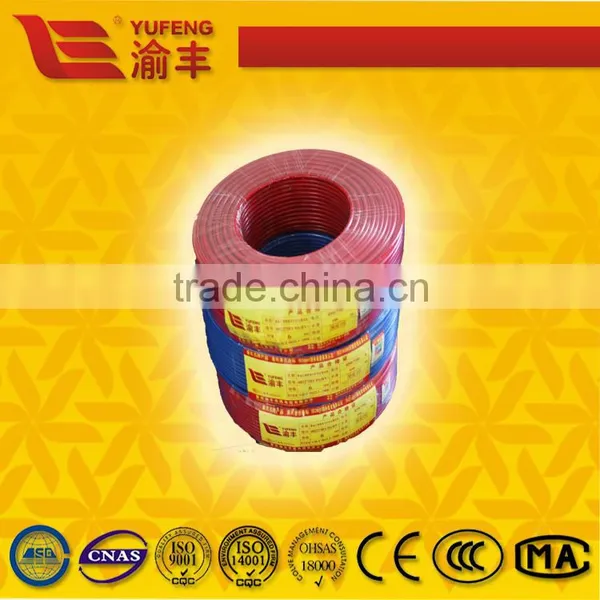

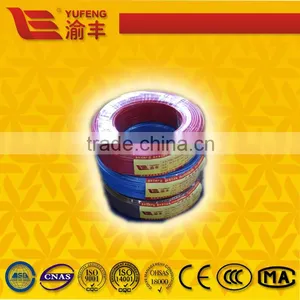

PVC Cover Electrical Wire THW /TW AWG 14 12 10 8 6 Solid /Strand Wire

Type

Description

Nominal sectional Area(mm² )

Cores

Rated Voltage (V)

Main Application

60227IEC01(BV)

General purpose single-core hard conductor non-sheath cable

1.5~400

1

450/750

Used for fixed installation in air or wire conduit

1.5(B)

1

60227IEC05(BV)

Internal wifing conductor temperature 70^oC single-core solid conductor non-sheath calbe

0.5~1.0

1

300/500

60227IEC02(RV)

General purpose single-core flexible conductor non-sheath cable

1.5~10

1

450/750

Mainly used for medium or light duty movable electrical appliances, instruments, household appliances ,power, lighting system and so on in flexing application.

60227IEC06(RV)

internal wiring conductor temperature 70^oC flexible conductor non-sheath cable

0.5~1.0

1

300/500

60227IEC52(RVV)

Light-type PVC sheath flexible cable

0.5~0.75

2~3

300/300

60227IEC53(RVV)

Normal PVC sheath flexible wire

0.75~2.5

2~5

300/500

RVV

Ordinary PVC-sheathed flexible cable

1.5~6.0

2

4.0

3~5

0.75~2.5

6

0.75~1.5

7~8

0.75~1.0

10,12,

15,16,19

RVS

PVC insulation stranded connection flexible wire

0.5~2.5

2

300/300

RVB

Copper core PVC insulated PVC sheathed flat type cable

0.5~2.5

2

BVVB

Copper core PVC insulation PVC sheath flat cable

0.75~10

2~3

300/500

Used for fixed installation in air or wire conduit in case of high mechanical protection and wet circumstances

BLVVB

Aluminum core PVC insulation PVC sheath flat cable

2.5~10

BVV

Light-type PVC sheath cable

0.75~10

1

BLVV

Aluminum core PVC insulation PVC sheath round cable

2.5~10

60227IEC10(BVV)

Light-type PVC sheath cable

1.5~10

2~5

60245IEC53(YZ)

Rubber sheathed cable

0.75~2.5

2~5

300/500

Used for light , medium, high duty movable electrical appliance

YZ

4~6

2~5

1.5~6

3+1

YC

1.5~95

1~4

450/750

1.5~25

5

2.5~95

3+1

60245IEC81(YH)

16~95

1

none

BV

Copper conductor PVC-sheathed flexible cable

0.75(B),1.0(B)

1

300/500

Used for fixed installation in air or wire conduit

BLV

Aluminum core PVC insulation cable

2.5~400

1

450/750

BVR

Copper core PVC insulation flexible cable

2.5~70

1

450/750

Used for fixed in flexing application

RVVP

 PVC insulation shield PVC sheath flexible cable

0.3~2.5

1

300/300

0.12~1.5

2

0.12~1.5

3

0.12~0.4

4~10,12,14,

16,19,20,24

AVVR

0.12~0.4

3~10,12,14,

16,18~20,24
