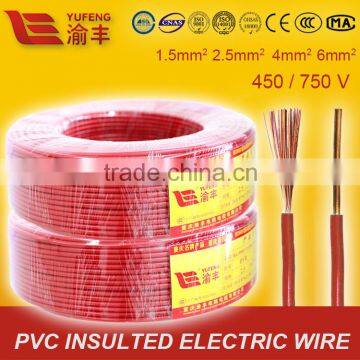

IEC Standard CCC Certified Factory Offer Electrical Wire Specifications
Specifications

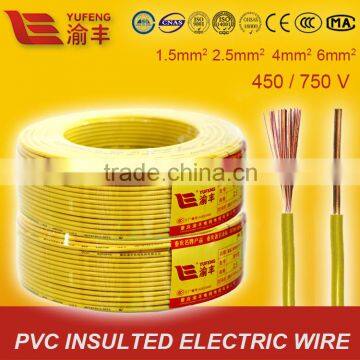

Conductor: Copper / Aluminum - Solid/Stranded
Insulation: PVC
Production Standard: GB/T 5023.3-2008 / IEC 60227-3: 1997 / JB/T 8734.2-2012

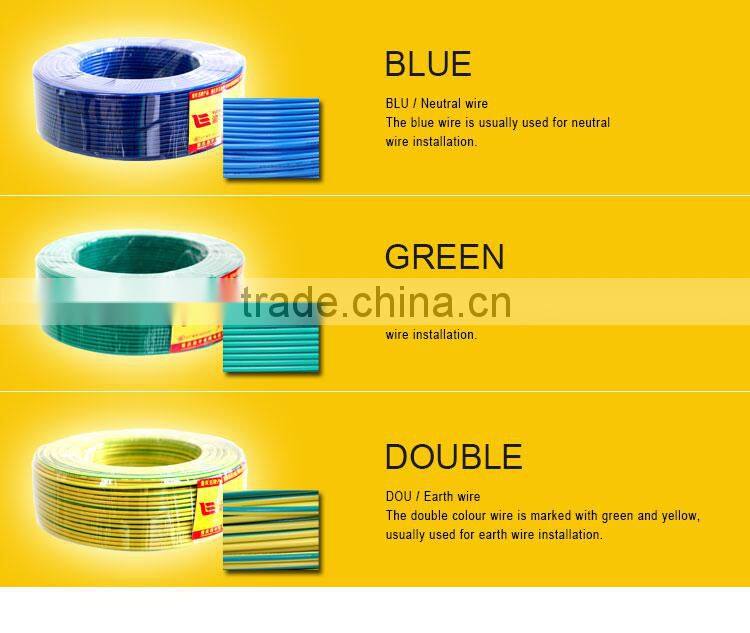

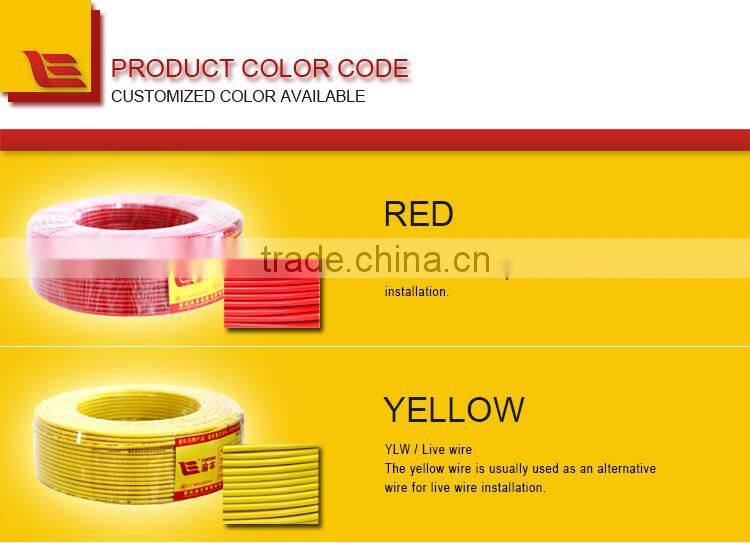

Color: Red, Yellow, Blue, Green, Purple, Gray, Black, White.
Packaging:100 meters per roll / Customizable
Certification:CE,CCC,ISO9001,ISO14001, OHSAS 18001, ASG, CNAS
Type |
Description |
Nominal sectional Area(mm2 ) |
Cores |
Rated Voltage (V) |
Main Application |
60227IEC01(BV) |
General purpose single-core hard conductor non-sheath cable |
1.5~400 |
1 |
450/750 |
Used for fixed installation in air or wire conduit |
1.5(B) |
1 |
||||
60227IEC05(BV) |
Internal wifing conductor temperature 70oC single-core solid conductor non-sheath calbe |
0.5~1.0 |
1 |
300/500 |
|
60227IEC02(RV) |
General purpose single-core flexible conductor non-sheath cable |
1.5~10 |
1 |
450/750 |
Mainly used for medium or light duty movable electrical appliances, instruments, household appliances ,power, lighting system and so on in flexing application. |
60227IEC06(RV) |
internal wiring conductor temperature 70oC flexible conductor non-sheath cable |
0.5~1.0 |
1 |
300/500 |
|
60227IEC52(RVV) |
Light-type PVC sheath flexible cable |
0.5~0.75 |
2~3 |
300/300 |
|
60227IEC53(RVV) |
Normal PVC sheath flexible wire |
0.75~2.5 |
2~5 |
300/500 |
|
RVV |
Ordinary PVC-sheathed flexible cable |
1.5~6.0 |
2 |
||
4.0 |
3~5 |
||||
0.75~2.5 |
6 |
||||
0.75~1.5 |
7~8 |
||||
0.75~1.0 |
10,12, 15,16,19 |
||||
RVS |
PVC insulation stranded connection flexible wire |
0.5~2.5 |
2 |
300/300 |
|
RVB |
Copper core PVC insulated PVC sheathed flat type cable |
0.5~2.5 |
2 |
||

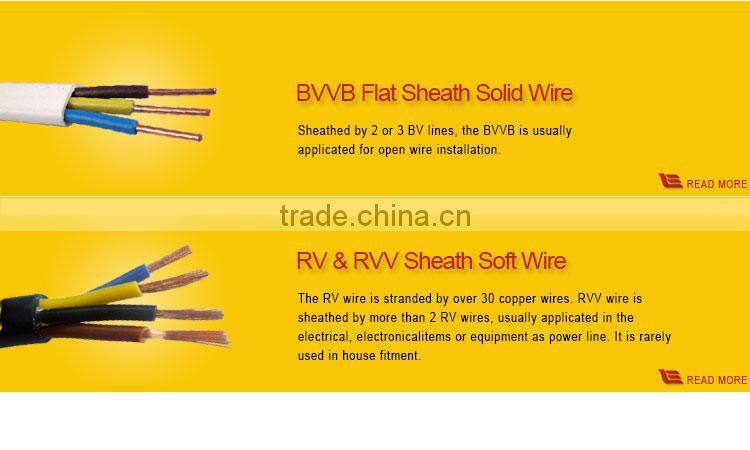

BVVB |
Copper core PVC insulation PVC sheath flat cable |
0.75~10 |
2~3 |
300/500 |
Used for fixed installation in air or wire conduit in case of high mechanical protection and wet circumstances |
BLVVB |
Aluminum core PVC insulation PVC sheath flat cable |
2.5~10 |
|||
BVV |
Light-type PVC sheath cable |
0.75~10 |
1 |
||
BLVV |
Aluminum core PVC insulation PVC sheath round cable
|
2.5~10 |
|||
60227IEC10(BVV) |
Light-type PVC sheath cable |
1.5~10 |
2~5 |
||
60245IEC53(YZ) |
Rubber sheathed cable |
0.75~2.5 |
2~5 |
300/500 |
Used for light , medium, high duty movable electrical appliance |
YZ |
4~6 |
2~5 |
|||
1.5~6 |
3+1 |
||||
YC |
1.5~95 |
1~4 |
450/750 |
||
1.5~25 |
5 |
||||
2.5~95 |
3+1 |
||||
60245IEC81(YH) |
16~95 |
1 |
none |
||
BV |
Copper conductor PVC-sheathed flexible cable |
0.75(B),1.0(B) |
1 |
300/500 |
Used for fixed installation in air or wire conduit |
BLV |
Aluminum core PVC insulation cable |
2.5~400 |
1 |
450/750 |
|
BVR |
Copper core PVC insulation flexible cable |
2.5~70 |
1 |
450/750 |
Used for fixed in flexing application |
RVVP |
PVC insulation shield PVC sheath flexible cable |
0.3~2.5 |
1 |
300/300 |
|
0.12~1.5 |
2 |
||||
0.12~1.5 |
3 |
||||
0.12~0.4 |
4~10,12,14, 16,19,20,24 |
||||
AVVR |
|
0.12~0.4 |
3~10,12,14, 16,18~20,24 |
