Help CenterJSQ-1 Flow Meter
Related Products
Specifications

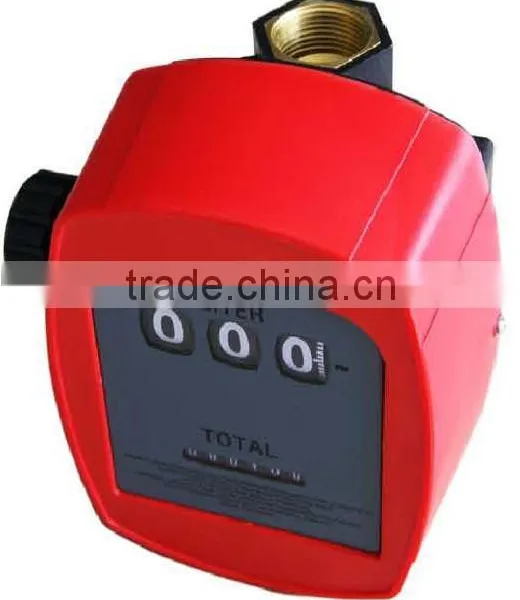

AILE 'S JSQ-1 is an oscillating disk mechanical volumetric liter-counter designed .AILE 'S JSQ-1 is an oscillating disk mechanical volumetric liter-counter designed and
constructed for precise measurements during the transfer of diesel oil and any other
liquids compatible with the construction material.the liter-counter can be used in both
gravitational systems and circuits with motor pumps or manual circuits equipped with
a by-pass.
USE
The liter-counter is ready for use.In order to set the partial counter to zero,rotate the reset
knob(no.20 in the exploded view drawing)clockwise,whereas the total indicator cannot be
set to zero.we discourage using the JSQ-1 on surfaces exposed to direct sunlight where
temperatures may exceed the maximum recommend values(+50 ).In order to ensure ideal
operation,we recommend using the liter-counter in combination with another filter.
TECHNICAL
Mechanism Oscillating disk
Flow 20~80 Liters/min
Work pressure 0.1~3.5bar
OOOO
Operation temperature -10 ~ +50
Flow resistance(at 80L/min of diesel oil) 0.3bar
Precision after setting 1%
Partial indicator max999Liters
Total indicator maw999999 Liters
Resolution 0.1 Liters
Connections 1"BSP
Weight 1.5Kg
