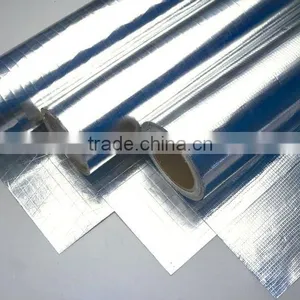

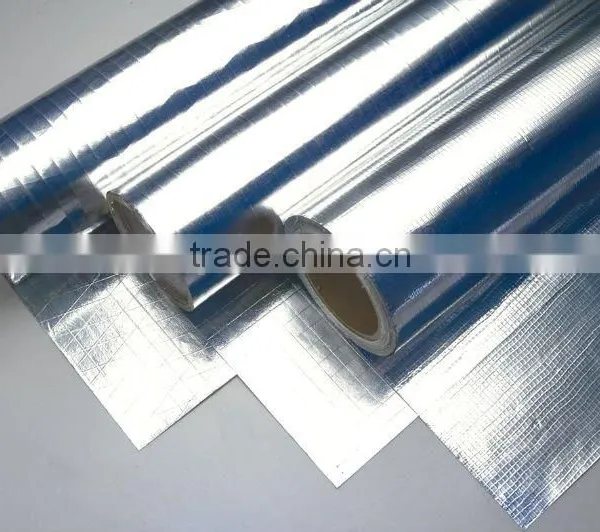

DFR-201A
D/S Reflective Aluminum Foil Insulation
Description & Application
A medium duty, F/R Grade D/S Foil Insulation. It is made from 2 outer layers of pure aluminum foil and 1 layer natural Kraft paper. These layers are bonded together with F/R Glue and reinforced with 3-way fiberglass scrim. It is ideally used as sarking and insulation under roofs, in walls behind cladding or under timber floors, for residential and commercial building. Combining with glasswool / rockwool / mineral wool / foam insulation, it is excellent as a vapor barrier and reflective aluminum foil insulation for air-conditioning ducts, pipes and vessels.
Product Construction
Composition |
Description |
Value (English) |
Value (Metric) |
Foil |
Aluminum |
0.28 mil |
7 micron |
Reinforcing - MD |
Fiberglass |
2 / inch |
8 / 100mm |
Reinforcing - XD |
Fiberglass |
3 / inch |
12 / 100mm |
Adhesive |
Flame-Retardant Glue |
------ |
------ |
Kraft |
Natural |
61 lbs / 3000 ft2 |
100 gsm |
Adhesive |
Flame-Retardant Glue |
------ |
------ |
Foil |
Aluminum |
0.28 mil |
7 micron |
Typical Physical Properties
Physical Properties |
Test Method |
Value (English) |
Value (Metric) |
Basis Weight |
Scale |
34.8 lbs / 1000 ft2 |
170 gsm |
Permeance (WVTR) |
ASTM E96, Procedure A |
0.02 perm |
1.15 ng/N.s |
Tensile Strength - MD |
ASTM D828 |
58 lbs/In |
255 N/25mm |
Tensile Strength - XD |
ASTM D828 |
29.5 lbs/In |
130 N/25mm |
Burst Strength |
ASTM D774 |
79.8 psi |
55 N/cm2 |
Low Temperature Resistance |
ASTM D1790 4 hrs @-40 °F (- 40 °C) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
High Temperature Resistance |
ASTM D1790 4 hrs @ +240 °F (+116 °C) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
Emissivity |
ASTM E408 |
0.03 |
0.03 |
Fire Rating |
UL 723 / ASTM E84 |
Less 25 / 50 - Passed |
Less 25 / 50 - Passed |
Fire Rating |
BS 476 Pt 6 & 7 |
Class O - Passed |
Class O - Passed |
Available Roll Width: 1.25m, 1.35m
Remarks
1. The data above are typical results and subject to change without notice.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: ±0.5%.
3. The products should be stored at room temperature, kept from wet and kept away heat source.
4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
