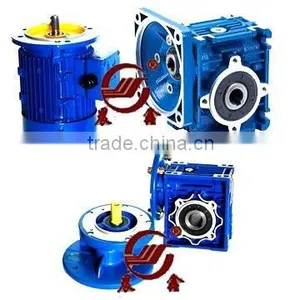

NMRV Worm Shaft Gearbox Like Bonfiglioli Gearbox

Name: NMRV Worm Shaft Gearbox Like Bonfiglioli Gearbox
Brand: Chen Xin
SKU: 104133389

US$ 24.5 - 335 MOQ: 1 Piece

Key Specifications

Gearing Arrangement:

Worm

Output Torque:

2.6---1195N.M

Rated Power:

0.06kw---15kw

Taizhou Sihai Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Gearing Arrangement Worm

Output Torque 2.6---1195N.M

Rated Power 0.06kw---15kw

Input Speed 1400rpm

Output Speed 280-14rpm

Place of Origin Zhejiang, China

Model Number NRV025---150

Brand Name Chen Xin

Specifications

1.NMRV worm shaft gearbox
2.Vertical distance between the centers of worm shaft and gear varies,25mm to 150mm

Motovario-like NMRV worm shaft gearboxes,applied for conveyor belts or other work-flow devices

Features

Wide transmission rate, strong output torque
Structure: base-mounted, input shaft, input flange, additional single or double output shafts
Compact mechanical structure, light weight, small volume
Good temperature change resistance
Smooth operation with lower noise or vibration
Easy mounting, free linking, high efficiency
Wide range of application

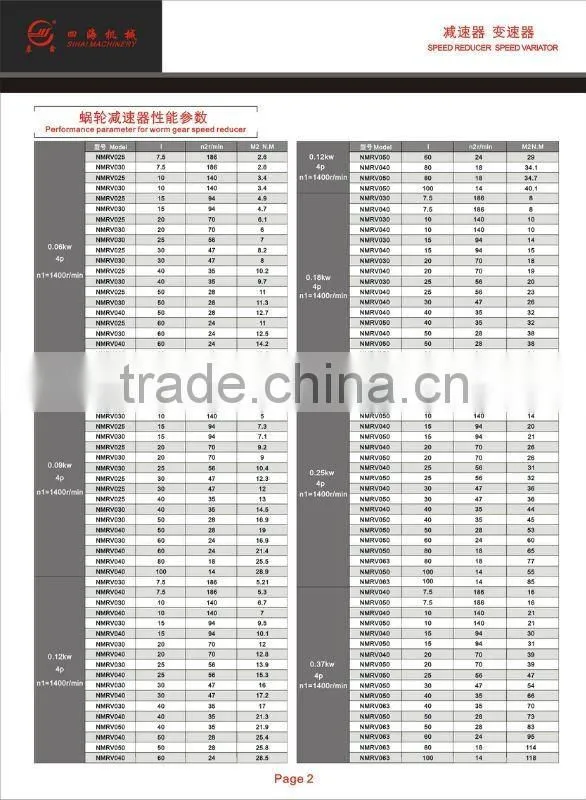

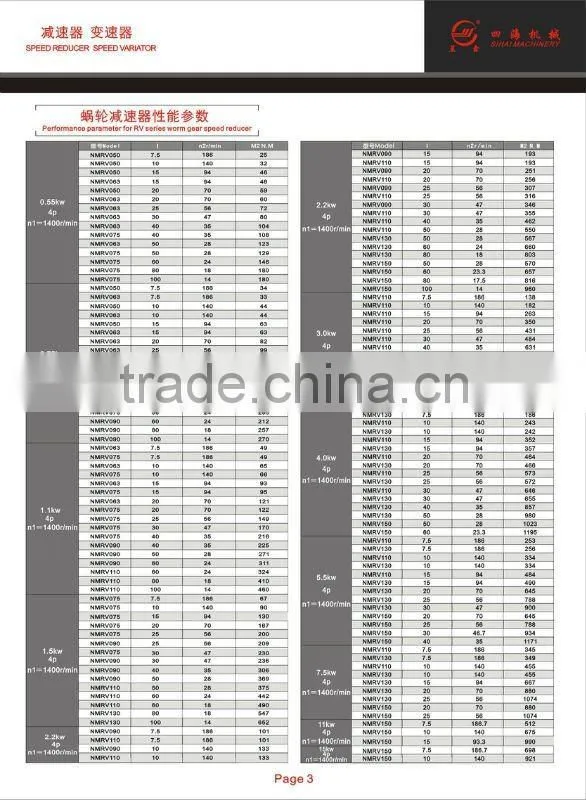

Technical data:

Model	RV025 030 040 050 063 075 090 110 130 150
Single unit versions	NMRV - fitted for motor flanged coupling, NRV - with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft,
Power	0.06----15KW
Single unit reduction ratio	1:5 7.5 10 15 20 25 30 40 50 60 80 100
Output torque	2.6---1195N.M
Application	Widely used in flow-line transmission devices,like conveyor belts,etc
After-sale service	Warranty,one year,subject to proper operation and installation;during warranty,free components or complete unit will be provided to replace the damaged or broken ones from quality problems;free technical support all the time.
