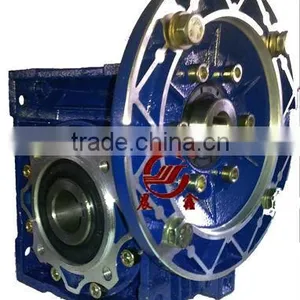

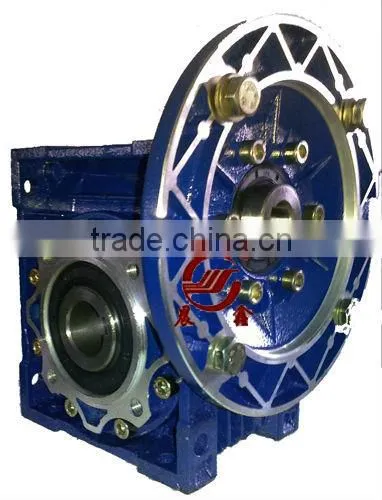

NMRV Worm Gear Reduction Units,Motovario Version
US$ 24.5 - 335
MOQ: 1 Piece
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
2.6---1195N.M
Rated Power:
0.06-15kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Power Transmission Worm Gear Speed Gearbox,NMRV SeriesUS$ 24.5 - 335MOQ: 1 Piece -
NMRV Worm Gearbox as Motovario TypeUS$ 24.5 - 335MOQ: 1 Piece
-
NMRV Conveyor Motor GearboxUS$ 24.5 - 335MOQ: 1 Piece
-
NMRV Mechanical Right Angle GearboxUS$ 24.5 - 335MOQ: 1 Piece
-
Chinese Industrial Power Transmission Motovario Like NMRV Series Electric Motor Worm Speed ReducerUS$ 23 - 300MOQ: 1 Piece
Gearing Arrangement
Worm
Output Torque
2.6---1195N.M
Rated Power
0.06-15kw
Input Speed
1400rpm
Output Speed
14-280rpm
Place of Origin
Zhejiang, China
Model Number
RV025-RV150
Brand Name
Chen Xin
Specifications
1.NMRV worm gear reduction unit2.Vertical distance between the centers of worm shaft and gear,25mm---150mm,with lower noise
NMRV worm gear reduction unit ,applied for work flow for motor speed reduction,featured with compact mechanical structure, light weight, and smooth operation.
Features
- Wide transmission rate, strong output torque
- Structure: base-mounted, input shaft, input flange, additional single or double output shafts
- Compact mechanical structure, light weight, small volume
- Good temperature change resistance
- Smooth operation with lower noise or vibration
- Easy mounting, free linking, high efficiency
- Wide range of application
Applications
- Widely used in material handing, automation, machine tool, aerospace, food, packing, pharamceutical, printing industry that require to lower the speed driven by motors or other engines.
| Model | RV025 030 040 050 063 075 090 110 130 150 |
| Single unit versions |
NMRV - fitted for motor flanged coupling,
NRV - with input shaft,
NMRV-E motor flanged coupling with worm extension shaft,
NRV-E with double extension worm shaft,
|
| Power | 0.06----15KW |
| Single unit reduction ratio | 1:5 7.5 10 15 20 25 30 40 50 60 80 100 |
| Output torque | 2.6---1195N.M |
| Worm shaft | 20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm |
| Worm wheel | worm mandrel is HT250,and worm ring gear,ZQSn10-1 |
ISO 9001:2008 certificate,

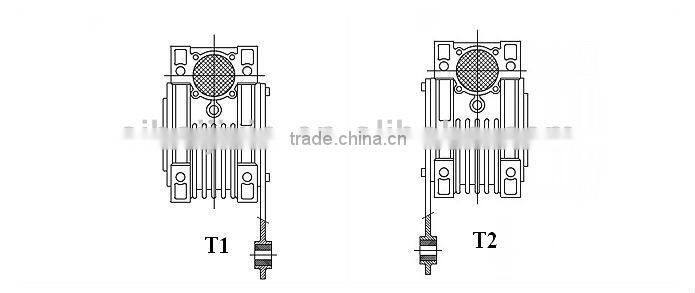

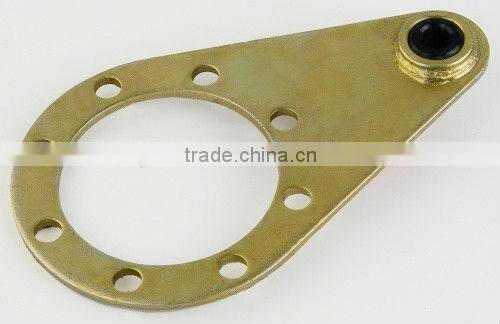

Torque arm mounted position,

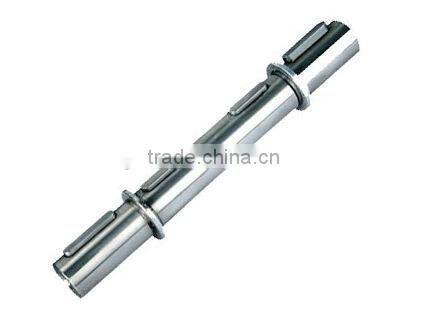

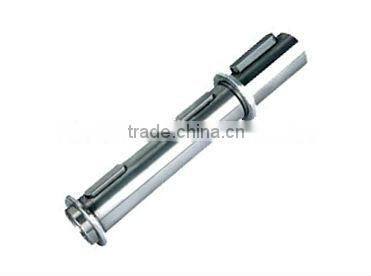

Output shaft position,( single & double ),

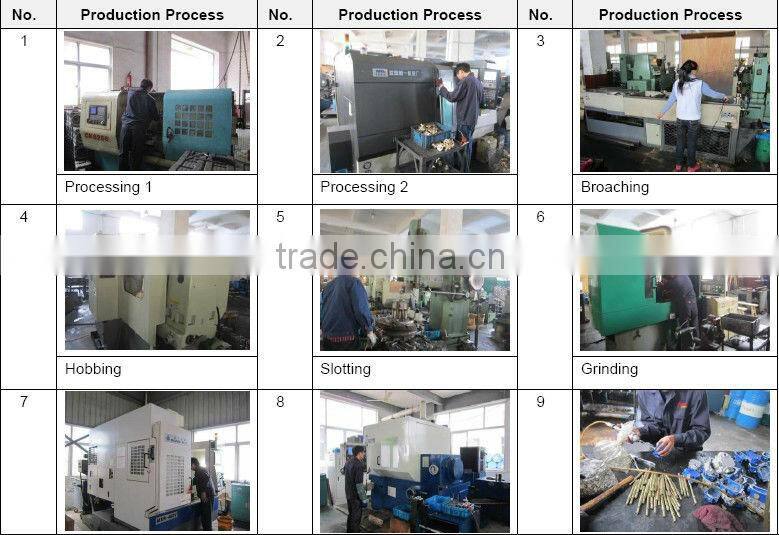

Machines for production,

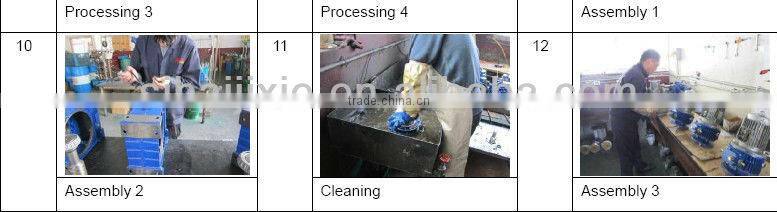

Production and assembly,

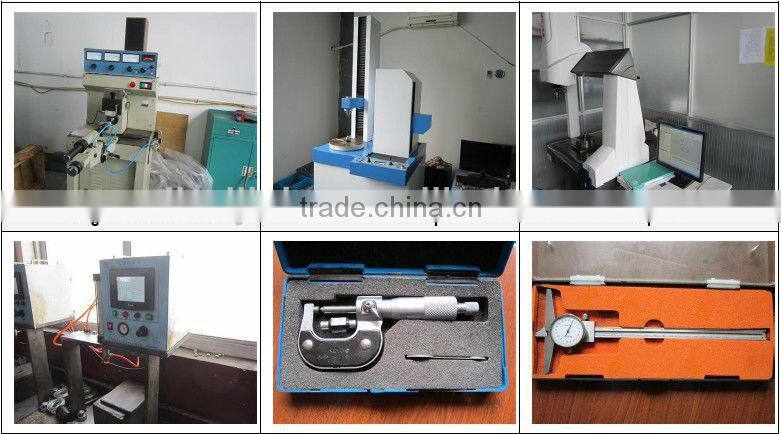

Precision testing and elements analysing apparatus,
Package for container loading,one pc / carton,several cartons / wooden pallet,
