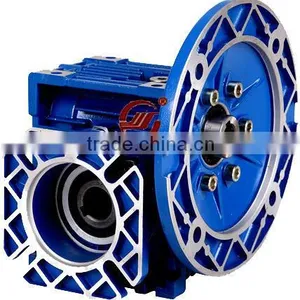

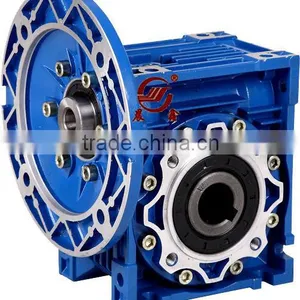

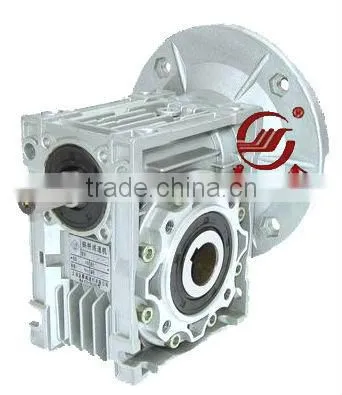

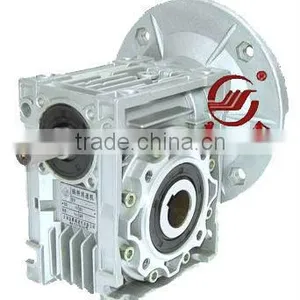

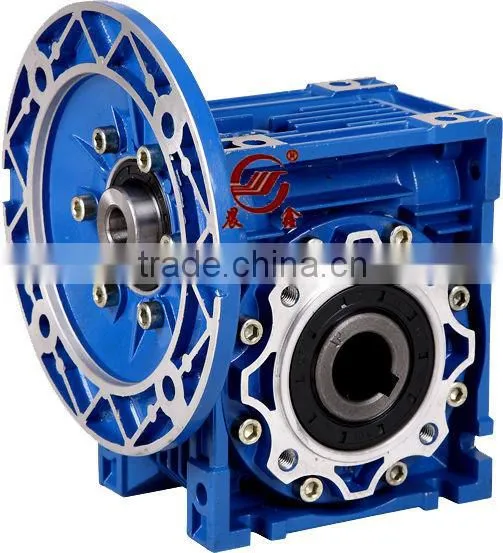

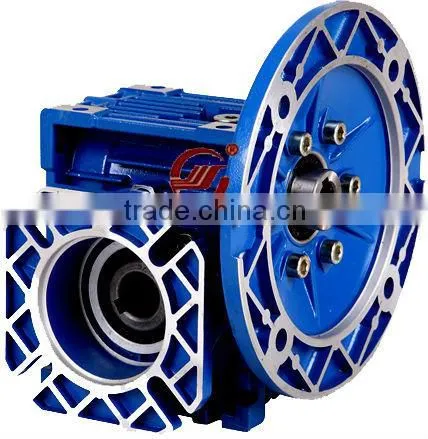

NMRV Mechanical Gearbox
US$ 24.5 - 335
MOQ: 1 Piece
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
2.6---1195N.M
Rated Power:
0.06-15kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NMRV Mechanical Universal GearmotorsUS$ 24.5 - 335MOQ: 1 Piece -
NMRV Motovario-like Worm Wheel GearboxesUS$ 24.5 - 335MOQ: 1 Piece
-
Motovario Version NMRV Speed Reduction Worm GearboxUS$ 24.5 - 335MOQ: 1 Piece
-
Speed Reduction NMRV Wormgear Speed GearboxUS$ 24.5 - 335MOQ: 1 Piece
-
Motovario-like NMRV Motor Reducer GearboxUS$ 24.5 - 335MOQ: 1 Piece
Gearing Arrangement
Worm
Output Torque
2.6---1195N.M
Rated Power
0.06-15kw
Input Speed
1400rpm
Output Speed
14-280rpm
Place of Origin
Zhejiang, China
Model Number
RV025-RV150
Brand Name
Chen Xin
Specifications
1.NMRV mechanical universal gearbox2.Aluminium and cast iron body
3.Stable transmission,lower noise
4.Long-termed service
NMRV mechanical universal gearboxes,applied for work flow for motor speed reduction,featured with compact mechanical structure, light weight, and smooth operation.
Features
- Wide transmission rate, strong output torque
- Structure: base-mounted, input shaft, input flange, additional single or double output shafts
- Compact mechanical structure, light weight, small volume
- Good temperature change resistance
- Smooth operation with lower noise or vibration
- Easy mounting, free linking, high efficiency
- Wide range of application
Applications
- Widely used in material handing, automation, machine tool, aerospace, food, packing, pharamceutical, printing industry that require to lower the speed driven by motors or other engines.
| Model | RV025 030 040 050 063 075 090 110 130 150 |
| Single unit versions |
NMRV - fitted for motor flanged coupling,

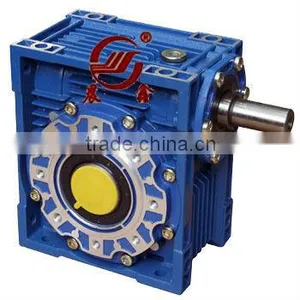

NRV - with input shaft,
NMRV-E motor flanged coupling with worm extension shaft,
NRV-E with double extension worm shaft,
|
| Power | 0.06----15KW |
| Single unit reduction ratio | 1:5 7.5 10 15 20 25 30 40 50 60 80 100 |
| Output torque | 2.6---1195N.M |
| Worm shaft | 20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm |
| Worm wheel | worm mandrel is HT250,and worm ring gear,ZQSn10-1 |
ISO 9001:2008 certificate,
Output flanges and mounted positions,
Torque arm mounted position,

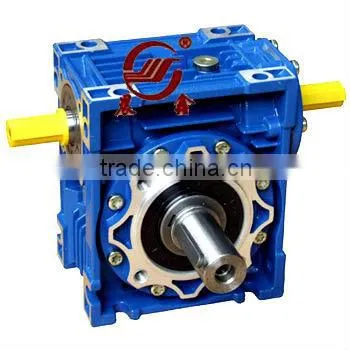

Output shaft position,( single & double ),
Package for container loading,one pc / carton,several cartons / wooden pallet,
