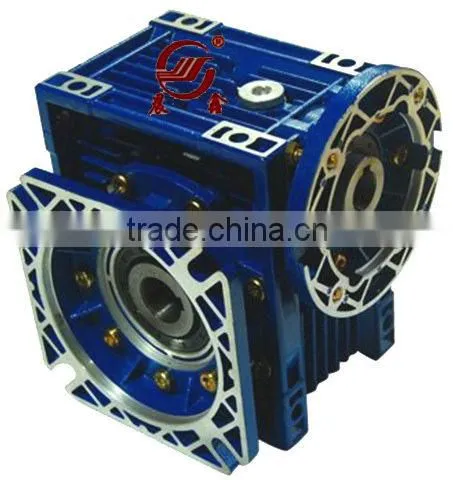

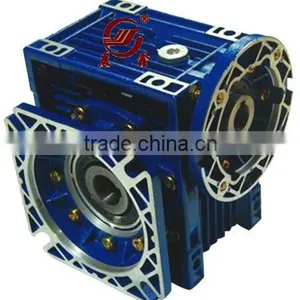

NMRV Motovario-like Worm Wheel Gearboxes
US$ 24.5 - 335
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
NMRV025---NMRV150
Brand Name:
Chenxin
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Motovario Version NMRV Speed Reduction Worm GearboxUS$ 24.5 - 335MOQ: 1 Piece -
Speed Reduction NMRV Wormgear Speed GearboxUS$ 24.5 - 335MOQ: 1 Piece
-
Motovario-like NMRV Motor Reducer GearboxUS$ 24.5 - 335MOQ: 1 Piece
-
NMRV Series Electric Motor With Worm GearUS$ 24.5 - 335MOQ: 1 Piece
-
NMRV Mechanical Variable Ratio GearboxUS$ 24.5 - 335MOQ: 1 Piece
Place of Origin
Zhejiang, China
Model Number
NMRV025---NMRV150
Brand Name
Chenxin
Material
Other, Aluminium,cast iron and bronze
Standard or Nonstandard
Standard
Specifications
1.NMRV worm wheel gearbox2.Aluminium and cast iron body
3.Stable transmission,lower noise
4.Long-termed service
NMRV worm wheel gearboxes,applied for work flow for motor speed reduction,featured with compact mechanical structure, light weight, and smooth operation.
Features
- Wide transmission rate, strong output torque
- Structure: base-mounted, input shaft, input flange, additional single or double output shafts
- Compact mechanical structure, light weight, small volume
- Good temperature change resistance
- Smooth operation with lower noise or vibration
- Easy mounting, free linking, high efficiency
- Wide range of application
Applications
- Widely used in material handing, automation, machine tool, aerospace, food, packing, pharamceutical, printing industry that require to lower the speed driven by motors or other engines.
| Model | RV025 030 040 050 063 075 090 110 130 150 |
| Single unit versions |
NMRV - fitted for motor flanged coupling,
NRV - with input shaft,
NMRV-E motor flanged coupling with worm extension shaft,
NRV-E with double extension worm shaft,
|
| Power | 0.06----15KW |
| Single unit reduction ratio | 1:5 7.5 10 15 20 25 30 40 50 60 80 100 |
| Output torque | 2.6---1195N.M |
| Worm shaft | 20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm |
| Worm wheel | worm mandrel is HT250,and worm ring gear,ZQSn10-1 |
ISO 9001:2008 certificate,

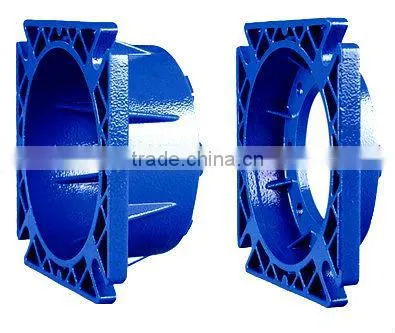

Output flanges and mounted positions,

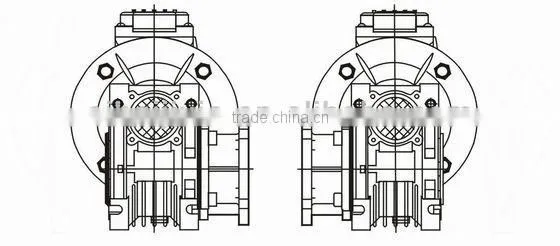

Torque arm mounted position,
Output shaft position,( single & double ),
Our enquipment and device for maching

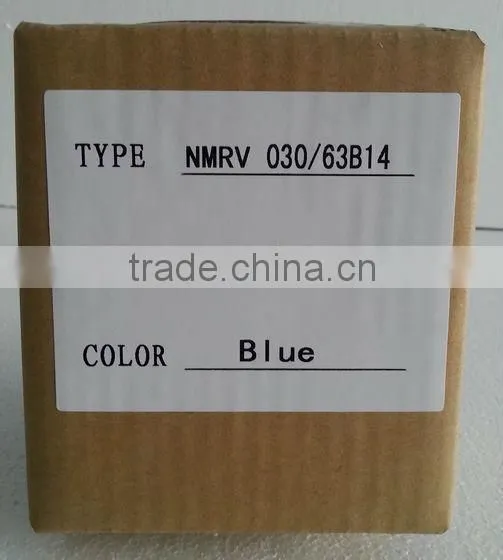

Package for container loading,one pc / carton,several cartons / wooden pallet,
