Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > UD Series Industrial Variable Gear Box

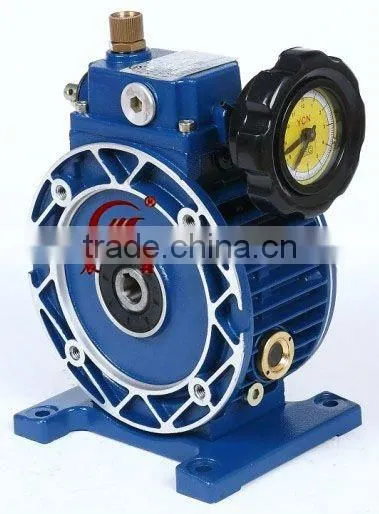

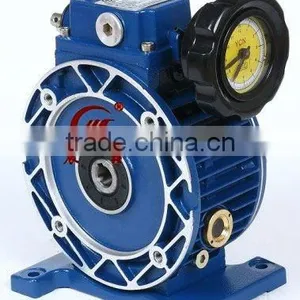

UD Series Industrial Variable Gear Box
US$ 78 - 230
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chen Xin
Model Number:
UDL0.18---UD0.75
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UD Series Mechanical Stepless Speed VariatorUS$ 78 - 230MOQ: 1 Piece -
UD Series Mechanical Speed VariatorUS$ 78 - 230MOQ: 1 Piece
-
Efficient Power-shift Transmission UD Series Stepless Speed VariatorUS$ 78 - 230MOQ: 1 Piece
-
UD Series Industrial Mechanical Speed VariatorUS$ 78 - 300MOQ: 1 Piece
-
UD Series Vertical Mounting Mechanical Speed VariatorUS$ 78 - 230MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Chen Xin
Model Number
UDL0.18---UD0.75
Gearing Arrangement
Planetary
Output Torque
1.5---118 N.M
Rated Power
0.18---0.75kw
Input Speed
1400rpm
Output Speed
1000---200rpm
Specifications
1.Planetary variable gear box2.Body material,aluminium alloy & cast iron
3.Convenient to be mounted with gear,motor
Planetary stepless industrial variable gear box,mechanical speed variator
1) High precision of speed regulating for speed variator,up to 0.5-1 round
2) Large speed-changing range,1:1.4 to 1:7 freely
3) High intensity and long serving time
4) Convenient to regulate speed
5) Continuously workable, bidirectional working direction,stable transmission with lower noise
2) Large speed-changing range,1:1.4 to 1:7 freely
3) High intensity and long serving time
4) Convenient to regulate speed
5) Continuously workable, bidirectional working direction,stable transmission with lower noise
6) Fully sealed and suitable to any environment
7) Compact structure, small size

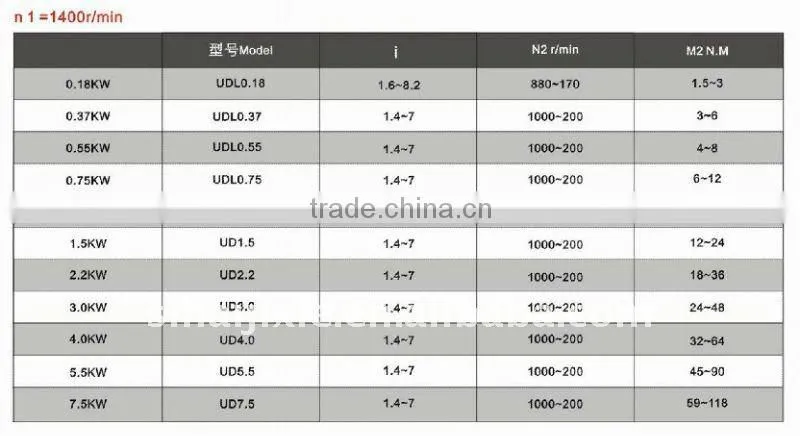

8) Based on the rated motor power,assorted as UDL0.18,UDL0.37,UDL0.55,UDL0.75,aluminium alloy body;UD1.1,UD1.5,UD2.2,UD3.0,UD4.0,UD5.5,UD7.5,cast iron body
7) Compact structure, small size
8) Based on the rated motor power,assorted as UDL0.18,UDL0.37,UDL0.55,UDL0.75,aluminium alloy body;UD1.1,UD1.5,UD2.2,UD3.0,UD4.0,UD5.5,UD7.5,cast iron body
9) Mounted way,vertical and horizontal(with foot),easy to be combined with gears or gearboxes
