Efficient Power-shift Transmission UD Series Stepless Speed Variator
US$ 78 - 230
/ Piece
1 Piece(Min. Order)
- Shanghai Ningbo
- T/T Credit Card
You May Like
-
UD Series Industrial Mechanical Speed Variator
-
UD Series Vertical Mounting Mechanical Speed Variator
-
Combined Deceleration Gear Box,NMRV+UDL
-
Combined Deceleration Gear Box Of NMRV Worm Gear Reducer & UD Variator
-
UDL Series Motor Speed Variator With Foot
-
Worm Gears With Pre-stage PC Helical Unit Gearbox
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chen Xin | |
| Model Number | UDL0.18---UD7.5 | Gearing Arrangement | Planetary | |
| Output Torque | 1.5---118 N.M | Rated Power | 0.18kw---7.5kw | |
| Input Speed | 1400rpm | Output Speed | 1000---200rpm |
Product Description
Specifications
1.Planet cone-disk stepless variator2.Body material,aluminium alloy & cast iron
3.Convenient to be mounted with gear,motor
UD planetary stepless speed variator,
1) High precision of speed regulating for speed variator,up to 0.5-1 round
2) Large speed-changing range,1:1.4 to 1:7 freely
3) High intensity and long serving time
4) Convenient to regulate speed
5) Continuously workable, bidirectional working direction,stable transmission with lower noise
2) Large speed-changing range,1:1.4 to 1:7 freely
3) High intensity and long serving time
4) Convenient to regulate speed
5) Continuously workable, bidirectional working direction,stable transmission with lower noise
6) Fully sealed and suitable to any environment
7) Compact structure, small size
8) Based on the rated motor power,assorted as UDL0.18,UDL0.37,UDL0.55,UDL0.75,aluminium alloy body;UD1.1,UD1.5,UD2.2,UD3.0,UD4.0,UD5.5,UD7.5,cast iron body
7) Compact structure, small size
8) Based on the rated motor power,assorted as UDL0.18,UDL0.37,UDL0.55,UDL0.75,aluminium alloy body;UD1.1,UD1.5,UD2.2,UD3.0,UD4.0,UD5.5,UD7.5,cast iron body
9) Mounted way,vertical and horizontal(with foot),easy to be combined with gears or gearboxes
10)Bidirectional rotation,Control handwhel positionable on either side
11)Slipping speed to max load at 5%,Regulation sensibility: 0,5 rpm
11)Slipping speed to max load at 5%,Regulation sensibility: 0,5 rpm

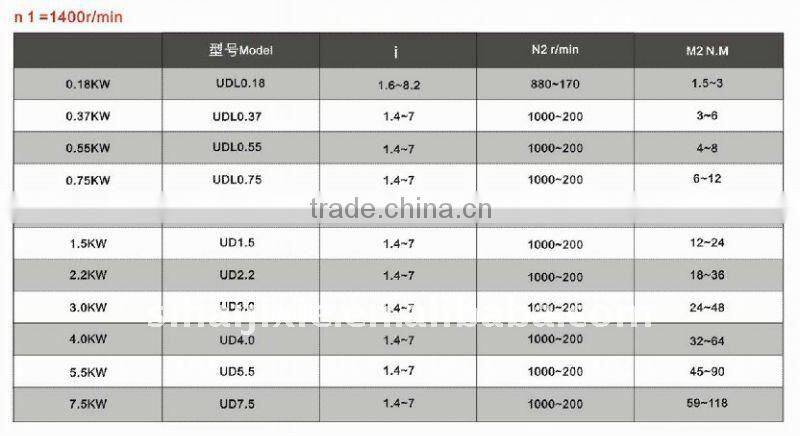

0.18kw,etc is the rated motor power and i means range of ratio adjustment,N2 r/min,output speeed,
M2 N.M for output torque.
