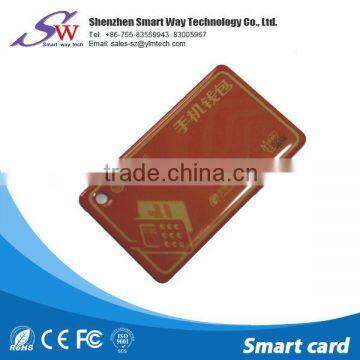

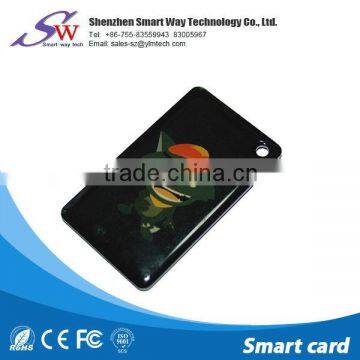

New Technology T5577 Rfid Card

The T5577 is a contactless R/W IDentification IC (IDIC®) for applications in the
125-kHz frequency range. A single coil, connected to the chip, serves as the IC’s
power supply and bi-directional communication interface. The antenna and chip together form a transponder or tag.The on-chip 330-bit EEPROM (10 blocks, 33 bits each) can be read and written blockwisefrom a reader. Block 0 is reserved for setting the operation modes of theT5577 tag. Block 7 may contain a password to prevent unauthorized writing.Data is transmitted from the IDIC using load modulation. This is achieved by damping the RF field with a resistive load between the two terminals Coil 1 and Coil 2. The IC receives and decodes 100% amplitude-modulated (OOK) pulse-interval-encoded bit
streams from the base station or reader.Multifunctional 330-bit Read/Write RF Identification IC T5577 4874D

APPLICATIONS
1,Logistics automation

2,Anticounterfeiting
3,Access control
4,Industrial transponder

SPECIAL FEATURES
  Contactless Read/Write Data Transmission
• Radio Frequency fRF from 100 kHz to 150 kHz
• e5550, e5551, T5557 Binary Compatible
• Extended Mode
• Small Size, Configurable for ISO/IEC 11784/785 Compatibility
• 75 pF On-chip Resonant Capacitor (Mask Option)
• 7 × 32-bit EEPROM Data Memory Including 32-bit Password
• Separate 64-bit Memory for Traceability Data
• 32-bit Configuration Register in EEPROM to Setup:
– Data Rate
• RF/2 to RF/128, Binary Selectable, or
• Fixed e5550 Data Rates
– Modulation/Coding
• FSK, PSK, Manchester, Bi-phase, NRZ
– Other Options
• Password Mode
• Max Block Feature
• Answer-On-Request (AOR) Mode
• Inverse Data Output
• Direct Access Mode
• Sequence Terminator(s)
• Write Protection (Through Lock-bit per Block)
• Fast Write Method (5 Kbps versus 2 Kbps)
• OTP Functionality
• POR Delay up to 67 ms

RF card structure
