high quality id cards T5577 for door login

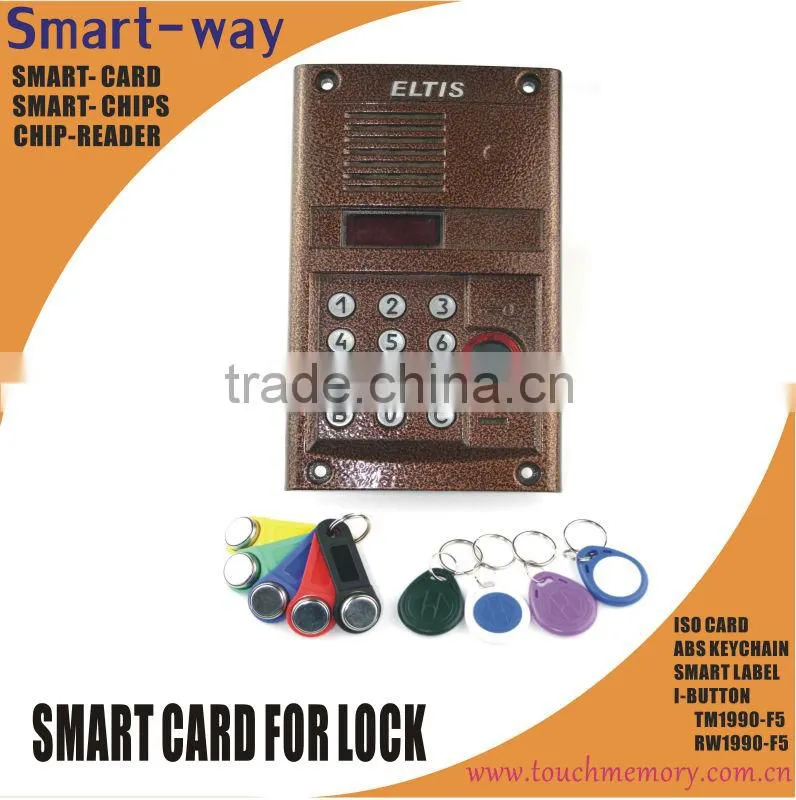

TM card:rw1990a,tm1990a,ds1990,rw1990 RFID:t5577,em4100,em4305,tk4100,mifare card
The T5577 is a contactless R/W IDentification IC (IDIC®) for applications in the
125-kHz frequency range. A single coil, connected to the chip, serves as the IC’s
power supply and bi-directional communication interface. The antenna and chip together form a transponder or tag.The on-chip 330-bit EEPROM (10 blocks, 33 bits each) can be read and written blockwisefrom a reader. Block 0 is reserved for setting the operation modes of theT5577 tag. Block 7 may contain a password to prevent unauthorized writing.Data is transmitted from the IDIC using load modulation. This is achieved by damping the RF field with a resistive load between the two terminals Coil 1 and Coil 2. The IC receives and decodes 100% amplitude-modulated (OOK) pulse-interval-encoded bit
streams from the base station or reader.Multifunctional 330-bit Read/Write RF Identification IC T5577 4874D

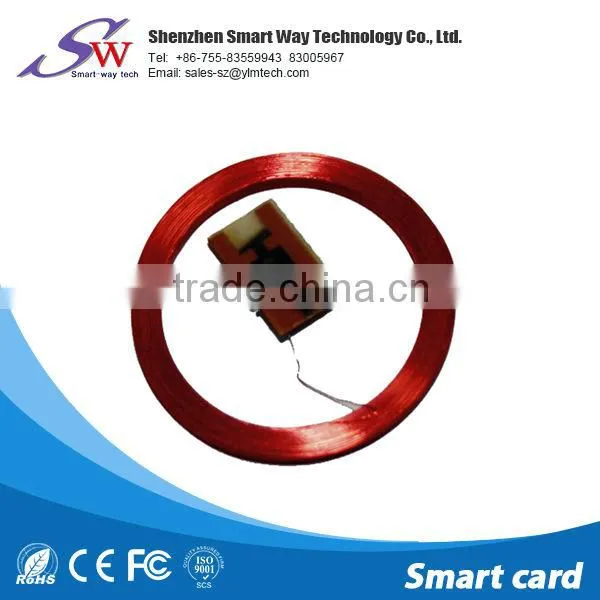

RF card structure
SPECIAL FEATURES
Contactless Read/Write Data Transmission
• Radio Frequency fRF from 100 kHz to 150 kHz
• e5550, e5551, T5557 Binary Compatible
• Extended Mode
• Small Size, Configurable for ISO/IEC 11784/785 Compatibility
• 75 pF On-chip Resonant Capacitor (Mask Option)
• 7 × 32-bit EEPROM Data Memory Including 32-bit Password
• Separate 64-bit Memory for Traceability Data
• 32-bit Configuration Register in EEPROM to Setup:
– Data Rate
• RF/2 to RF/128, Binary Selectable, or
• Fixed e5550 Data Rates
– Modulation/Coding
• FSK, PSK, Manchester, Bi-phase, NRZ
– Other Options
• Password Mode
• Max Block Feature
• Answer-On-Request (AOR) Mode
• Inverse Data Output
• Direct Access Mode
• Sequence Terminator(s)
• Write Protection (Through Lock-bit per Block)
• Fast Write Method (5 Kbps versus 2 Kbps)
• OTP Functionality
• POR Delay up to 67 ms
APPLICATION
- Access Control & Security
- Consumer electronics
- Health-care
- Information collection and exchange
- Loyalty and coupons
- E-Payments
- Transport Staff Identification
- Loyalty & Membership management Time Attendance
- Hotel room control access
- Parking control access
Our products have been exported all over the world and widely used in banks, transportations, insurance, Telecom, hospitals, schools, supermarkets, parkings, access control and so on.
WHAT IS RFID?
Radio-frequency identification (RFID) is the wireless use of electromagnetic fields to transfer data, for the purposes of automatically identifying and tracking tags attached to objects. The tags contain electronically stored information. Some tags are powered by electromagnetic induction from magnetic fields produced near the reader. Some types collect energy from the interrogating radio waves and act as a passive transponder.
Unlike a barcode, the tag does not necessarily need to be within line of sight of the reader, and may be embedded in the tracked object. Radio frequency identification (RFID) is one method for Automatic Identification and Data Capture (AIDC).
RFID tags are used in many industries. An RFID tag attached to an automobile during production can be used to track its progress through the assembly line. Pharmaceuticals can be tracked through warehouses. Livestock and pets may have tags injected, allowing positive identification of the animal. Clothing tags. Jewellry anti-thief tags. Access control to buildings, parkings, hotel rooms, etc.
PRODUCTS DETAILS
Commodity |

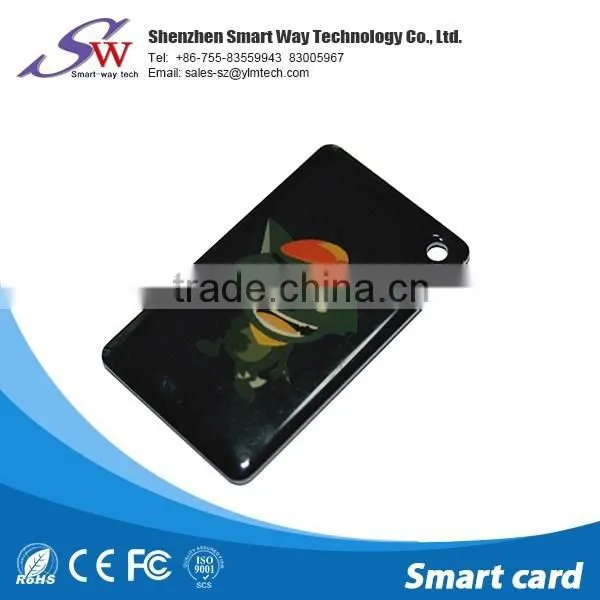

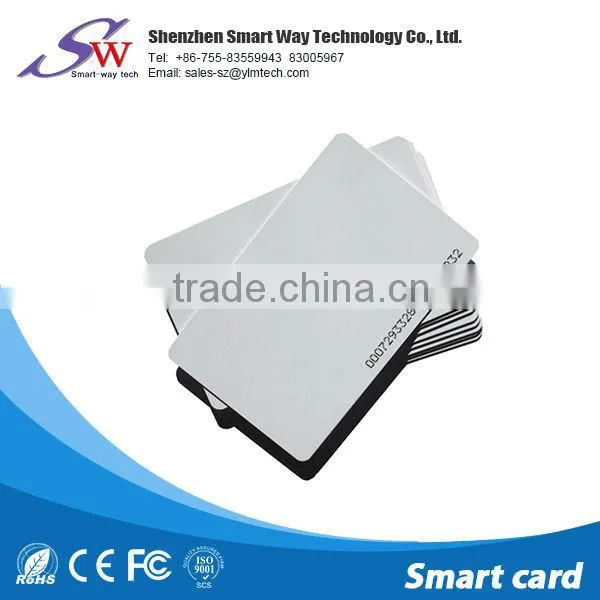

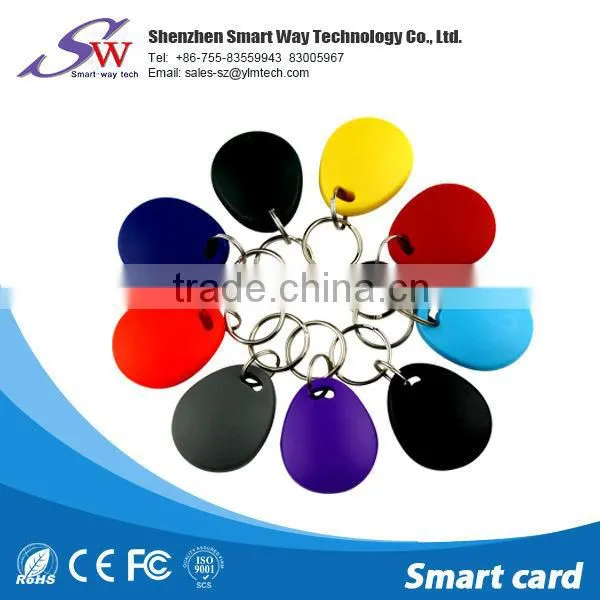

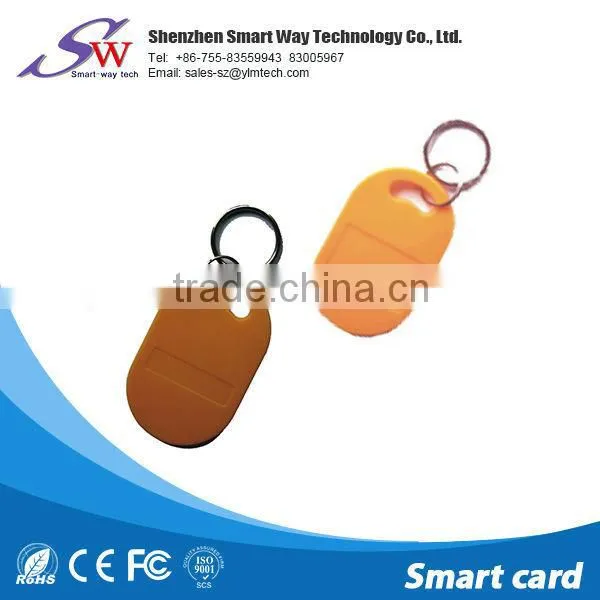

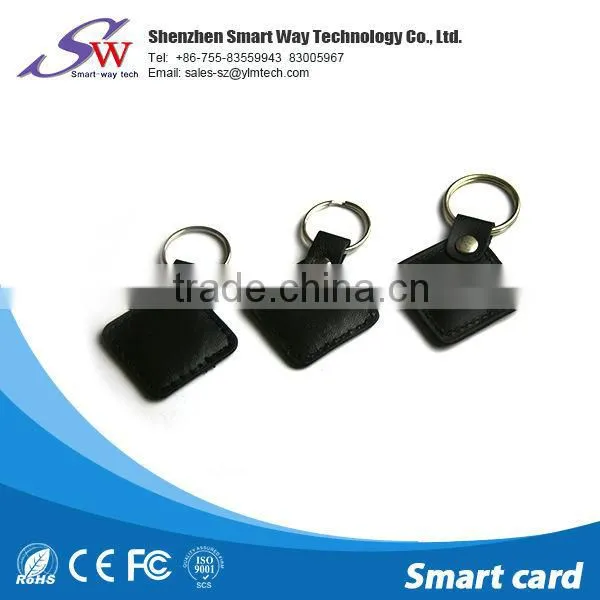

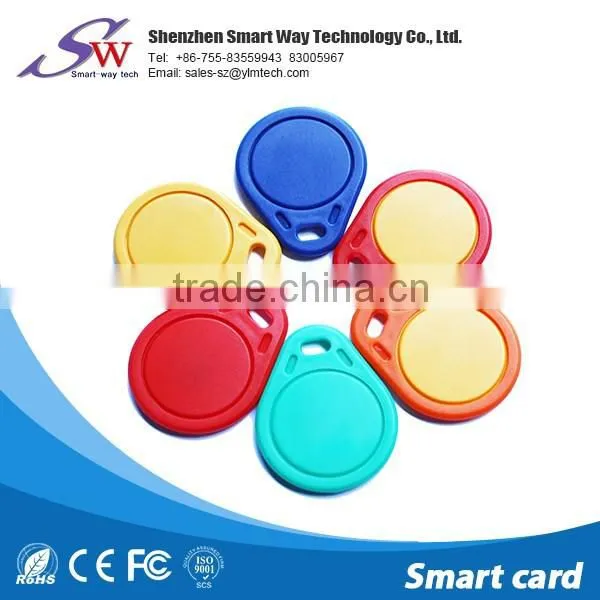

Keyfob, card, key tag, coin, customized format, keychain, etc. |
Stock size |
85.5*54,70*40,73*23, 50*50,45*45,43*26, 36*20, 35*35, 30*15, 32*32, 37*25, 32*27, 19*35, φ25,φ30, φ45,φ50,etc |
Chip Available |
LF: TK4100, EM4100, EM4102, EM4450,Hiatg1, Hitag2, HitagS256, HitagS2048, Atmel temic 556 HF: Ntag203, S50, S70, Desfire,Ultralight, Icode1, Icode Sli , Legic mim256, JWL872, TI256,Fudan F08 UHF: Impinj M4 / Alien H3 |
Material |
PVC/PET/ABS |
Print (Depend on format) |
- Full color offset printing- Silk |
- Screen printing- Silver/Gold silk | |
- Screen printing background | |
Optional Technique |
- Special function option Anti-metal layer |
- Custom logos/artworks printing/ Laser engrave | |
- ID Number Printing Jet dot printing | |
-URL,text,number.etc encoding/lock to read only |
2500pieces per box,the size is about 410*220*220mm,the weight is about 12kg.
Delivery time:3 days for samples,3 to 5 days for order,it depends on the quantity.

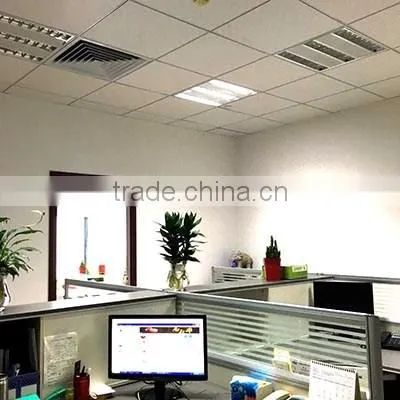

Shenzhen Smart Way technology Co.,Ltd set up on 2011,built in Futian District, Shenzhen, China. our products are smart cards of access control and security equipment,such as Ibutton,RF cards,chips,etc.our core service is credit first customer,welcome your coming.

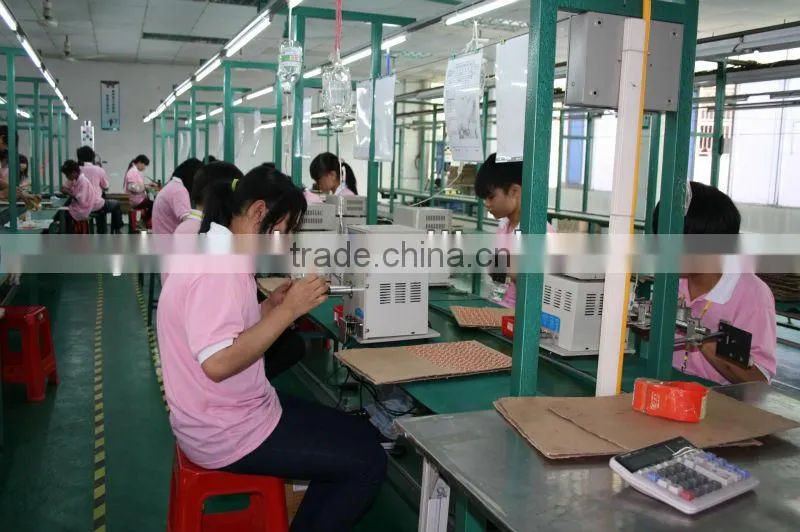

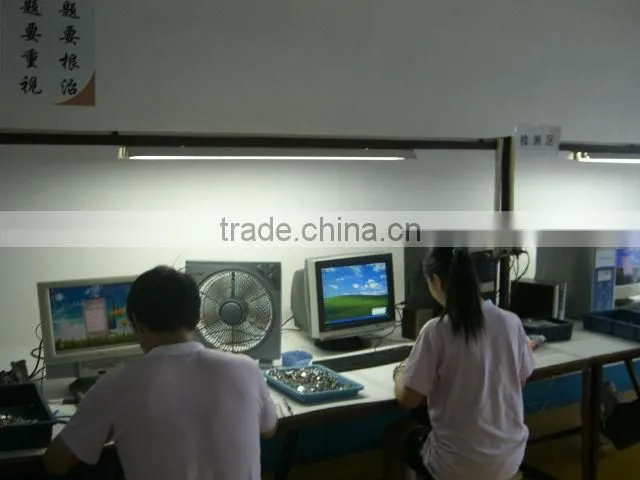

Factory show
1.Can you provide a sample?
yes,we offer free samples,but the buyer need to provide shipping.
2.Weather to provide customized design?
yes,modified and customer design is avaliable.
3.How about the leadtime?
depend on the quantity of your order.
4.How about the leadtime for the sample?
3-7days.
5.What's your payment terms?
T/T or Western Union.
6.How do you ship the order normally?
For large quantity order,ship the goods by sea.
For small quantity order,by air or express.we supply optional express for you,including DHL,FEDEX,UPS,TNT,EMS and so on.
Why you should choose us!
1:We have more than 10 years experience in security and protection industry.
2:We have more than 10 years experience doing foreign trade,so we have perfect program for business.
3:Our products Sale to over the world.
high quality id cards T5577 for door login
high quality id cards T5577 for door login
high quality id cards T5577 for door login
Cellphone:+86 153 2728 9329(whatsapp) Skype:smartwaysales02 QQ: 2751176829
high quality id cards T5577 for door login
high quality id cards T5577 for door login
