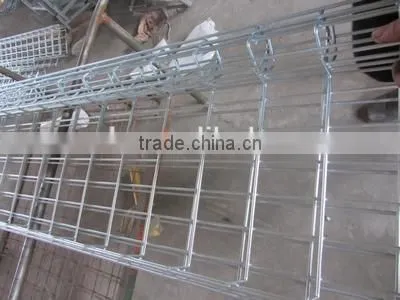

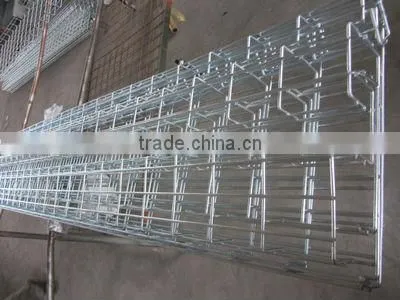

Popular Wire mesh Cable Tray
- 1000 Sheet / Sheets per Month
- TianJin Port
- Standard Gi Galvanized Steel Metal Perforated Cable Tray
- Standard Gi Galvanized Steel Metal Perforated Cable Tray
- Standard Gi Galvanized Steel Metal Perforated Cable Tray
- Standard Gi Galvanized Steel Metal Perforated Cable Tray
- Standard Gi Galvanized Steel Metal Perforated Cable Tray
- Perforated Ladder Type Cable Tray Systems in One-Step Forming Method
Product Details
Place of Origin: | Hebei, China | Brand Name: | Fuyang wire mesh | Model Number: | CM501505 |
Type: | Wire Mesh | Material: | Other, Steel, steel and ss304 and ss316 and ss316L | Width: | 50-600mm |
Length: | 3000mm, 3000m | Side Rail Height: | 50mm | Max. Working Load: | 100kg |
Product Description
Specifications
Wire mesh cable trayHeight:50mm,width:50-600mm
length:3000mm
Easy for line check and cleaning
Wire Mesh Size:50*50,50*1
Wire mesh cable tray
Height:50mm,width:50-600mm
length:3000mm
Easy for line check and cleaning
Wire Mesh Size:50*50,50*100mm
Specifications
Cable Support systems are well designed to provide necessary support for cable trays, cable ladders and trunkings. Cable support
Wire Mesh Cable Tray
Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L
Surface Finish:
Electro zinc plated- for indoor use to BS EN 12329-2000, 12microns thick.
Hot Dipped Galvanized- for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing -for stainless steel use.
.
Item Names | Height | Width | Length | Diameter | Weight | ||
__+CM+H+W+D | MM | INCH | MM | INCH | M | MM | KG/EACH |
__CM500505 | 50 | 2 | 50 | 2 | 3000 | 5 | 3.06 |
__CM501005 | 50 | 2 | 100 | 4 | 3000 | 5 | 3.77 |
__CM501505 | 50 | 2 | 150 | 6 | 3000 | 5 | 4.47 |
__CM502005 | 50 | 2 | 200 | 8 | 3000 | 5 | 5.17 |
__CM503005 | 50 | 2 | 300 | 12 | 3000 | 5 | 6.57 |
__CM504005 | 50 | 2 | 400 | 16 | 3000 | 5 | 7.97 |
__CM504505 | 50 | 2 | 450 | 18 | 3000 | 5 | 8.67 |
__CM505005 | 50 | 2 | 500 | 20 | 3000 | 5 | 9.37 |
__CM506005 | 50 | 2 | 600 | 24 | 3000 | 5 | 10.78 |
welded Wire Mesh Cable Tray Speicification:
1)Material:carbon steel,stainless steel
2)Surface Finish:Zinc plated,Galvanized,Electrolytic Polishing,Powder Coated
3)Standard Length is 3000mm,usually made to 2997mm to fit the 40'ft container
4)We mainly produce according to the drawings or samples.Custom sizes is available
Application:
Cable tray
Wire mesh cable trays are used extensively for data cables and low voltage installations,steel wire cable tray has become increasely popular with installers thanks to its ease of use,flexibility and lightweight structure.It is perfect for today's high tech cabling needs.
Wire Mesh Cable Tray is manufactured utilizing high strength steel wire, providing a strong, yet lightweight support system that is perfect for today's high tech cabling needs. The unique design of Wire mesh Cable Tray, with its 2" x 2" grid system and the "T-Weld" safety edge, make it the clear choice for the most complete support of sensitive fiber optic and communication cables.
welded wire mesh
Packaging & Delivery
Packaging Detail: | Normally packed in pill up ways with two pieces of square wood on both upper and bottom sides.There are four or six pieces of M10 long bolt penetrating the gratings and screwing together. It is suitable for loading and unloading by fork-lift and crane. Note: we can pack as per the requirement of customers. |
