Standard Cable Tray Sizes

Standard Cable Tray Sizes photo-1
US$ 12 - 60 MOQ: 100 Sheets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Fuyang wire mesh
Model Number:
CM501505
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Fuyang wire mesh
Model Number CM501505
Type Wire Mesh
Material Steel
Width 50-600mm
Length 3000mm
Side Rail Height 50mm
Max. Working Load 100kg

Specifications

cable tray sizes
1.china direct supplier
2Standard cable tray sizes
3,Size:50*50,50*1
4,For any standard


Standard cable tray sizes







Specifications

Cable Support systems are well designed to provide necessary support for cable trays, cable ladders and trunkings. Cable support

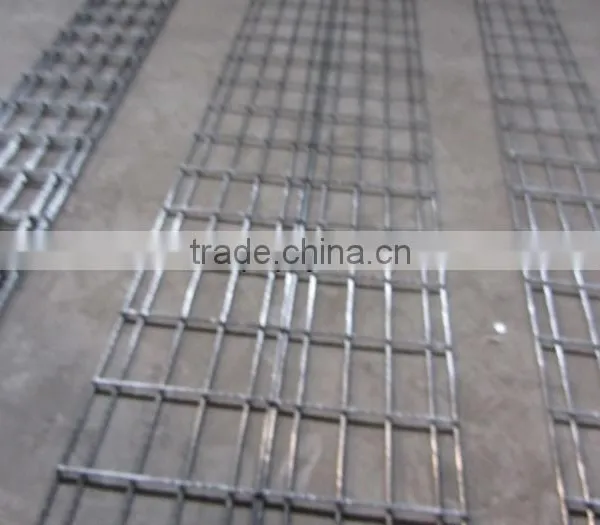

Wire Mesh Cable Tray

Material:

Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L

Surface Finish:

Electro zinc plated- for indoor use to BS EN 12329-2000, 12microns thick.

Hot Dipped Galvanized- for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

Electrolytic Polishing -for stainless steel use.

Standard cable tray sizes

.

Item Names

Height

Width

Length

Diameter

Weight

__+CM+H+W+D

MM

INCH

MM

INCH

M

MM

KG/EACH

__CM500505

50

2

50

2

3000

5

3.06

__CM501005

50

2

100

4

3000

5

3.77

__CM501505

50

2

150

6

3000

5

4.47

__CM502005

50

2

200

8

3000

5

5.17

__CM503005

50

2

300

12

3000

5

6.57

__CM504005

50

2

400

16

3000

5

7.97

__CM504505

50

2

450

18

3000

5

8.67

__CM505005

50

2

500

20

3000

5

9.37

__CM506005

50

2

600

24

3000

5

10.78





















 Standard cable tray sizes













welded Wire Mesh Cable Tray Speicification:

1)Material:carbon steel,stainless steel

2)Surface Finish:Zinc plated,Galvanized,Electrolytic Polishing,Powder Coated

3)Standard Length is 3000mm,usually made to 2997mm to fit the 40'ft container

4)We mainly produce according to the drawings or samples.Custom sizes is available
