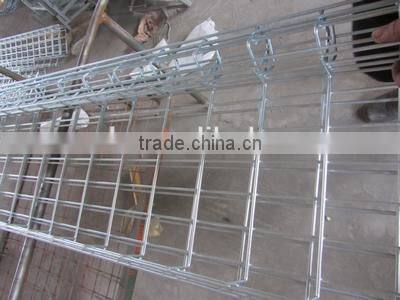

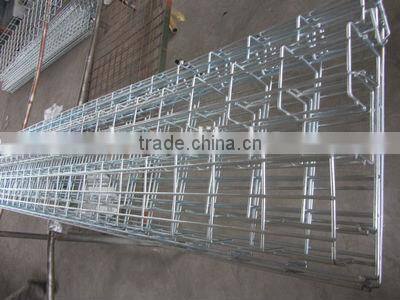

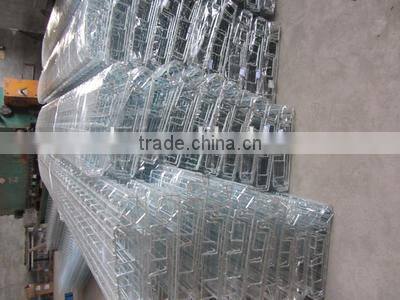

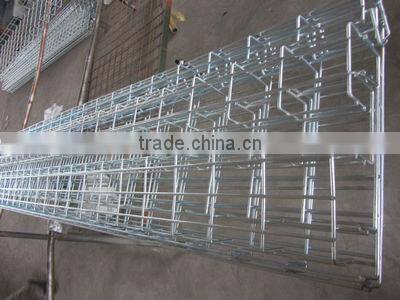

All Kinds Wire Mesh Cable Trays

Specifications

Wire mesh cable tray
Height:50mm,width:50-600mm
length:3000mm
Easy for line check and cleaning
Wire Mesh Size:50*50,50*100mm

Specifications

Cable Support systems are well designed to provide necessary support for cable trays, cable ladders and trunkings. Cable support

Wire Mesh Cable Tray

Material:

Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L

Surface Finish:

Electro zinc plated- for indoor use to BS EN 12329-2000, 12microns thick.

Hot Dipped Galvanized- for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

Electrolytic Polishing -for stainless steel use.

.

welded Wire Mesh Cable Tray Speicification:

1)Material:carbon steel,stainless steel

2)Surface Finish:Zinc plated,Galvanized,Electrolytic Polishing,Powder Coated

3)Standard Length is 3000mm,usually made to 2997mm to fit the 40'ft container

4)We mainly produce according to the drawings or samples.Custom sizes is available

Application:

 Cable tray

Wire mesh cable trays are used extensively for data cables and low voltage installations,steel wire cable tray has become increasely popular with installers thanks to its ease of use,flexibility and lightweight structure.It is perfect for today's high tech cabling needs.

Wire Mesh Cable Tray is manufactured utilizing high strength steel wire, providing a strong, yet lightweight support system that is perfect for today's high tech cabling needs. The unique design of Wire mesh Cable Tray, with its 2" x 2" grid system and the "T-Weld" safety edge, make it the clear choice for the most complete support of sensitive fiber optic and communication cables.
welded wire mesh

Packaging & Delivery
