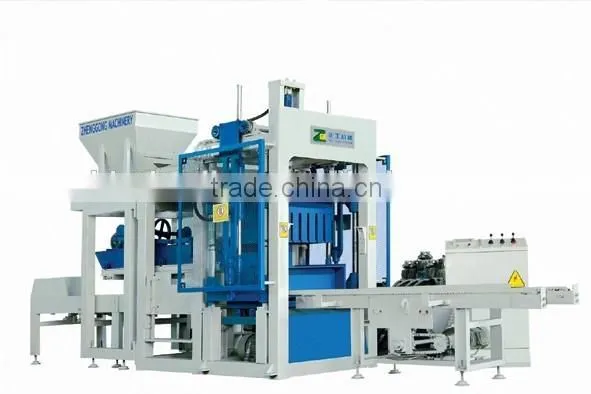

QT4-15 Automatic Concrete Brick Making Machine

QT4-15 Automatic Concrete Brick Making Machine :

Characters: This Cement Brick Making Machine with PLC intelligent control.Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesnt need a professional person but only need a simple trainning to the operator.

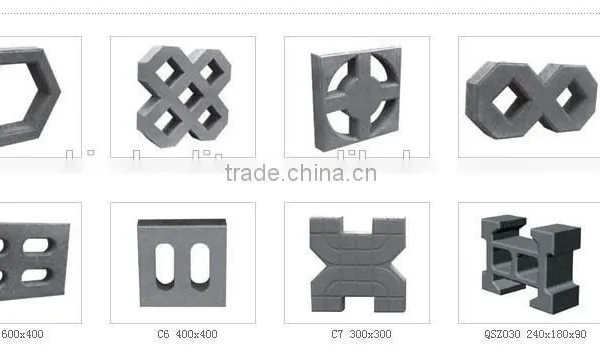

Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks,sod bricks, hydraulic blockshollow blocks, perforated bricks, and standard bricks etc.

Optional: Colour face material feeder (layered material feeding)

Equipped with color face material feeding device, it could make various color face bricks , through-body Environmental protection bricks, road curb rocks, hydraulic blocks and sod bricks and so on.

QT4-15 Automatic Concrete Brick Making Machine

Main technical data

Model: QT4-15                                                       Vibration frequency: 4000~5600

Molding cycle: 15-25s                                           Specification of molding box: 820*540mm

Power: 25.2KW                                 Weight: 5.5T

Installation dimension: 12000×4000×3000(mm)

QT4-15 Automatic Cement Brick Making Machine

Molding capacity

Hollow block: 4pcs/mold (390*190*190), 7500pcs/day (8hours)

Cellular block: 14pcs/mold (240*115*90), 24000pcs/day (8hours)

Environmental protection block: 14pcs/mold (200*100*60), 20000pcs/day (8hours)

Standard block: 26pcs/mold (238*115*51), 45000pcs/day (8hours)

QT4-15 Base production line for reference:

Pre-sales Service:

1. We can also offer technical support and technical consultation services.

 We can offer suggestions to clients who newly come into the industry.

2. New customers can pay a visit to our production factory, and can also pay a
visit to our old clients who are using our machines. We can send technicians to
introduce the production process and solve any of your problems.

In-sales Service:

1. We implement ISO9001 quality management system standard during our block
making machine, concrete pipe making machine and concrete mixing plant
production. We can also design and manufacture our products according to
customers' demands.

 2.We offer timely feedback to customers so as to solve the equipment problem as
soon as possible.

 3. We can also help clients in their production quality control, raw material
purchasing and end product marketing. We can also help clients who buy our block
making machine, brick production line and concrete mixing plant, etc. In
foundation construction, electric circuit layout and more.

 4. Offer free equipment testing and commissioning services. Operation training
and safety production guidance are also provided.

5. We offer guidance on equipment maintenance and simple failure treatment
solutions.

After-sales Service:

1. All our block making machine, brick production line, concrete mixing plant
and concrete pipe making machine as well as hydraulic brick machine are provided
with one year warranty except wearing parts and lifetime equipment maintenance
guidance service.

2.We help clients to solve any of their problems regarding to our machines, via
different methods.

3. Any of our clients can send their operators or technicians to our company to
receive free technical training.
