QT4-20 Molding Block Making Machine
US$ 40,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Molding Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QT6-15 Automatic Cement Brick Making MachineUS$ 40,000 - 100,000MOQ: 1 Set -
QT3-20 Semi-automatic Cement Brick Making MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
QT4-20 Semi-automatic Cement Brick Making MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
QT4-15 Automatic Cement Brick Making MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
QT8-15 Automatic Cement Brick Making MachineUS$ 45,000 - 120,000MOQ: 1 Set
Condition
New
Type
Other, Molding Block Making Machine
Brick Raw Material
Cement
Processing
Brick Production Line
Method
Hydraulic Pressure
Automatic
Yes
Capacity
(240*115*53)Standard brick :4pcs/mould,35000pcs/day (8hours)
Place of Origin
Fujian, China
Brand Name
FULI, ZHENGGONG
Model Number
QT4-20
Voltage
optional
Power
21.7KW
Dimension(L*W*H)
12000*4000*3000(mm)
Certification
CE/ISO9001/SGS/3C
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

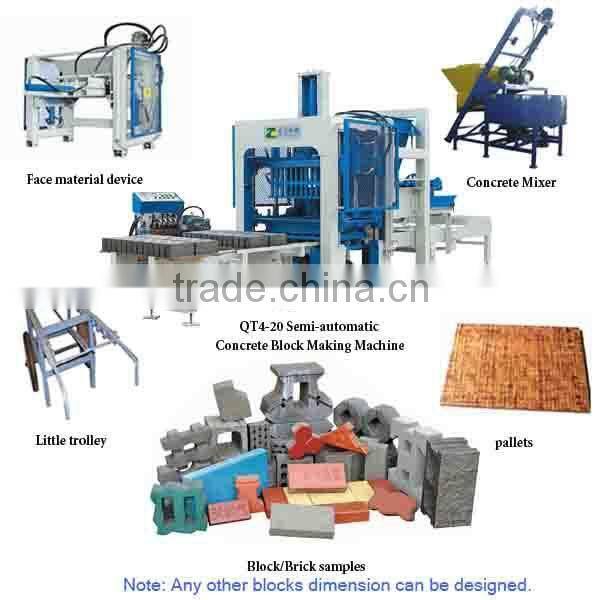

QT4-20 Molding Block Making Machine:
| QT4-20 Molding Block Making Machine | ||||
| Technical Specifications : | ||||
| Vibration frequency: 3000~4000rolls/minute | Frequency range:50-60Hz | |||
|
Molding cycle time: 15-25s |
molding box: 820*540mm | |||
| Motor power: 21.7KW | Gross weight: 5T | |||
| Pallet dimension: 880*530*25mm | Installation size: 12000×4000×3000mm | |||
| Capacity Production :(L*W*H*mm) | Hollow Block: 4pcs/ mould(390*190*190mm), 5500pcs/ day(8hours) | |||
| Perforated brick: 14pcs/ mould(240*115*90mm), 20000pcs/ day(8hours) | ||||
| Environmental block :14pcs/mould(200*100*60mm), 16000pcs/ day(8hours) | ||||
| Standard Brick:26pcs/ mould(238*115*51mm),35000pcs/day(8hours) | ||||
| Raw material | crush stone, sand, cement, fly ash, additives,etc. | |||
| Products: | Color pavement brick which is colored in several single layers or the whole body, wharf chain brick, kerb stone, grass planting brick, hydraulic brick, hollow brick, perforated brick, burn-free standard brick, etc. | |||
|
Note: 1. Brick of any size can be designed and produced as customers' requirements. 2. Bricks produced can be widely used in the construction and paving of plaza, garden and city, as well as in water conservancy project. |
||||

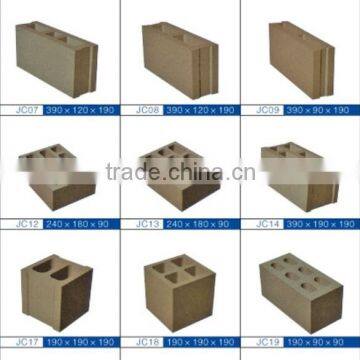

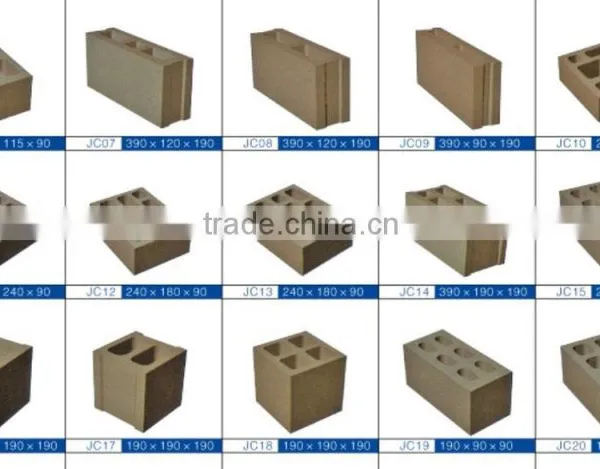

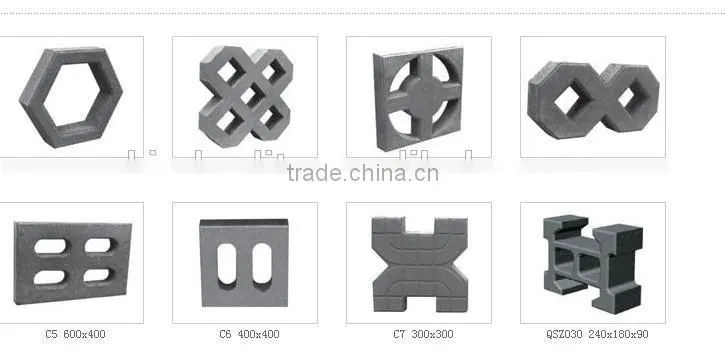

Some type concrete blocks from QT4-20 Molding Block Making Machine:
Our Services
Gurantee Period: One year after installation finished at buyer's factory.
All kinds of moulds can be produced according to customers’ design or drawing.
Installation service: Our company could send one or two of our engineers to buyers' place to direct the
installation and give the operation training. The customers should pay for the cost of room and board, the round-trip tickets and USD70/day/person for our engineers .

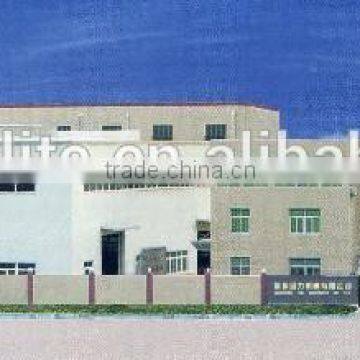

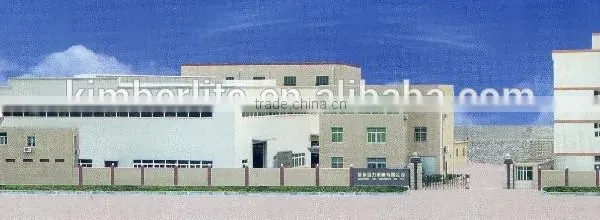

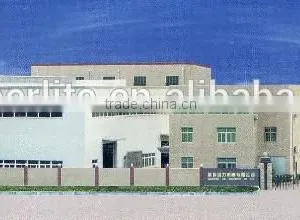

Company Information
