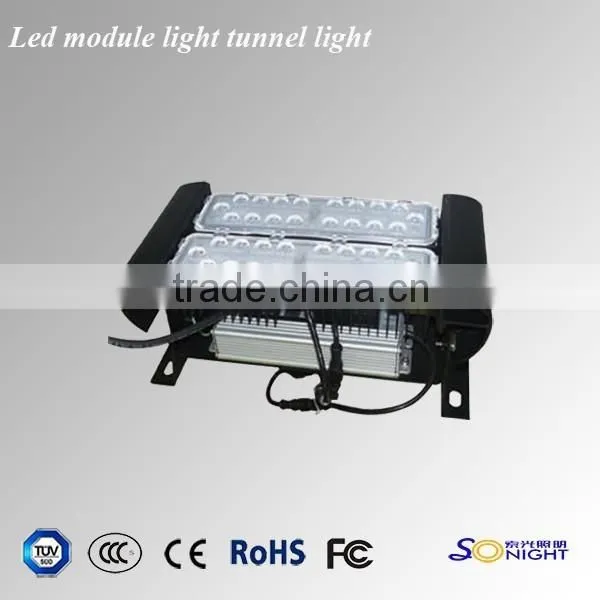

5 Years Warranty Waterproof Outdoor Led Tunnel Lights

5 Years Warranty Waterproof Outdoor Led Tunnel Lights thumbnail-1
5 Years Warranty Waterproof Outdoor Led Tunnel Lights photo-1
US$ 80 - 250 MOQ: 1 Piece
Key Specifications
Get Latest Price
Light Source:
Ultraviolet Lamps
Input Voltage(V):
90-305
Lamp Power(W):
240
Contact Supplier Request Quote Chat Now
Chongqing Sonight Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Light Source Ultraviolet Lamps
Input Voltage(V) 90-305
Lamp Power(W) 240
Lamp Luminous Flux(lm) 24000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Cool White
Working Temperature(℃) -40, +50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP68
Certification BV, C-tick, CCC, CE, ETL, FCC, LVD, UL
Base Type FESTOON
Place of Origin Chongqing, China
Brand Name Sonight
Model Number S1B

Specifications

Tunnel Light S1B Series





 Main Description - led tunnel lights manufacturers



  The lamp contains 1 (or 2) constant-current driver(s) and LED light sources;

  it works under the technical conditions as marked on the driver(s).

  Both the driver and light source are of modular design,

  which makes it convenient for installation and maintenance.



Technical Parameters - Tunnel lights manufacturers





S1B Series
Module Quantity 1 2 3 4 5 6 7
Input Voltage 100-277V AC 50/60 Hz
Power Efficiency ≥91%
Poweer Factor 0.95
Working Environment  -40℃~+50℃,10%-90%RH
Dimensions (mm) 350*340*229 430*340*229 510*340*229 590*340*229 670*340*229 750*340*229 830*340*229
Net Weight (kg) 4.5 6.1 7.2 8.1 10 11.4 12.6
IP Rating LED MODULE IP68, POWER SUPPLY IP67







Electrical and Photometric Specification





SNS1B
Specifications SNS1B-2 SNS1B-3 SNS1B-4
 WATT 80W 100W 120W 120W 150W 180w 160w 200w 240w
product size 170*340*230 250*340*230 330*340*230
N.W(kg) 4.4 5.4 6.4
G.W(kg) 5.2 6.2 7.4
LED Brand Philips Lumileds
Input   Voltage AC90V-305V
Power   Efficiency 91%
Power Factor 0.95
Junction Temperature <80℃
CRI Ra 70±5
Working Environment  -40℃ to+50℃
Life Span >5000000h
Surge Protection 10KV
CCT 3000K,4000K,5000K,6000K
Material Aluminium Alloy
IP Rating IP68






Production Center - led street lights manufacturers



5 Years Warranty Waterproof outdoor Led Tunnel Lights

5 Years Warranty Waterproof outdoor Led Tunnel Lights




Main Applications - tunnel light manufacturers

  •  Trunk roads tunnels, sub-trunk roads tunnels, highway tunnels and other tunnels.
