Selling Points
- The highest protection levels. IP68
- Thermal effect of cellular
- whole structure Radiating
- Eutectic Soldering Process
- Various power can be customized
- User-friendly design, tool-free repairs
- Light source 5 years warranty
| SNS1A | |||||||||
| Specifications | SNS1A-2 | SNS1A-3 | SNS1A-4 | ||||||
| WATT | 80W | 100W | 120W | 120W | 150W | 180w | 160w | 200w | 240w |
| product size | 430*340*170 | 510*340*170 | 590*340*170 | ||||||
| Packaging Dimension | 520*430*230 | ||||||||
| N.W(kg) | 6.3 | 7.3 | 8.3 | ||||||
| G.W(kg) | 7.3 | 8.3 | 9.3 | ||||||
| LED Brand | LED Module | ||||||||
| Input Voltage | AC90V-305V | ||||||||
| Power Efficiency | 91% | ||||||||
| Power Factor | 0.95 | ||||||||
| Junction Temperature | <80℃ | ||||||||
| CRI | Ra 70±5 | ||||||||
| Working Environment | -40℃ to+50℃ | ||||||||
| Life Span | >5000000h | ||||||||
| Surge Protection | 10KV | ||||||||
| CCT | 3000K,4000K,5000K,6000K | ||||||||
| Material | Aluminium Alloy | ||||||||
| IP Rating | IP68 |
||||||||

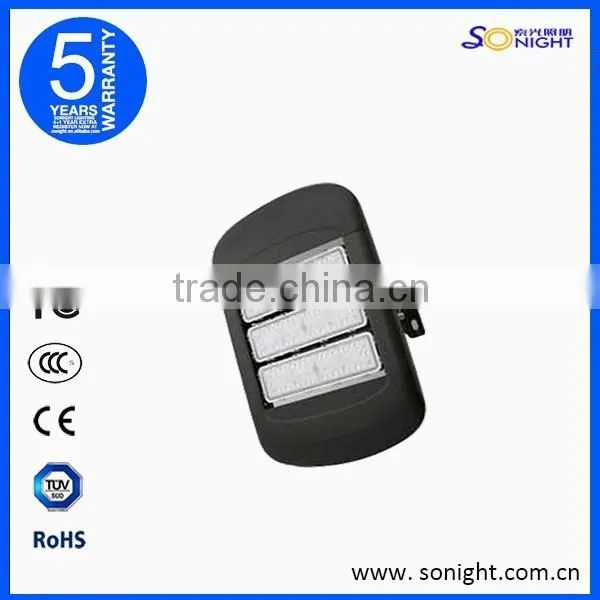

SN-S1A
led tunnel light
Product Features:
- Modular plugable technology,easy tool onsite maintenance;
- Honeycomb and whole structure cooling technology,high efficient heat dissipation;
- Non-wire eutectic soldering;
- Double-coupling IP68 protection,highest waterproof level;
- Single unit's damage won't affect other unite's current.
- Intelligent constant current driving technolgy ,long life span;
- Ergonomic light distribution to achieve uniform illuminating effect;
- Free mogular serialization and full power range solutions.
SN-S1A
led tunnel light
Lighting Distribution Curve
Application: Tunnel Lighting
SN-S1A light Model
Packaging
Standard thick export carton box
Application of Sonight
certificate
Sonight Lighting
https://img13.fr-trading.com
Chongqing Sonight Lighting Co.,Ltd is an established lighting company evolving from over 18 years of experience in energy efficient lighting products. Sonight Lighting offers a complete line of project-oriented products to serve these important lighting markets: Including Drivers,Tubes,Grille Light,Linear tracking light,Induction light and All types of LED products.
We are specialized in technology support, product development,marketing, sales and power saving solution for induction lighting and LED lighting products. We represent qualified manufacturers internationally and bring their quality products to the global market efficiently and effectively.
Through constant efforts for searching and trying, Sonight has obtained good reputation in serving and quality from our customers.Also our products are tested strictly by authoritative organization and have passed CE,TUV,CCC,FCC,PSE.
Our mission is to make quality, energy-efficient and eco-friendly products much more affordable to the customers through our cost-effective marketing and sales solutions as well as to help businesses save their energy costs.
OEM/ODM is available for you. Welcome to consult us!
Professional team is responsible for the whole sales process.
