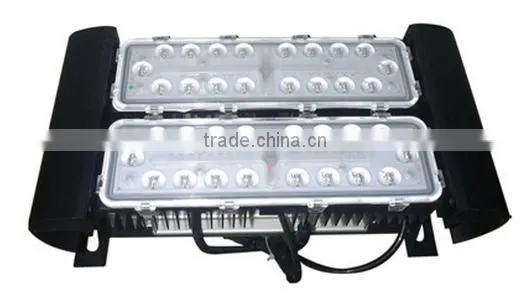

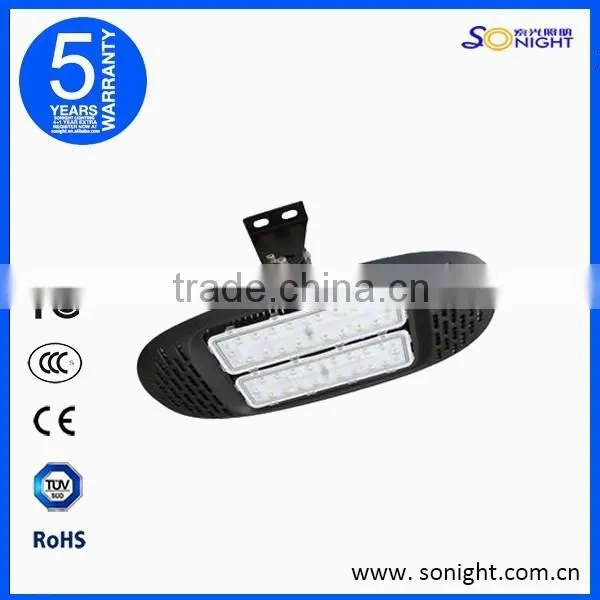

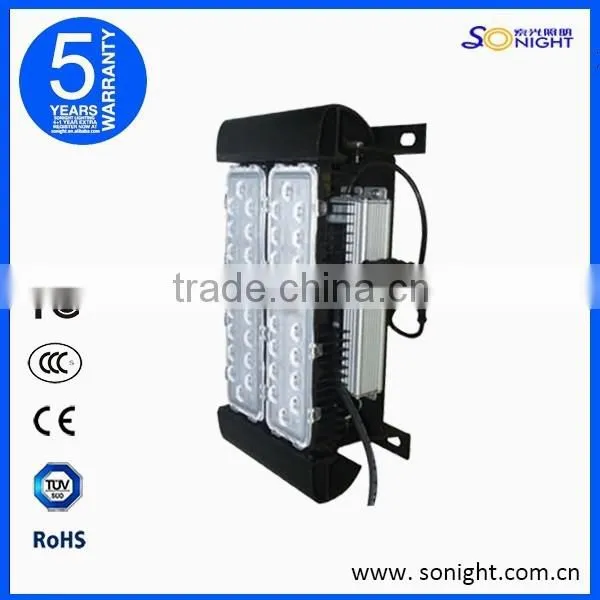

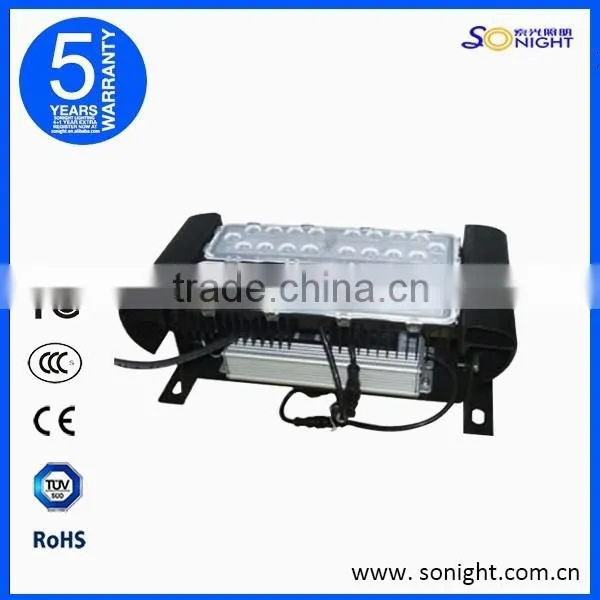

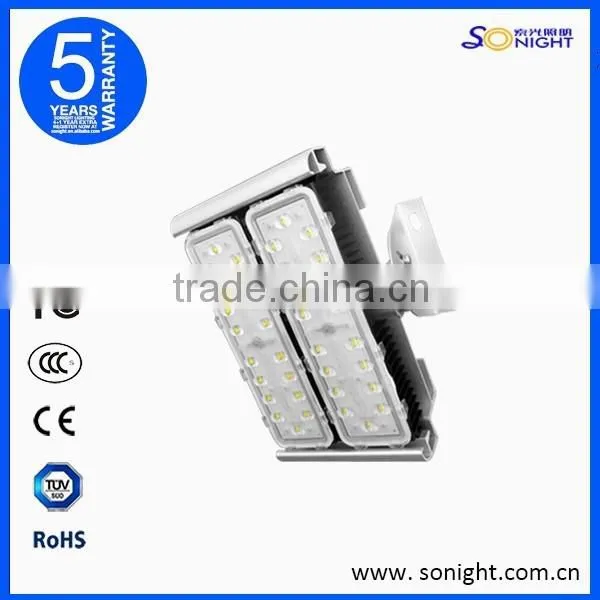

Five Years Warranty 120w Waterproof Meanwell Led Tunnel Light
US$ 80 - 250
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
LED Module
Input Voltage(V):
90-305
Lamp Power(W):
120
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 Newest Design Outdoor 150w LED Tunnel Light 5 Years WarrantyUS$ 80 - 250MOQ: 1 Piece -
2015 Led Tunnel Lighting 120w LightUS$ 80 - 250MOQ: 1 Piece
-
5 Years Warranty Waterproof Outdoor Led Tunnel LightsUS$ 80 - 250MOQ: 1 Piece
-
2015 New Design Led Tunnel Lighting 120w LightUS$ 80 - 250MOQ: 1 Piece
-
2015 New Design Outdoor 150w LED Tunnel LightsUS$ 80 - 250MOQ: 1 Piece
LED Light Source
LED Module
Input Voltage(V)
90-305
Lamp Power(W)
120
Lamp Luminous Flux(lm)
11400
Lamp Luminous Efficiency(lm/w)
95
Color Temperature(CCT)
Cool White
Working Temperature(℃)
-40, +50
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum Alloy
IP Rating
IP68
Certification
CCC, CE, FCC, UL
Warranty(Year)
5
Place of Origin
Chongqing, China
Brand Name
Sonight
Model Number
S1B
Specifications
Tunnel Light S1B Series
Main Description - led tunnel lights manufacturers
The lamp contains 1 (or 2) constant-current driver(s) and LED light sources;
it works under the technical conditions as marked on the driver(s).
Both the driver and light source are of modular design,
which makes it convenient for installation and maintenance.
Technical Parameters - Tunnel lights manufacturers
| S1B Series | |||||||
| Module Quantity | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Input Voltage | 100-277V AC 50/60 Hz | ||||||
| Power Efficiency | ≥91% | ||||||
| Poweer Factor | 0.95 | ||||||
| Working Environment | -40℃~+50℃,10%-90%RH | ||||||
| Dimensions (mm) | 350*340*229 | 430*340*229 | 510*340*229 | 590*340*229 | 670*340*229 | 750*340*229 | 830*340*229 |
| Net Weight (kg) | 4.5 | 6.1 | 7.2 | 8.1 | 10 | 11.4 | 12.6 |
| IP Rating | LED MODULE IP68, POWER SUPPLY IP67 | ||||||
Electrical and Photometric Specification
| SNS1B | |||||||||
| Specifications | SNS1B-2 | SNS1B-3 | SNS1B-4 | ||||||
| WATT | 80W | 100W | 120W | 120W | 150W | 180w | 160w | 200w | 240w |
| product size | 170*340*230 | 250*340*230 | 330*340*230 | ||||||
| N.W(kg) | 4.4 | 5.4 | 6.4 | ||||||
| G.W(kg) | 5.2 | 6.2 | 7.4 | ||||||
| LED Brand | Philips Lumileds | ||||||||
| Input Voltage | AC90V-305V | ||||||||
| Power Efficiency | 91% | ||||||||
| Power Factor | 0.95 | ||||||||
| Junction Temperature | <80℃ | ||||||||
| CRI | Ra 70±5 | ||||||||
| Working Environment | -40℃ to+50℃ | ||||||||
| Life Span | >5000000h | ||||||||
| Surge Protection | 10KV | ||||||||
| CCT | 3000K,4000K,5000K,6000K | ||||||||
| Material | Aluminium Alloy | ||||||||
| IP Rating | IP68 | ||||||||

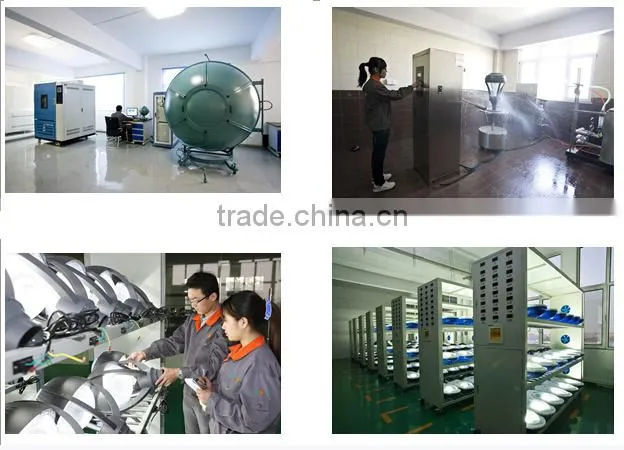

Production Center - led street lights manufacturers
Main Applications - tunnel light manufacturers
- Trunk roads tunnels, sub-trunk roads tunnels, highway tunnels and other tunnels.

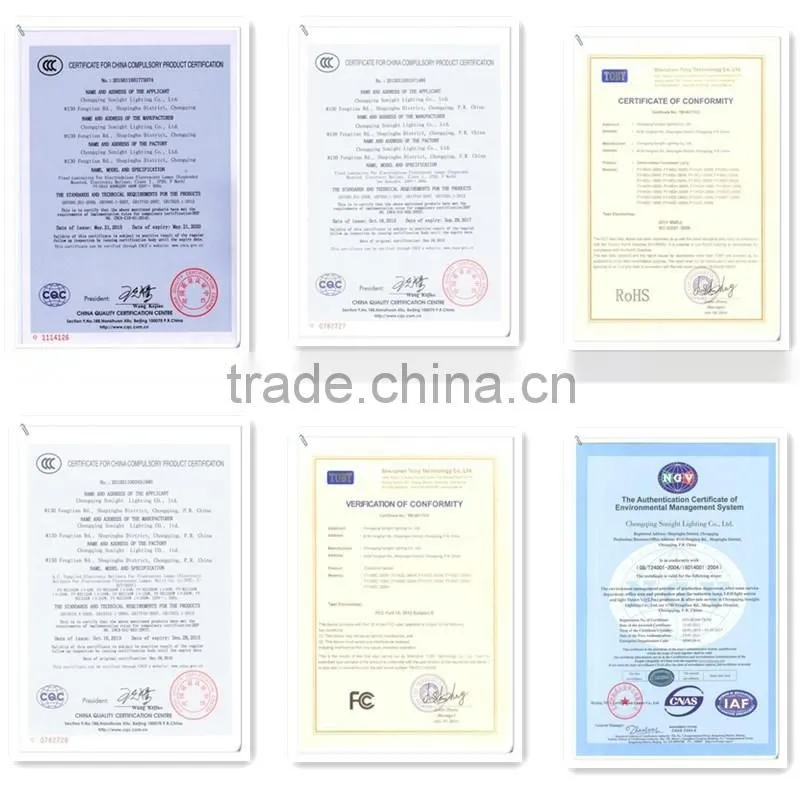

SN Certificate
