IP67 Aluminum Lamp Body Led Solar Street Lights
US$ 80 - 250
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
LED Module
Input Voltage(V):
90-305
Lamp Power(W):
40
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Product OEM Integrated Solar Street LightsUS$ 80 - 250MOQ: 1 Piece -
China 300W Meanwell Led Street Light, Outdoor IP68 Led Street Lamp With Rohs CertificationUS$ 80 - 250MOQ: 1 Piece
-
2015 New 120w Garden/highway/road Way Led Street Lighting FixtureUS$ 80 - 250MOQ: 1 Piece
-
Chinese Factory Price Led Explosion Proof Light ip 65US$ 80 - 250MOQ: 1 Piece
-
DLC ETL CE RoHS Decorative Post Top Lantern100W 50WUS$ 50 - 100MOQ: 1 Piece
LED Light Source
LED Module
Input Voltage(V)
90-305
Lamp Power(W)
40
Lamp Luminous Flux(lm)
4000
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Cool White
Working Temperature(℃)
-40, +50
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum Alloy
IP Rating
IP68
Certification
CCC, CE, EMC, Energy Star, FCC, LVD, UL
Warranty(Year)
3
Place of Origin
Chongqing, China
Brand Name
Sonight
Model Number
L1A
IP67 aluminum lamp body led solar street lights
Main Description - led street lights manufacturers
The lamp contains 1 (or 2) constant-current driver(s) and LED light sources; it works under the technical conditions as marked on the driver(s). Both the driver and light source are of modular design, which makes it convenient for installation and maintenance.
Technical Parameters - led street lights manufacturers
| SN-FL1A LED QUANTITIES(LED MODULES) | |||||
| Model(Module) | Power | LM/W | Lumens(lm) | Packing size(mm) | G.W(kg) |
| SNL1A-1 | 40 | 100 | 4000 | 585*430*170 | 7.1 |
| 50 | 95 | 4750 | |||
| 60 | 105 | 5400 | |||
| SNL1A-2 | 80 | 100 | 8400 | 690*430*170 | 9.7 |
| 100 | 100 | 10000 | |||
| 120 | 95 | 11400 | |||
| SNL1A-3 | 120 | 100 | 12600 | 790*430*170 | 10.3 |
| 150 | 100 | 15000 | |||
| 180 | 95 | 17100 | |||
| SNL1A-4 | 160 | 105 | 16800 | 890*430*170 | 11.7 |
| 200 | 100 | 20000 | |||
| 240 | 95 | 22800 | |||
| SNL1A-5 | 200 | 105 | 21000 | 945*430*170 | 13.4 |
| SNL1A-6 | 240 | 105 | 25200 | 1130*430*170 | 16.5 |
| 300 | 100 | 30000 | |||
| 360 | 95 | 34200 | |||
| SNL1A-7 | 280 | 105 | 29400 | 1210*430*170 | 17.8 |
| 350 | 100 | 35000 | |||
Electrical and Photometric Specification
| SN-FL1A TECHNICAL FEATURES | |
| LED Light Source | Phillips Lumileds |
| Input Voltage | 90-305V AC |
| Total Watt | 40W-350W |
| Watt of LED module | 40W/50W//60W |
| LED modules quantities | From 1 to 7 module |
| Power Efficiency | 91% |
| Power Factor | 0.95 |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K-6000K |
| Beam Angle | 25°-144°(Customized) |
| Lamp Rated Luminous Efficiency | 100 lm/W ±10% |
| Lamp Power | 40-350W |
| Total Harmonic Distortion | < 10% |
| Junction Temperature | <70° |
| Working Environment | minus 40℃ - plus 50℃ 10%~90%RH |
| LED Life Span | >50000hs |
| Body and Shell Materials | Aluminum Alloy |
| Surge Protection | 10KV |
| Installation Diameter | 57-63mm |
| IP rating | IP68 |
| Light Distribution Curve | Batwing Light Distribution Curve |
Production Center - led street lights manufacturers
Main Applications - led high bay light manufacturers

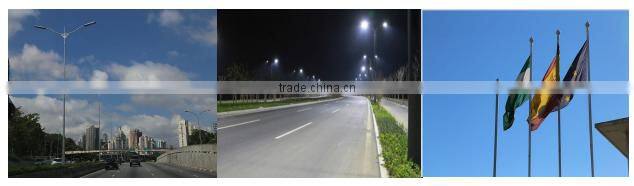

- Street lighting, park lighting, path lighting, roadway lighting, residential areas etc.
