2015 New 120w Garden/highway/road Way Led Street Lighting Fixture

Name: 2015 New 120w Garden/highway/road Way Led Street Lighting Fixture
Brand: Sonight
SKU: 104100181
Availability: InStock

US$ 80 - 250 MOQ: 1 Piece

Key Specifications

LED Light Source:

LED Module

Input Voltage(V):

90-305

Lamp Power(W):

120

Chongqing Sonight Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source LED Module

Input Voltage(V) 90-305

Lamp Power(W) 120

Lamp Luminous Flux(lm) 11400

Lamp Luminous Efficiency(lm/w) 95

Color Temperature(CCT) Cool White

Working Temperature(℃) -40, +50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP68

Certification CCC, CE, EMC, Energy Star, FCC, LVD, UL

Warranty(Year) 3

Place of Origin Chongqing, China

Brand Name Sonight

Model Number L4B

2015 New 120w led street light

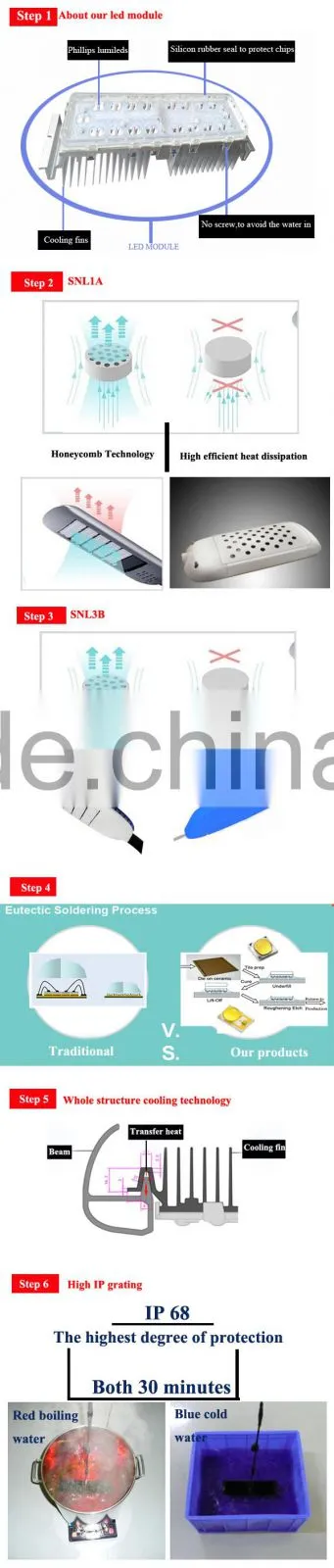

Main Description - led street lights manufacturers

The lamp contains 1 (or 2) constant-current driver(s) and LED light sources;

it works under the technical conditions as marked on the driver(s).

Both the driver and light source are of modular design,

which makes it convenient for installation and maintenance.

Technical Parameters - led street lights manufacturers

SN-FL4B LED QUANTITIES(LED MODULES)
Model(Module)	Power	LM/W	Lumens(lm)	Packing size(mm)	G.W(kg)
SNL4B-1	40	100	4000	870285105	5.4
	50	95	4750
	60	90	5400
SNL4B-2	80	105	8400	870285105	6.6
	100	100	10000
	120	95	11400

Electrical and Photometric Specification

SN-FL4B TECHNICAL FEATURES
SN-FL4B TECHNICAL FEATURES
LED Light Source	Phillips Lumileds
Input Voltage	90-305V AC
Total Watt	40W-120W
Watt of LED module	40W/50W//60W
LED modules quantities	From 1 to 2 module
Power Efficiency	91%
Power Factor	0.95
Color Rendering Index	Ra>70
Color Temperature	3000K-6000K
Beam Angle	25°-144°(Customized)
Lamp Rated Luminous Efficiency	100 lm/W ±10%
Total Harmonic Distortion	< 10%
Junction Temperature	<70°
Working Environment	minus 40℃ - plus 50℃ 10%~90%RH
LED Life Span	>50000hs
Body and Shell Materials	Aluminum Alloy
Surge Protection	10KV
Installation Diameter	57-63mm
IP rating	IP68
Light Distribution Curve	Batwing Light Distribution Curve
