Product Details
| Brand Name | RealHD | Model Number | HDRBT100 | |
| Place of Origin | Guangdong, China |
Product Description

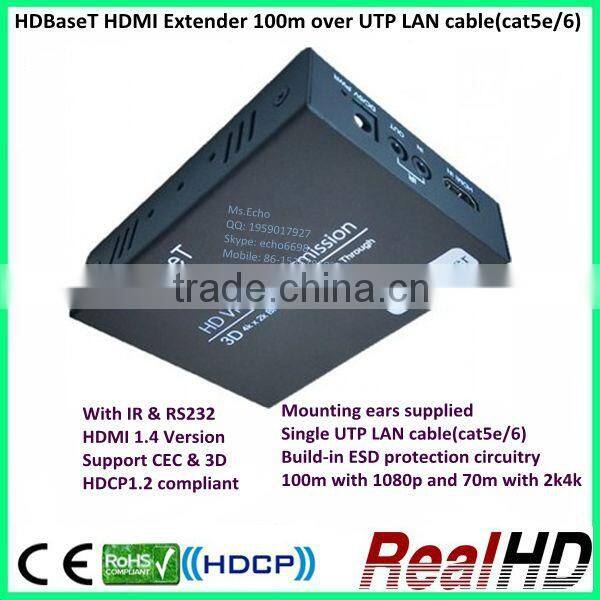

2016 Hottest Product 100m V1.4 HDBaseT HDMI Extender by cat5e/6
1. Introduction of 2016 Hottest Product 100m V1.4 HDBaseT HDMI Extender by cat5e/6 :
This REXBaseT100 is a HDMI HDBaseT Extender that using a high hdmi single mode cable to transmission, it only needs and cat6 cable to connect. the transmission distance reaches 100 meters with 1080p, and 70 meters with 4kx2k, support 3d transmission. at the time of extending the hdmi signal, it could also support the forwarding extension of IR infrared remote control signal and RS232 signal extension. the IR system could control the sources from the sinks or control the sinks from sources.
REXBaseT100 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2. Features of 2016 Hottest Product 100m V1.4 HDBaseT HDMI Extender by cat5e/6 :
1) Standard HDBaseT technology
2) Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
3) UTP cable termination follows the standard of IEEE-568B.
4) Transmission distance up to 100 meters under the video format of 1080P & 3D, and 70 meters for 4k*2k with cat6.
5) HDMI V1.4 supported.
6) HDCP1.2 compliant and support CEC.
7) Full HD support: 1080p@60Hz@48 b/pixels, 3D and 4Kx2K
8) Built-in ESD protection circuitry, can effectively prevent electrostatic damage
9) Mounting ears supplied.
10) Using a standard Ethernet network cable IEEE-568B connection, easy to use
11) Transfer Bidirectional Infrared control signal together with the HDMI signal.
12) RS232 Port for firmware update or RS232 control signal transmission.
13) Using signal cat6 cable instead hdmi cable for long distance transmission.
14) Real-time transmission of high-definition HDMI video signal, the video is clear and stable
15) Supports two-way infrared transmission, and serial pass-through
16) with 10.2Gbps Bandwidth transfer rate.
17) One pair as a full functional module, easy to installation, plug and play, no need to set.
3. Parameters of 2016 Hottest Product 100m V1.4 HDBaseT HDMI Extender by cat5e/6 :
Operating Temperature Range | -5°C to +35°C |
Operating Humidity Range | 5 to 90 % RH (no condensation) |
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Video Format Supported | DTV/HDTV; |
1080P/1080i/720P/576P/480P/576i/480i | |
Output Video | HDMI 1.4 + HDCP |
Output Audio | Support DTS-HD, Dolby-HD |
Maximum Transmission Distance | 1080p: CAT6 120 Meters |
1080p & 3D: CAT6 100 Meters | |
4K*2K: CAT6 70 Meters | |
Power Supply | 5V/2A DC |
Power Consumption | 2.5Watts (Transmitter) |
5 Watts (Receiver) | |
Dimensions | 105mmH×76mmW×27mmD |
Mass (Main unit) | 0.7Kg / 1.54lb (Pairs) |
Introduction of 2016 Hottest Product 100m V1.4 HDBaseT HDMI Extender by cat5e/6 :
HDMI Transmitter:
HDMI Receiver:
Typical Application for 2016 Hottest Product 100m V1.4 HDBaseT HDMI Extender by cat5e/6 :
Packing of 2016 Hottest Product 100m V1.4 HDBaseT HDMI Extender by cat5e/6 :
1) One HDBaseT HDMI Transmitter
2) One HDBaseT HDMI Receiver
3) One IR HDBaseT hdmi emitter cable
4) One IR HDBaseT hdmi receiver cable
5) Two 5V DC Power Supply(one for hdmi transmitter and one for hdmi receiver)
6) One operating instronction
