lkv373 HDMI Extender over cat5 cat6 100m made in China
Features of lkv373 HDMI Extender over cat5 cat6 100m made in China:
1. Compliant HDCP.
2. Flexible and scalable HDMI 1080p High Quality Video Broadcasting with Gigabit Ethernet LAN.
3. Extends 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable.

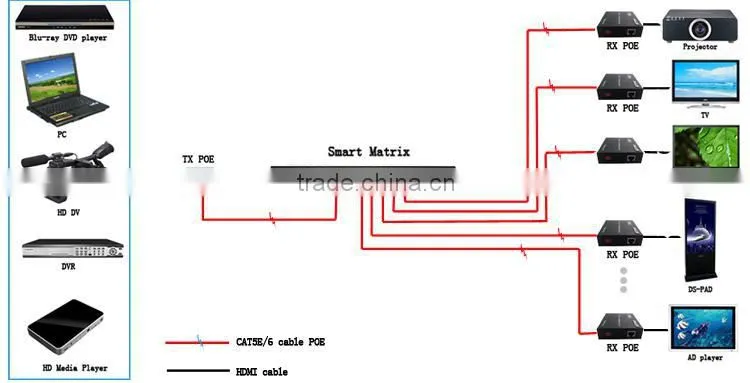

4. Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading.
5. Support Point-to-Point, Point-to-Many and Many-to-Many network configuration.
6. Dual power input: 802.3af compliant PoE & DC5V.
7. Up to 8 transmitters and more than 200 receivers possible in a single system.
8. With IR Control function ,it allows you control back the source at the end of destination
9. Built-in DIP switch to change Group ID and Utility for remotely
10. Support IGMP v.1 &v.2 address
11. Support cascading Ethernet Switches up to 3 layers.
Specifications of lkv373 HDMI Extender over cat5 cat6 100m made in China:
Operating Temperature Range |
-5 to +35°C(+23 to +95°F) |
Operating Humidity Range |
5 to 90%RH (No Condensation) |
Support Video Format |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P |
Output Video |
HDMI,HDCP |
Audio Sampling rate |
32kHz, 44.1kHz and 48kHz |
Transmission Distance |
1080P @60Hz120m(Maximum) over single CAT5E/6 /24AWG/Solid |
Power consumption |
5V/1A DC , 802.3af PoE Power consumption: Max. 8W |
Dimension (L×W×H) |
L94xW93.5x24.6mm |
IR frequency range |
38-56kHz |
Net Weight |
Receiver:255g,Transmitter:255g |
TX&RX |
Default IP address:192.168.168.55;MAC address:00:0b:78:00:60:01 Default IP address:192.168.168.56;MAC address:00:0b:78:00:60:02 |
Note1: Specifications are subject to change without notice. Mass and dimensions are approximate.
Note2: one TX to many RX or many TX connect to many RX, IP and MAC address must be different.
Packing of lkv373 HDMI Extender over cat5 cat6 100m made in China:
1) Main Unit. Transmitter & Receiver HDMI Extender
2) Power adapter DC 5V 1Ax2PCS
3) IR-TX cable&IR-RX cable
4) Operating Instructions
Table of Contents for lkv373 HDMI Extender over cat5 cat6 100m made in China:
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Typical Application
Maintenance
Product Service
Warranty
Notice:
Our company reserve the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
Shipping of HDMI to RGB / VGA / YPbPr + RL/SPDIF Converter with Audio, Compatible DVI-D to YPbPr / VGA for PC:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) goods will be sent within a week business days after the full payment has been confirmed.
3) goods could be marked as "gifts" for your easy custom clearances and less charge if you need.
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. OEM and ODM are welcome, and could imprint your logo.
3. 3 years warranty for all products, and If not man-made problem, replace or repair are ok.
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
