2016 China Best Selling 16x16 120m RS232 HDMI Extender by cat5e/6 Over TCP/IP
1. Introduction of 2016 China Best Selling 16x16 120m RS232 HDMI Extender by cat5e/6 Over TCP/IP :
The HDMI Extender over TCP/IP up to 100m is a sophisticated many to many HDMI over IP extender. It support HDCP 2.0 compliant and resolutions up to 1080P full HD and 1920x1200 (WUXGA). Multiple receivers can simultaneously connect to any transmitters from a virtual crosspoint matrix of 16 transmitters and many receivers up to 65,000 units theoretically.
2. Features of 2016 China Best Selling 16x16 120m RS232 HDMI Extender by cat5e/6 Over TCP/IP :
1) HDMI signal extension up to 100 meters.
2) Supports HDTV resolution up to 1080p .
3) Supports PCM 2.1, 5.1 and 7.1 Ch Audio.
4) Supports one-to-one, one-to-many and many to many connections via managed switch.
5) Supports up to 16 transmitters by Dip switch selection or remote control.
6) Supports up to theoretically 65,000 receivers.
7) IR pass-through.
8) Bi-directional RS232.
9) Line in / Line out.
10) Compliant with HDMI 1.3c and HDCP 2.0 standards.
11) Audio and video are transmitted digitally over the 100Ohm Cat.6 cable for lower signal loss.
12) TV will show display source channel, which is easier for end user to control.
13) LED Digital Display.
14) Remoter control (16 key remoter)
3. Specifications of 2016 China Best Selling 16x16 120m RS232 HDMI Extender by cat5e/6 Over TCP/IP:
| PERFORMANCE | |
| HDTV Resolutions | 480p, 720p, 1080i, 1080p |
| Color Depth | 36 Bit |
| Audio Format | PCM 2 Ch audio |
| IR Range | 30 kHz to 50 kHz |
| Maximum Cable Range | HDMI Input: 5 meters Max, |
| HDMI Outputs: 5 meters Max | |
| Video Bandwidth | 150MHz via LAN |
| Input Video Signal | 3.3 Volts P-P |
| Input DDC Signal | 5.0 Volts P-P |
| I/O CONNECTORS | |
| Transmitter | |
| Inputs | 1 x HDMI-A 19pin socket |
| 1 x 3.5mm Jack for Microphone | |
| 1 x 3.5mm Jack for IR extender | |
| 1 x 2.5mm DC Jack for Power | |
| 1 x DB9pin for RS232 | |
| Outputs | 1 x RJ45 Jack |
| 1 x HDMI-A 19PIN Socket | |
| 1 x 3.5mm Jack for speaker | |
| 1 x 3.5mm Jack for IR Emitter | |
| Receiver | |
| Inputs | 1 x RJ45 Jack |
| 1 x 3.5mm Jack for Microphone | |
| 1 x 3.5mm Jack for IR extender | |
| 1 x 2.5mm DC Jack for Power | |
| 1 x DB9pin for RS232 | |
| Outputs | 1 x HDMI-A 19PIN Socket |
| 1 x 3.5mm Jack for speaker | |
| 1 x 3.5mm Jack for IR Emitter | |
| MECHANICAL | |
| Transmitter | |
| Dimensions (H-W-D) | 200*105*27mm |
| Weight | 0.6kg |
| Receiver | |
| Dimensions (H-W-D) | 200*105*27mm |
| Weight | 0.61kg |
| WARRANTY | |
| Limited Warranty | 1 Year Parts and Labor |
| ENVIRONMENTAL | |
| Operating Temperature | +0 to +40° C (+32° to 104° F) |
| Operating Humidity | 10% to 85% (Non-condensing) |
| Storage Temperature | -20° to +60° (+20° to +140° F) |
| Storage Humidity | 10% to 85% (Non-condensing) |
| POWER REQUIREMENTS | |
| External Power Supply | 5VDC/2.5A |
| SAFETY | |
| Certificate | FCC, CE, RoHS |
| Power Adapter | UL, FCC, CE, RoHS |
Packing of 2016 China Best Selling 16x16 120m RS232 HDMI Extender by cat5e/6 Over TCP/IP :
1) One HDMI Transmitter
2) One HDMI Receiver
3) One Remote
4) Two Power Adapter
5) One User's Manual
Shipping of HDMI Extender, HDMI Matrix, HDMI Converter, HDMI Splitter, HDMI Switch:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) goods will be sent within a week business days after the full payment has been confirmed.
3) goods could be marked as "gifts" for your easy custom clearances and less charge if you need.
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. OEM and ODM are welcome, and could imprint your logo.
2. 3 years warranty for all products, and If not man-made problem, replace or repair are ok.

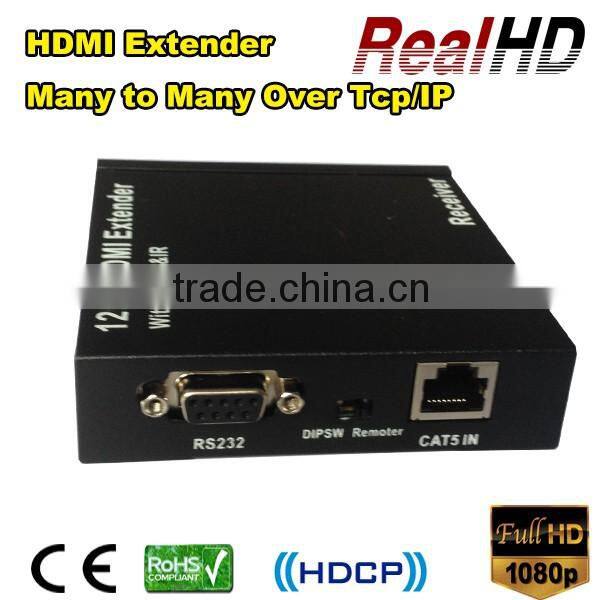

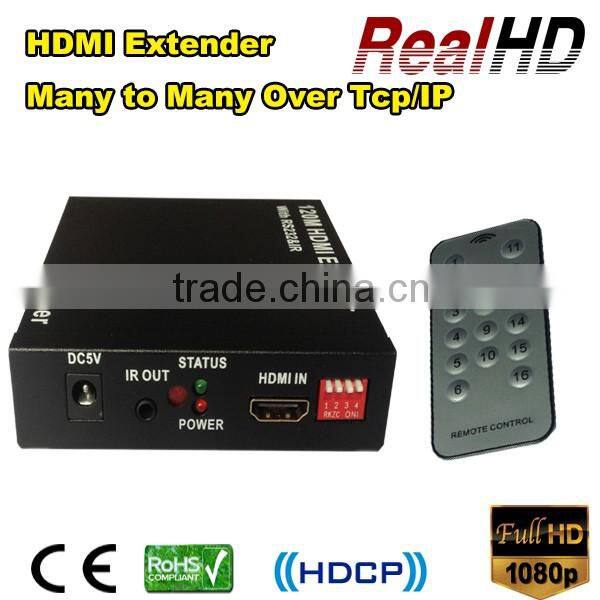

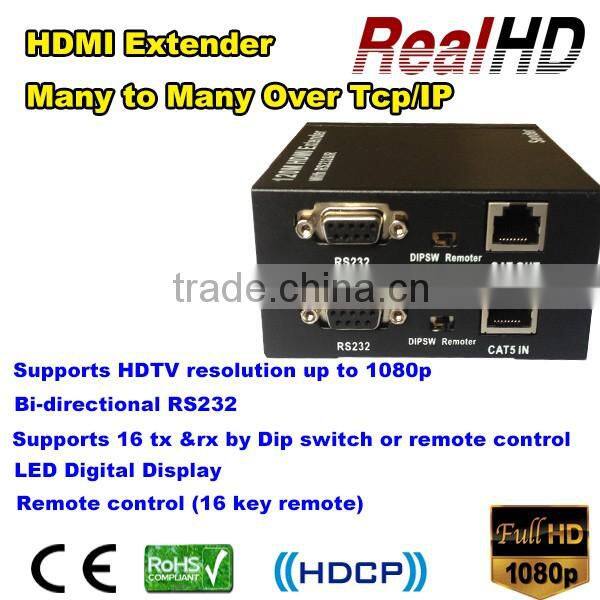

Pictures of this products:
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
