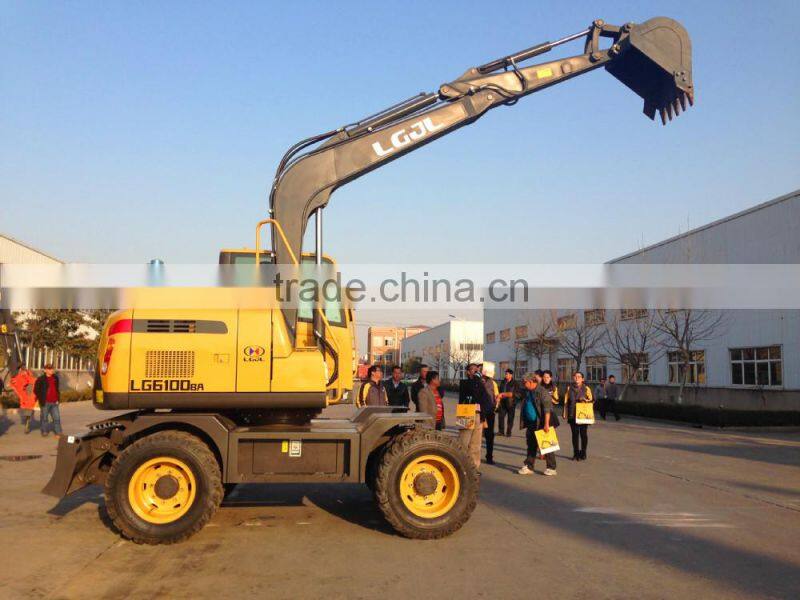

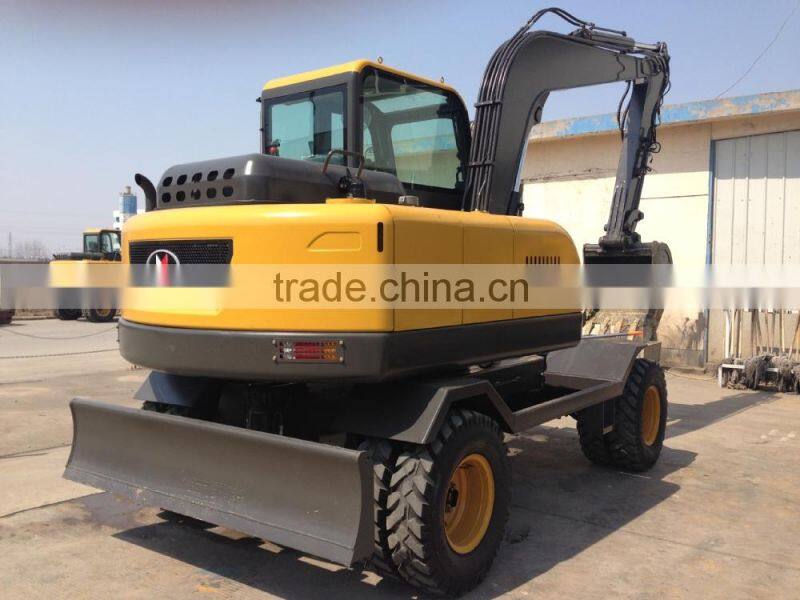

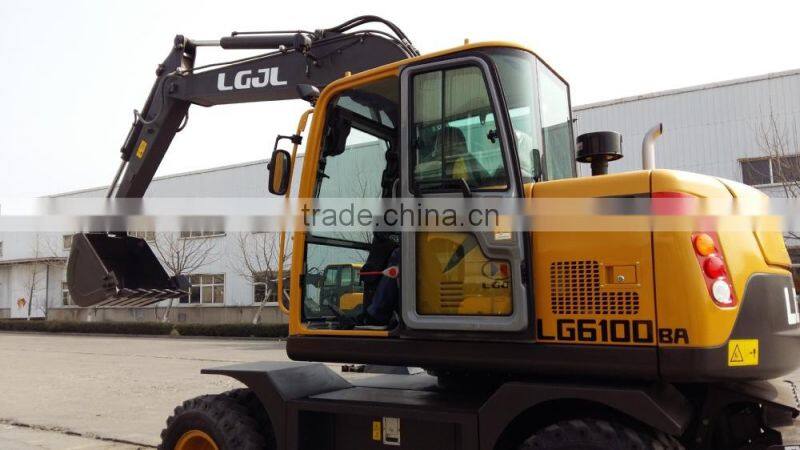

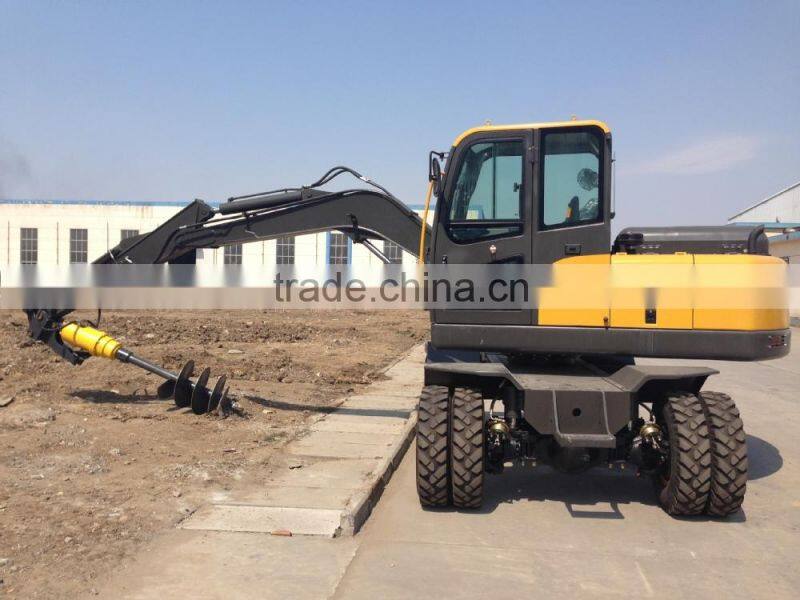

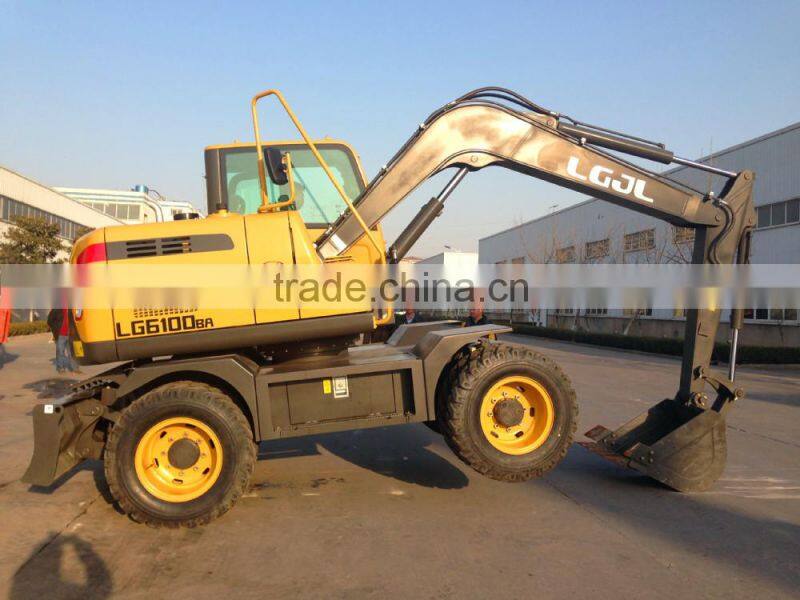

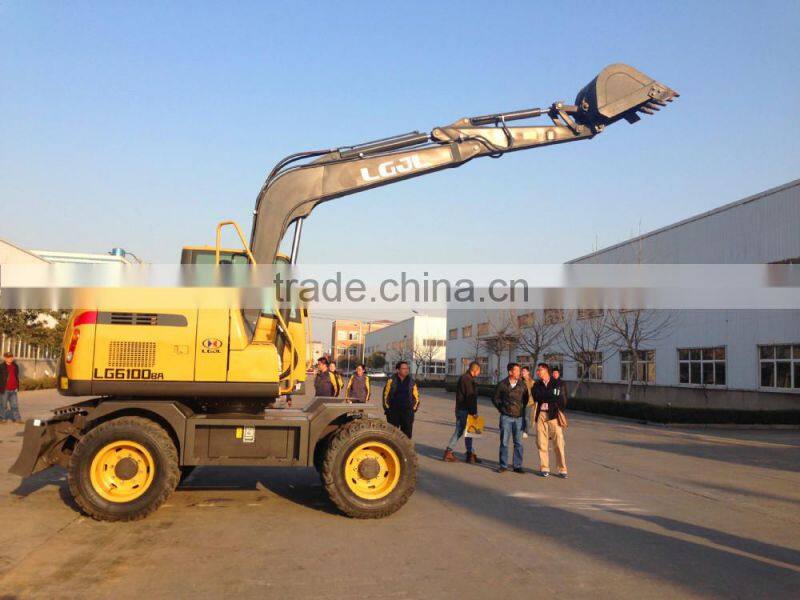

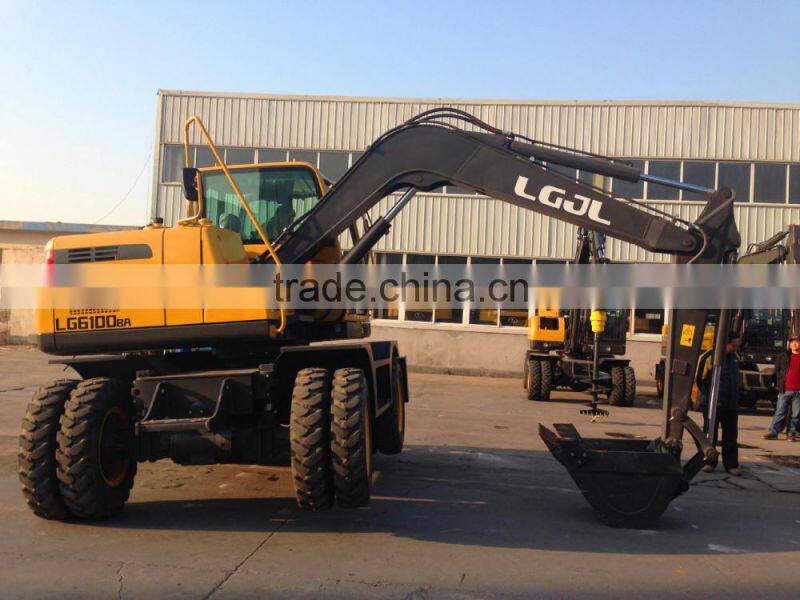

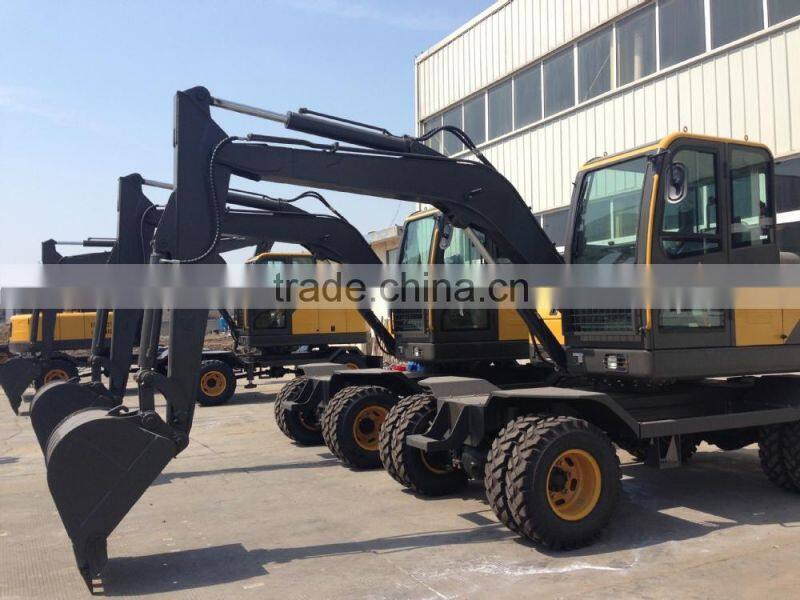

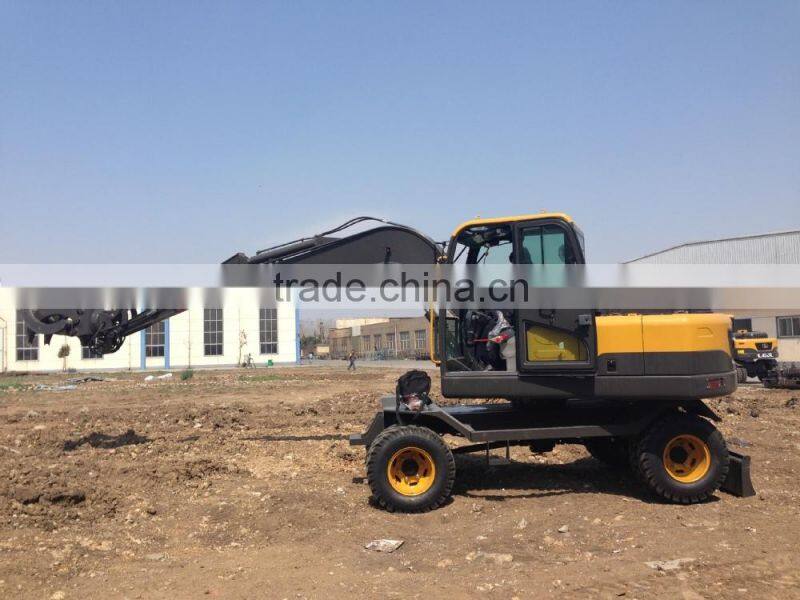

Excavator Hydraulic Control Valve,Wheel Excavator,Excavator for Sale,Excavator,10T Excavator,Material Handlers Excavator
Working device:
Reinforced movable boom, arm and bucket provide the entire machine with stronger ability to adapt to bad operating condition.
Hydraulic system:
Germany Rexroth hydraulic system is applied and will operate different actuating components precisely independently of any load; as a result, it is easy and comfortable to use with excellent micro-control.
Electric system:
There is color liquid monitor, which owns features of self check, monitor and emergency failure warning and perfect man-machine interaction. Moreover, there is electrically controlled software with higher reliable configuration than ordinary one.
Transmission system:
The CARRARO reinforced drive axle applied enables retionally-distributed load, uniform stress, reliable performance and longer service life; and the electro-hydraulic shifting transmission ensures reliable performance, and easy and flexible operation.
Welding structure:
The super strength structure optimized by computer and analyzed by three dimension finite elements, welded with low alloy, key parts adopting the high strength steel piate, makes the machine to adapt to harsh operating conditions.
Cab:
The cab is spacious and bright and of wide visual field, good sealing effect, linkage suspended seat. Silicone oil rubber three-stage damper is also provided, with good damping effect, which ensures a comfortable driving environment.
Covering parts:
Three-door steel engine hood is sturdy and durable, convenient repair personnel to enter all the key check point, and of better maintenance of the engine.
Engine:
Original Yanmar engine is powerful, economical, efficient, and provides high working efficiency.
|
Item |
Specifications |
1 |
Model |
LG6100BA |
2 |
Operating weight |
9500KG |
3 |
Volume of Bucket |
0.38M3 |
4 |
Engine model |
YANMAR 4TNV98T |
5 |
Power |
53.1Kw/2200r/min |
6 |
Fuel Tank |
135L |
7 |
Travel Speed |
28Km/h(9Km/h) |
8 |
Swing Speed |
12r/min |
9 |
Gradeability |
35 |
10 |
Bucket digging force |
66KN |
11 |
Hydraulic pump model |
A11VO75 |
12 |
Maximum flow |
160L/min |
13 |
Pressure |
26.5Mpa |
14 |
Hydraulic oil tank |
150L |
15 |
Overall length |
6340mm |
16 |
Overall width |
2400mm |
17 |
Machine height |
2800mm |
18 |
Total height |
2960mm |
19 |
Ground clear ance bob-weight |
1200mm |
20 |
Min. ground clearance |
430mm |
21 |
Rear-end seing radium |
1895mm |
22 |
Wheel shaft diameter |
2420mm |
23 |
Tyre gauge |
1290mm |
24 |
Tyre width |
259mm |
25 |
Table width |
2255mm |
26 |
Max. Digging height |
7516mm |
27 |
Max.dumping height |
5310mm |
28 |
Max. digging depth |
3860mm |
29 |
Max. vertical wall digging depth |
3502mm |
30 |
Max. digging reach |
6330mm |
31 |
The largest mining in stopping distance |
5900mm |
32 |
Min. swing radius |
1850mm |
33 |
Minimum turning radius at maximum height |
4993mm |
34 |
Arm length |
1650mm |
35 |
Boom length |
3710mm |
36 |
Boom cylinder bore*stroke at piston rod |
Φ115*Φ75*Φ850 |
37 |
Arm cylinder bore*stroke at piston rod |
Φ100*Φ60*Φ865 |
38 |
Bucket cylinder bore*stroke at piston rod |
Φ90*Φ55*Φ710 |
