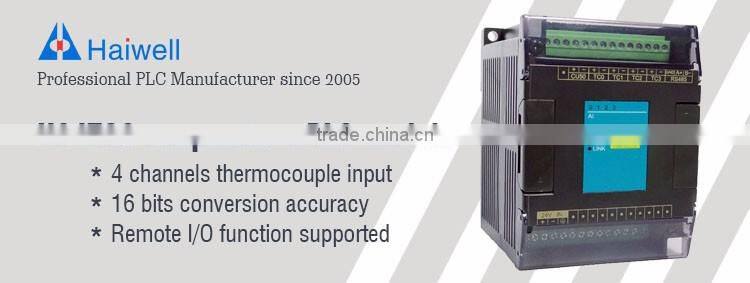

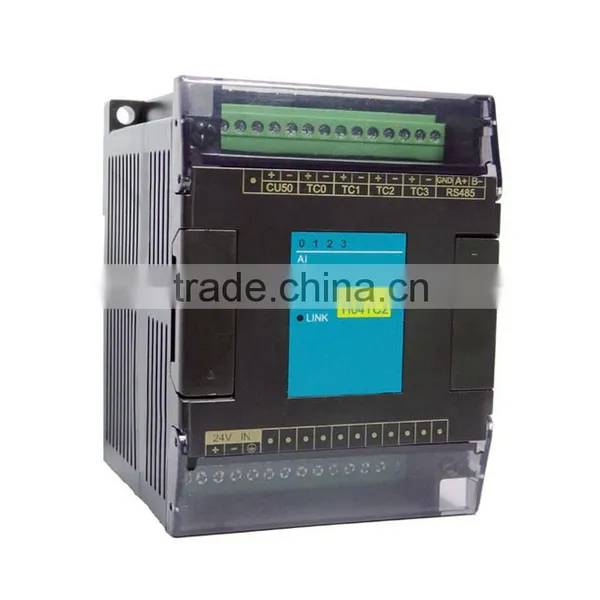

Haiwell H04TC2 16bit PLC expansion module for agraculture temperature control
Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.
It is the first PLC (Programmable logic controller) designed with 100% built-in simulator from China.
Very easy to study and use! It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.
PLC Model |
Power |
AI |
Conversion Accuracy |
Communication |
Haiwell series |
H04TC2 |
220V AC |
4 thermocouple |
16bit |
RS485, supports remote IO functions |
Temperature module |
Haiwell PLC Analog Input (AI) Specification
Item |
Voltage Input |
Current Input |
RTD Input |
Thermocouple Input |
||||
Input range |
-10V~+10V |
0V~+10V |
0V~+5V |
1V~+5V |
0~20mA |
4~20mA |
Pt100, Pt1000, Cu50, Cu100 |
S, K, T, E, J, B, N, R, Wre3/25, Wre5/26, [0-20]mV, [0-50]mV, [0-100]mV |
Resolution |
5mV |
2.5mV |
1.25mV |
1.25mV |
5uA |
5uA |
0.1℃ |
0.1℃ |
Input impedance |
6MΩ |
250Ω |
6MΩ |
6MΩ |
||||
Max input range |
±13V |
±30mA |
|
±5V |
||||
Input indication |
LED light means normal , dark means break OFF |
|||||||
Response time |
5ms/4 Channel |
560ms/4 Channel ,880ms/8 Channel |
||||||
Digital input range |
12 bits, Code range: 0~32000(H series module 16 bits A/D convert) |
16 bits, Code range: 0~32000 |
||||||
Precision |
0.2% F.S |
0.1% F.S |
||||||
Power supply |
MPU use internal power supply, Extension module use external power supply 24VDC ±10% 5VA |
|||||||
Isolation mode |
Opto-electric isolation, Non-isolation between Channel ,between analog and digital is opto-electric isolation |
|||||||
Power consumption |
24VDC ±20%,100mA(Max) |
24VDC ±20%,50mA(Max) |
||||||
HaiwellHappy is a Free for download PLC software. Complied with IEC 61131-3 standard. It supports 100% built-in simulator, and LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages.
Runing with Windows 98, Windows 2000, Windows XP and the newer versions.
Extend modle are designed with built-in communication port, supports parallet bus and serial bus networking. When using as serial bus as a remote modules, it is runing without I/O points limitation from the host systems, can be installed as distributed.
All Haiwell PLC products support 24months warranty.
Shipment within 5 workdays after payment received.
