Haiwell H08RC2 16bits PLC expansion temperature control module for coal mine

Name: Haiwell H08RC2 16bits PLC expansion temperature control module for coal mine
Brand: Haiwell PLC
Availability: InStock

FOB Price

USD $200 - $375 / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Xiamen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	Haiwell PLC
Model Number	H08RC2

Product Description

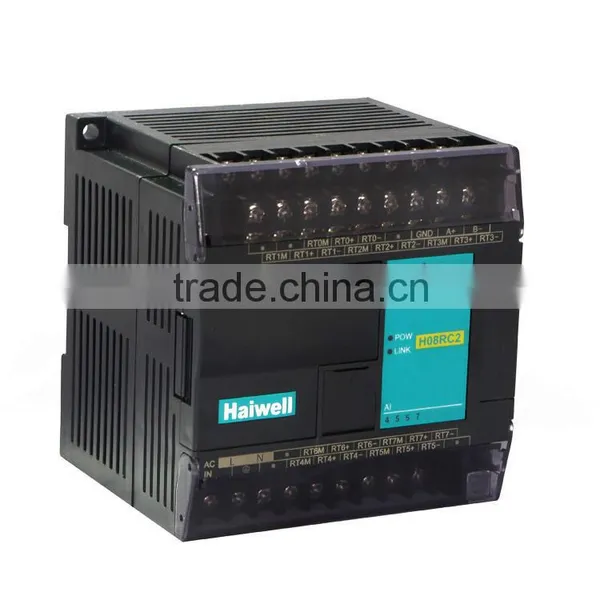

Haiwell H08RC2 16bits PLC expansion temperature control module for coal mine

Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.

It is the first PLC (Programmable logic controller) designed with 100% built-in simulator from China.

Very easy to study and use! It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.

PLC Model Spec.

PLC Model	Power	AI	Conversion Accuracy	Communication	Haiwell series
H08RC2	220V AC	8 thermal resistance	16bit	RS485, supports remote IO functions	Temperature module

Haiwell PLC Analog Input (AI) Specification

Item	Voltage Input				Current Input		RTD Input	Thermocouple Input
Input range	-10V~+10V	0V~+10V	0V~+5V	1V~+5V	0~20mA	4~20mA	Pt100, Pt1000, Cu50, Cu100	S, K, T, E, J, B, N, R, Wre3/25, Wre5/26, [0-20]mV, [0-50]mV, [0-100]mV
Resolution	5mV	2.5mV	1.25mV	1.25mV	5uA	5uA	0.1℃	0.1℃
Input impedance	6MΩ				250Ω		6MΩ	6MΩ
Max input range	±13V				±30mA			±5V
Input indication	LED light means normal , dark means break OFF
Response time	5ms/4 Channel						560ms/4 Channel ,880ms/8 Channel
Digital input range	12 bits, Code range: 0~32000(H series module 16 bits A/D convert)						16 bits, Code range: 0~32000
Precision	0.2% F.S						0.1% F.S
Power supply	MPU use internal power supply, Extension module use external power supply 24VDC ±10% 5VA
Isolation mode	Opto-electric isolation, Non-isolation between Channel ,between analog and digital is opto-electric isolation
Power consumption	24VDC ±20%,100mA(Max)						24VDC ±20%,50mA(Max)

Programming Software

HaiwellHappy is a Free for download PLC software. Complied with IEC 61131-3 standard. It supports 100% built-in simulator, and LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages.

Runing with Windows 98, Windows 2000, Windows XP and the newer versions.

PLC Advantages

Haiwell Expansion modules are designed with built-in communication ports, support parallet bus and serial bus networking. When using as serial bus as a remote modules, it is runing without I/O points limitation from the host systems, can be installed as distributed.

Haiwell PLC Warranty

All Haiwell PLC products support 24months warranty.

Shipment within 5 workdays after payment received.
