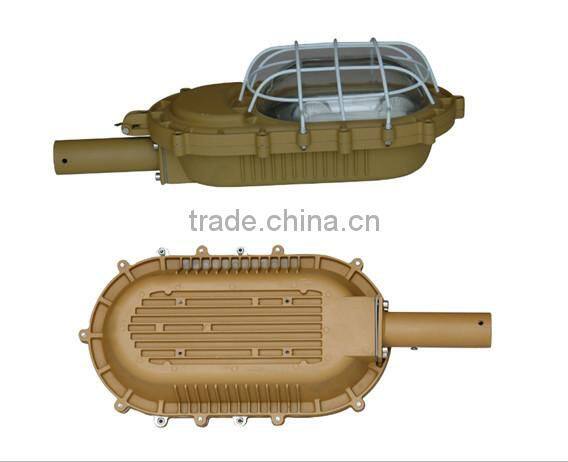

Energy-saving Lightings Explosion-proof

Energy-saving Lightings Explosion-proof photo-1
US$ 70 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Light Source:
Induction Lamps
Input Voltage(V):
220v-240v
Lamp Power(W):
60
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai chongqing
Delivery Detail:
Delivery time depends on order quantity.
Light Source Induction Lamps
Input Voltage(V) 220v-240v
Lamp Power(W) 60
Lamp Luminous Flux(lm) 80
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, 2700K-6500K all kinds of color
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 100000
IP Rating IP65
Certification CCC, CE, FCC, LVD
Lamp Body Material Other, Aluminum Toughened Glass
Place of Origin China
Brand Name Sonight Lighting
Model Number SND1101

 Explosion-proof light



Specification



SND1101
 Specifications             Watt40W50W60W
Light Source:Low frequency induction lamp circular series
Materials:Die-casting aluminum
Luminous Efficiency: 80lm-90lm/W
Frequency:230KHz
Explosion-proof  rating:Exe II T5
Working voltage:220V/85V-277V AC100-120V  50HZ/60HZ
Working temperature:(℃)minus 40 to 50 plus
Color rendering Index (Ra):≥80
Power Factor:0.95-0.98
Color temperature:2700k-6500k
Lifespan: ≥100000hours
corrosion-proof grade: WF2(corrosion-proof)
IP rated: IP65
Installation : Suspended,ceiling mounting,pole
Rated light luminaires:(lm)320040004800
Package Dimension:(mm)490*260*190
Application:Explosiveness or combustible dust indoor light or emergency lighting









Selling Points

          explosion-proof light series



  • 5 years' warranty
  • Long lifespan:≥10,0000h
  • Cheaper price&Better luminous efficiency than big watt led lights
  • radiation angle(360°),can reduce/cut the No.of lamp to save electricity bill&cost
  • Slow&Low light decay,30% decrease over 6,0000 hours
  • 23W-400W,Specialy used in place which is high,dangerous and difficult to install&maintain
  • The newst technology products ,Passed EMC,ROHS,CCC,CB,CE,TUV,PSE,SAA....
  • Simple structure(Ballast-lamp housing-reflector-light source):easy to maintanence and installation







               SND1101

            explosion-proof light series



 Energy-saving Lightings Explosion-proof











 Energy-saving Lightings Explosion-proof



Fixtures' Ex Type is compound type or Dust explosion proof.

Body is made by Die-casting Alu,modern design,beautiful and generous.

Casting material are High tensile strength Alu,low copper content,and surface sprayed by Polyester Powder.

Excellent corrosion resistance performance.long lifespan.

Explosion-proof:Exe Ⅱ  BT6/T5

Corrosion-proof:WF2

Dust Ignition-proof:DIP A20 TA.T6/T5







                                                                                    SND1101

  explosion-proof light series

 Energy-saving Lightings Explosion-proof





with 40w 50w 60w rectangle induction lamps from Sonight company.Featured with high luminous efficiency.long life,good CRI,downy light,stable light output.etc.







 SND1101

  explosion-proof light series



 Energy-saving Lightings Explosion-proof











input  Power Line use internal pressure seal structure,Avoid wire winding during installing.Combined with rubber sealing ring,have good protection class.

Fixture use Prismatic toughened glass,High shock resistance,high luminousness.





 Application:  Explosiveness or combustible dust indoor light or emergency lighting.
