three phase dry type autotransformer SG 120KVA
SG/SGG dry type transformer
1.Porducts introduction
Dry type transformer with high quality materials and advanced technology production, can be directly installed in different kind of load usage. Dry type transformer is divided into SG autotransformer and SGG isolation transformer .
The autotransformer is a single ring type transformer. It is applied in the case when the voltage need to be change and no the necessity of the isolation to the place.
The isolation transformer is a double winding transformer. In the power grid,it not only has the function of transformer, but also can be isolated safely from the input and output windings in electrical in order to to avoid the dangerous which is come from the touching between the charged body and place at the same time. It can isolate the three harmonic which caused by the power grid. It can protect the machine being hot and prevent the life reducing of insulation material. In one word, it can play a certain inhibition to the various disturbance.
2.Function featuer
- The internal core is using 0.35MM thick silicon steel sheet and high temperature-resistance glass envelope which has the propery of low loss, high efficiency.
- The internal insulation method adopts the class B /H insulation. It is a kind of import high temperature-resistance insulation material . It has the high coefficient to the insulation and heat resistance. And so the transformer can be sued more longer.
- It's of reasonable design, beautiful appearance, small footprint, movable casters, mobile installation.
3.Application
It's used for CNC machines and all kinds of equipments, can be applied to such power transmission and distribution places like underground railway , high building, commercial center, airport, station, wharf, enterprise, tunnel,mining industry and the power station etc, all the sites need to change voltage level and isolated for safety . It is mainly used in power supply occasions of AC 50~60Hz and voltage less than 600V. All the input and output voltage, connection group and capacity of coil winding can be designed and produced according to users’ requirements.
1.Coil construction: isolated or autotransformer
2. Insulation resistance:100M OHM(DC500V)
3. Insulation grade: B grade
4. Effective rate: more than 98%
5. Frequency: 50~60HZ
6. Rated voltage: input 3phase 380V,output 3 phase 220V/200V(can be customized)
7. Capacity: 3KVA - 500 KVA(can be customized)
8. Working noise:unload ≤45DB ,load≤50DB
9. Phase voltage difference:<1%
10. Working environment: -15 ℃ and 40 ℃
11. Humidity: 95%
12. Cooling mode: dry winding cooling .
13.Output waveform distortion: <0.1%
| Model | Capacity | Input voltage | Output voltage | LxWxH (CM) | Weight(KG) | ||
| SG-3 | 3KVA | 380V | 220V/200V | 380*260*280 | 20KG | ||
| SG-5 | 5KVA | 380V | 220V/200V | 380*260*280 | 32KG | ||
| SG-7 | 7KVA | 380V | 220V/200V | 440*320*330 | 35KG | ||
| SG-10 | 10KVA | 380V | 220V/200V | 440*320*330 | 42KG | ||
| SG-15 | 15KVA | 380V | 220V/200V | 440*320*330 | 55KG | ||
| SG-20 | 20KVA | 380V | 220V/200V | 500*360*400 | 78KG | ||
| SG-30 | 30KVA | 380V | 220V/200V | 500*360*400 | 95KG | ||
| SG-40 | 40KVA | 380V | 220V/200V | 580*420*450 | 135KG | ||
| SG-50 | 50KVA | 380V | 220V/200V | 580*420*450 | 145KG | ||
| SG-60 | 60KVA | 380V | 220V/200V | 580*420*450 | 155KG | ||
| SG-80 | 80KVA | 380V | 220V/200V | 650*500*550 | 205KG | ||
| SG-100 | 100KVA | 380V | 220V/200V | 650*500*550 | 235KG | ||
| SG-150 | 150KVA | 380V | 220V/200V | 800*600*650 | 350KG | ||
| SG-200 | 200KVA | 380V | 220V/200V | 800*600*650 | 400KG | ||
| SG-250 | 250KVA | 380V | 220V/200V | 850*750*900 | 500KG | ||
| SG-300 | 300KVA | 380V | 220V/200V | 850*750*900 | 600KG | ||
| SG-400 | 400KVA | 380V | 220V/200V | 1000*800*1300 | 650KG | ||
| SG-500 | 500KVA | 380V | 220V/200V | 1000*800*1300 | 850KG | ||
6.Specification for isolated transformer
| Model | Capacity | Input voltage | Output voltage | LxWxH (CM) | Weight(KG) | ||
| SGG-3 | 3KVA | 380V | 220V/200V | 440*320*330 | 40 | ||
| SGG-5 | 5KVA | 380V | 220V/200V | 440*320*330 | 45 | ||
| SGG-10 | 10KVA | 380V | 220V/200V | 440*320*330 | 60 | ||
| SGG-15 | 15KVA | 380V | 220V/200V | 500*360*400 | 90 | ||
| SGG-20 | 20KVA | 380V | 220V/200V | 580*420*450 | 130 | ||
| SGG-30 | 30KVA | 380V | 220V/200V | 580*420*450 | 165 | ||
| SGG-40 | 40KVA | 380V | 220V/200V | 650*500*550 | 215 | ||
| SGG-50 | 50KVA | 380V | 220V/200V | 650*500*550 | 245 | ||
| SGG-60 | 60KVA | 380V | 220V/200V | 650*500*550 | 285 | ||
| SGG-70 | 70KVA | 380V | 220V/200V | 800*600*650 | 345 | ||
| SGG-80 | 80KVA | 380V | 220V/200V | 800*600*650 | 375 | ||
| SGG-100 | 100KVA | 380V | 220V/200V | 800*600*650 | 425 | ||
| SGG-120 | 120KVA | 380V | 220V/200V | 850*750*900 | 500 | ||
| SGG-150 | 150KVA | 380V | 220V/200V | 850*750*900 | 580 | ||
| SGG-200 | 200KVA | 380V | 220V/200V | 1000*800*1300 | 700 | ||

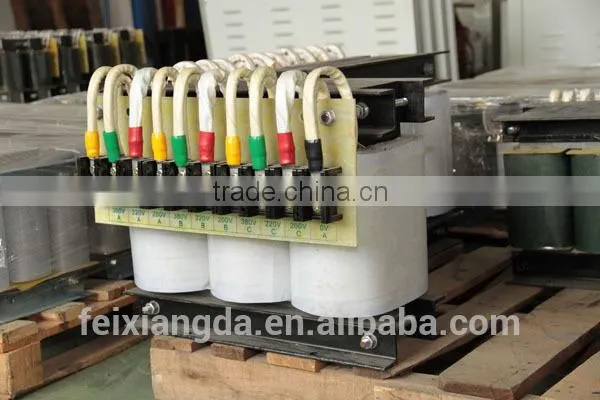

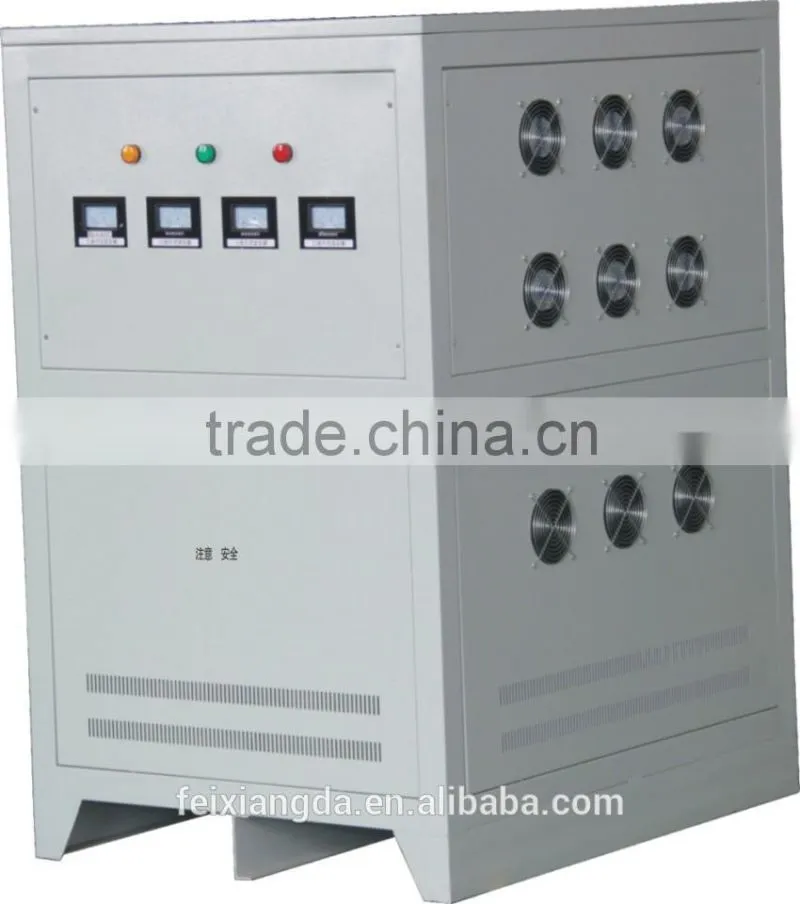

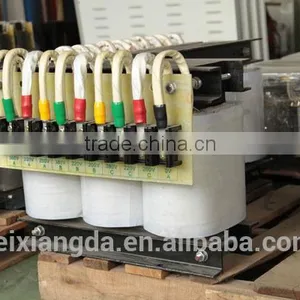

7.Product pictures
ShenZhen FeiXiangDa Electrical Co.,Ltd specialized in manufacturing and selling various power supply products including precise and energy-efficient voltage stabilizer, transformer, voltage regulator, variable frequency power, DC power and UPS power supply etc…
Our company is integrated with R&D, design, manufacturing, marketing, and service, and was introduced by ISO9001 quality standard and 3C certifying for multi-products, we are supplying reliable, energy-efficient products and guarantee to different scopes covering OEM factory, minerals, telecommunications , finance, government, energy, traffic, medical, military, education etc.
Our company is based on honesty, loyalty and credibility, we always offer overall solution with professional technique, precise equipments and perfect service.
Certifications
Our partner
We service most domestic and oversea famous customers of transformer and receive high reputation for many years.Our products widely used in the follow machines and service our customers:
You can send your inquiry to MS. Ivy Wu through below ways
M:+86-18923857949 T:+86-755-27525435
Skype:ivy.wu.1
