3 Phase Isolated Transformer Three Phase 5KVA

3 Phase Isolated Transformer Three Phase 5KVA thumbnail-1
3 Phase Isolated Transformer Three Phase 5KVA thumbnail-2
3 Phase Isolated Transformer Three Phase 5KVA photo-1
3 Phase Isolated Transformer Three Phase 5KVA photo-2
US$ 10 - 10,000 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FEIXIANGDA
Model Number:
SGG-10
Contact Supplier Request Quote Chat Now
Shenzhen FeiXiangDa Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen or HongKong or can be choosed
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FEIXIANGDA
Model Number SGG-10
Usage Other, power, CNC machines,equipments
Phase Three
Coil Structure Other, Laminated,isolated or autotransformer
Coil Number Other, isolated or autotransformer

3 phase transformer





 SG/SGG dry type transformer



1.Porducts introduction

Dry type transformer with high quality materials and advanced technology production, can be directly installed in different kind of load usage. Dry type transformer is divided into SG autotransformer and SGG isolation transformer .



The autotransformer  is a single ring type transformer. It is applied in the case when the voltage need to be change and no the necessity of the isolation to the place.



The isolation transformer is a double winding transformer. In the power grid,it not only has the function of transformer, but also can be isolated safely  from the input and output windings in electrical in order to  to avoid the dangerous which is come from the touching between the  charged body  and place at the same time. It can isolate the three harmonic which caused by the power grid. It can protect the machine being hot and prevent the life reducing of insulation material. In one word, it can play a certain inhibition to the various disturbance.







2.Function featuer



  - The internal core is using 0.35MM thick silicon steel sheet and high temperature-resistance glass envelope which has the propery of low loss, high efficiency.

   -  The internal insulation method adopts the  class B /H insulation. It is a kind of import  high temperature-resistance insulation material . It has the high coefficient to the insulation and heat resistance. And so the transformer can be sued more longer.

   - It's of reasonable design, beautiful appearance, small footprint, movable casters, mobile installation.

  - The meter display on the panel can show the accurate volatege and so it's easy to read.


3.Application

It's used for CNC machines and all kinds of equipments, can be applied to such power transmission and distribution places like underground railway , high building, commercial center, airport, station, wharf, enterprise, tunnel,mining industry and the power station etc, all the sites need to change voltage level and isolated for safety . It is mainly used in power supply occasions of AC 50~60Hz and voltage less than 600V. All the input and output voltage, connection group and capacity of coil winding can be designed and produced according to users’ requirements.



4.Related Pameter:

1.Coil construction: isolated or autotransformer

2. Insulation resistance:100M OHM(DC500V)

3. Insulation grade: B grade

4. Effective rate: more than 98%

5. Frequency: 50~60HZ

6. Rated voltage: input 3phase 380V,output 3 phase 220V/200V(can be customized)

7. Capacity: 3KVA - 500 KVA(can be customized)

8. Working noise:unload  ≤45DB ,load≤50DB

9. Phase voltage difference:<1%

10. Working environment: -15 ℃ and 40 ℃

11. Humidity: 95%

12. Cooling mode: dry winding cooling .

13.Output waveform distortion: <0.1%



5.Specification for autotransformer
Model Capacity Input voltage Output voltage LxWxH (CM) Weight(KG)
SG-3 3KVA 380V 220V/200V 380*260*280 20KG
SG-5 5KVA 380V 220V/200V 380*260*280 32KG
SG-7 7KVA 380V 220V/200V 440*320*330 35KG
SG-10 10KVA 380V 220V/200V 440*320*330 42KG
SG-15 15KVA 380V 220V/200V 440*320*330 55KG
SG-20 20KVA 380V 220V/200V 500*360*400 78KG
SG-30 30KVA 380V 220V/200V 500*360*400 95KG
SG-40 40KVA 380V 220V/200V 580*420*450 135KG
SG-50 50KVA 380V 220V/200V 580*420*450 145KG
SG-60 60KVA 380V 220V/200V 580*420*450 155KG
SG-80 80KVA 380V 220V/200V 650*500*550 205KG
SG-100 100KVA 380V 220V/200V 650*500*550 235KG
SG-150 150KVA 380V 220V/200V 800*600*650 350KG
SG-200 200KVA 380V 220V/200V 800*600*650 400KG
SG-250 250KVA 380V 220V/200V 850*750*900 500KG
SG-300 300KVA 380V 220V/200V 850*750*900 600KG
SG-400 400KVA 380V 220V/200V 1000*800*1300 650KG
SG-500 500KVA 380V 220V/200V 1000*800*1300 850KG



6.Specification for isolated transformer

Model Capacity Input voltage Output voltage LxWxH (CM) Weight(KG)
SGG-3 3KVA 380V 220V/200V 440*320*330 40
SGG-5 5KVA 380V 220V/200V 440*320*330 45
SGG-10 10KVA 380V 220V/200V 440*320*330 60
SGG-15 15KVA 380V 220V/200V 500*360*400 90
SGG-20 20KVA 380V 220V/200V 580*420*450 130
SGG-30 30KVA 380V 220V/200V 580*420*450 165
SGG-40 40KVA 380V 220V/200V 650*500*550 215
SGG-50 50KVA 380V 220V/200V 650*500*550 245
SGG-60 60KVA 380V 220V/200V 650*500*550 285
SGG-70 70KVA 380V 220V/200V 800*600*650 345
SGG-80 80KVA 380V 220V/200V 800*600*650 375
SGG-100 100KVA 380V 220V/200V 800*600*650 425
SGG-120 120KVA 380V 220V/200V 850*750*900 500
SGG-150 150KVA 380V 220V/200V 850*750*900 580
SGG-200 200KVA 380V 220V/200V 1000*800*1300 700

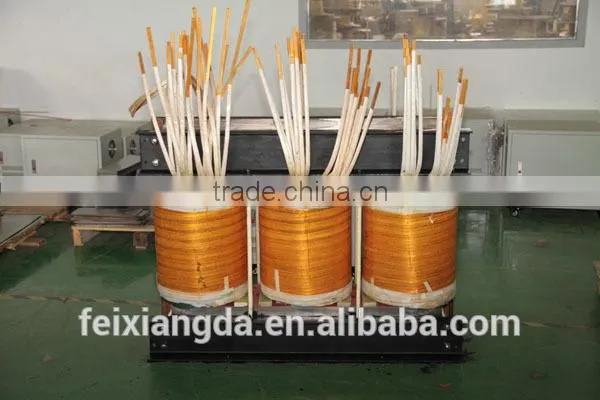

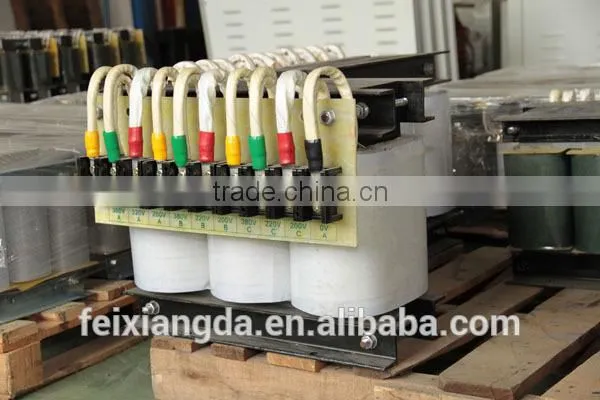

 7.Product pictures

3 phase isolated transformer three phase 5KVA3 phase isolated transformer three phase 5KVA3 phase isolated transformer three phase 5KVA

3 phase isolated transformer three phase 5KVA3 phase isolated transformer three phase 5KVA

Packaging & Shipping




 8.Company Information
3 phase isolated transformer three phase 5KVA

ShenZhen FeiXiangDa Electrical Co.,Ltd specialized in manufacturing and selling various power supply products including precise and energy-efficient voltage stabilizer, transformer, voltage regulator, variable frequency power, DC power and UPS power supply etc…



 Our company is integrated with R&D, design, manufacturing, marketing, and service, and was introduced by ISO9001 quality standard and 3C certifying for multi-products, we are supplying reliable, energy-efficient products and guarantee to different scopes covering OEM factory, minerals, telecommunications , finance, government, energy, traffic, medical, military, education etc.



Our company is based on honesty, loyalty and credibility, we always offer overall solution with professional technique, precise equipments and perfect service.





Certifications



  3 phase isolated transformer three phase 5KVA



Our partner



We service most domestic and oversea  famous customers of transformer and receive high reputation for many years.Our products widely used in the follow machines and service our customers:



3 phase isolated transformer three phase 5KVA
