Specifications
software gps tracker1.Remote control vehicle engine
2.With SOS panic button
3.Door,ACC,sensor alarm
4.Vehicle GPS
Google map online realtime tracking gsm gprs vehicle software gps tracker

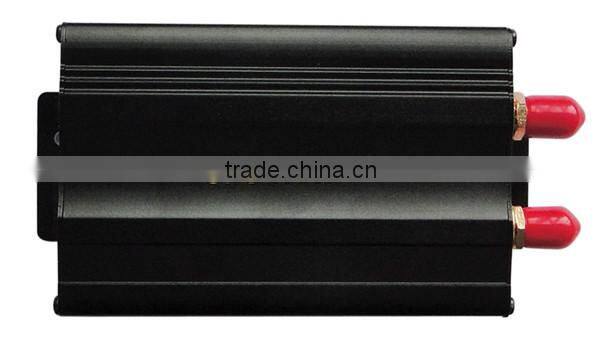

Model:TK103
*For vehicle (12V-24V)
*Dual simcard switch automatically
*ARM & DISARM, LOCK / UNLOCK BY SMS
*Location based service(LBS) + GPS double solution
*remote shutdown vehicle engine and resume.
*ARM & DISARM, LOCK / UNLOCK by remote controller
*Reset by SMS and Reset button.
*Track upon time and distance intervals
*Power save mode, less gprs traffic mode
*Automatic update positions of vehicle turns
*SOS,Geo fence, movement, overspeed, low battery,power off and gps blind spot alert.
*Door alarm, ACC alarm,shock sensor alarm, fuel alarm
*Configure parameters by USB
*SMS tracking on cellphone with google maps link.
*Get aboslute address including street name by sms.
*Free PC based software for live tracking.
*Web based online tracking server.
..........................................................................................................................
| Content |
Specifications
|
| DIM. |
87*54*26mm
|
| Weight |
130g
|
| Network |
GSM/GPRS
|
| Band |
850/900/1800/1900Mhz
|
| GPS Module |
SIRF3 chip
|
| GPS Sensitivity |
-159dBm
|
| GPS Accuracy |
5m 5%--95% non-condensing
|
| GPS Start time |
Cold status 45s Warm status 35s Hot status 1s |
| Voltage of car power system |
12 V -24V
|
| Backup battery |
Chargeable 3.7V 500mAh Li-ion battery
|
| Storage Temp. |
-40°C to +85°C
|
| Operation Temp. |
-20°C to +65°C
|
| Humidity |
5%--95% non-condensing
|
......................................................................................................................................................................................................
................................................................................................................................................................................................

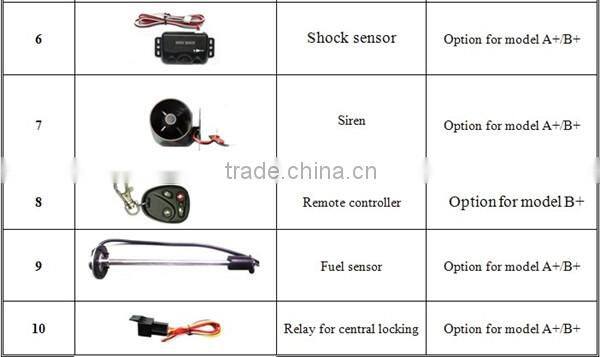

Optional Accessories:
.................................................................................................................
Packaging:
......................................................................................................................
Shipping:
Simple faults and the solutions:
| Faults | Solution |
| Startup Fail | Please check out the power wiring in correct place. |
| Call Fail |
Check the GSM antenna connected. Check whether the SIM card in place. Check whether the normal power supply voltage. |
| Hang up Fail | In existence of an authorized number, an unauthorized number dials up the unit. Please initialize the unit and re-set up the authorized numbers. |
| Monitor Fail | Check if the authorized number is setup |
|
Location report in digits of zeros. |
Check out if the GPS external antenna well. |
......................................................................................................................................................................
Factory Show:
....................................................................................
..........................................................................................................................................
Leading Time:
For sample order, it cost about 3 to 5 days.
For big order, it will cost about 15 to 30 days.
The above information is just for your reference. Pls confirm with us to confirm the final leading time.
Thanks in advance.
...........................................................................................................................................
My friend, your inquiry will be replied within 24 hours.
You are welcome to contact us at anytime.
............................................................................................................................................
Dear friend, if our Vehicle GPS Tracker can not meet your need, we still have other choices for you. You must can find some one that you like.
