Specifications
Max.rated loading: 100KNMax.displacement distance for screw plate: 200mm
Merchanical speed: high 50mm/min, low 1mm/min

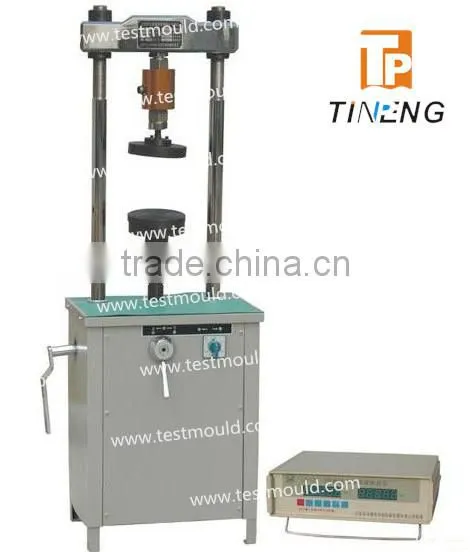

MQS-2 Pavement Materials Strength Tester
Applications:
This machine is used for CBR Test, Unconfined Strength Test, Elastic Modulous Test for Pavement Material.
This pavement materials strength Testing Machine can also test all kinds of adhesive materials and stabilized
soil specimen’s unconfined compression strength and indirect tensile strength, test CBR for soil and pavement materials, test asphalt mixture’s hot stability and anti-plastic flowstability and flow value. It also can be used for other tests which need to put on vertical loading.
Adjustable flat top plate can automatically ascend and descend to leveling.
Features:
Have inhibiting device.
The exposed part of turn screw have protective cover, it can avoid the screw exceed the position and take off in operation, and avoid the screw be jammed by other materials as well.
Technical Specifications:
Max.rated loading: 100KN
Max.displacement distance for screw plate: 200mm
Merchanical speed: high 50mm/min, low 1mm/min
Manual Speed: 1/6mm/each cycle of crank
Motor specification: 550W, 140r/min
Dimension: 507x430x1390mm
Weight: approx 120kg
