Specifications
Car rearview system2.5inch rearview mirror monitor
120 view angle CMOS camera with night vision

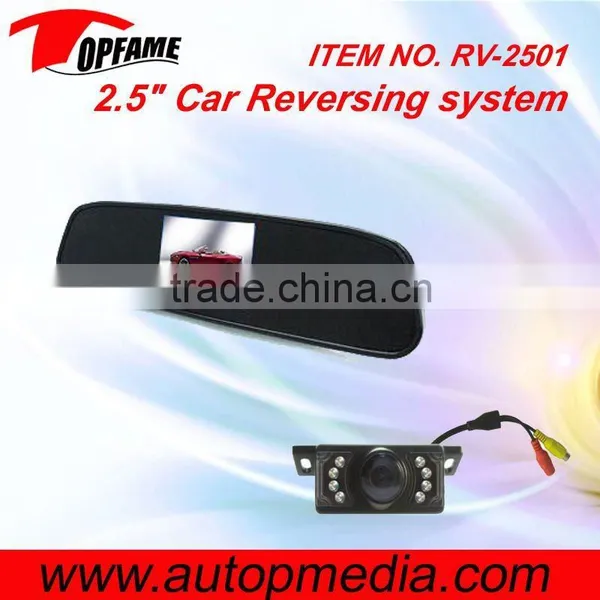

RV-2501 Car rear view system
2.5-inch digital LCD show rear view image by camera
Mirror function: clip on the exist rear view mirror
It can connect with VCD and DVD signal
Specification:
Voltage: 9 to 15V DC (OR 24V)
1 Video input, (2video optional)
Video frequency: NTSC/PAL
Auto switch
Screen size: 2.5-inch digital LCD
Resolution: 320 x 240
Working temperature: -20 to +70 degrees C
Display size: 29 x 7.5 x 2cm
Camera
Image Sensors: 1/4", 1/3" OV7950, OV7949 TV System:NTSC
waterproof rate:Ip67
Effective Pixels:656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=1.8mm / F = 2.0
Lens Angle:120°/170°
Vertical Sync. Frequency:60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤120mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Dimension:15x35X28mm
Weight:50g
