Specifications

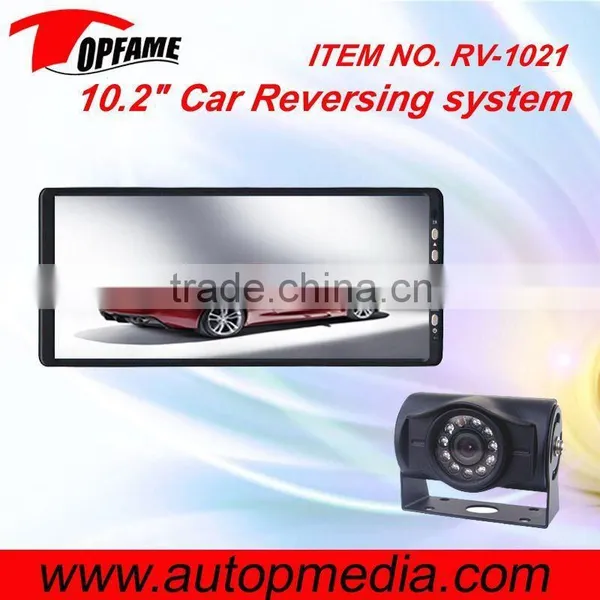

car reverse parking system10.2inch rearview mirror monitor
120 view angle CCD/CMOS camera with night vision
RV-1021 car reverse parking system
Screen: (16:9/(4:3)
Resolution degree:640(W)xRGBx480(H)
PAL/NTSC compatible
Dual video input(V1/V2)
Can be connected with camera for safer parking
Rearview image auto display
Full function remote control
Power supply : DC12V
Operating temperature:-10oC~60oC
Camera spec
Image Sensors: 1/3" 1/4" Sharpe CCD/CMOS
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels
Resolution:420TV lines
Minimum Illumination: 0.8Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.8mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V (24V optional)
Current Consumption:≤300mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MA
Dimension:720x63x42mm
Weight:350g
Package included:
10.2" TFT LCD mirror monitor x 1
Remote controller x 1
Color CMOS camera x 1
6m connection cable x 1
with split display function (3 section)optional
